18650 Batteries

What is an 18650 Battery?

The 18650 battery is a cylindrical, rechargeable lithium-ion (Li-ion) cell, named for its dimensions: 18mm in diameter and 65mm in length. Renowned for its high energy density, long cycle life, and consistent performance, the 18650 is one of the most widely used battery formats in modern electronics and energy systems. It serves as the foundation for many high-drain applications, from electric vehicles to industrial equipment.

Technical Overview

Chemistry Variants:

18650 batteries come in several Li-ion chemistries, each optimized for specific applications:

• Lithium Cobalt Oxide (LiCoO₂ - LCO): Offers high energy density, making it ideal for electronics, though it has lower thermal stability and discharge rates.

• Lithium Manganese Oxide (LiMn₂O₄ - LMO): Known for excellent thermal stability and safety, often used in power tools and medical devices.

• Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO₂ - NMC): Balances energy density, safety, and power output; commonly found in EVs and e-bikes.

• Lithium Iron Phosphate (LiFePO₄ - LFP): Delivers outstanding safety and cycle life (2000+ cycles), though with lower energy density; popular in solar and backup systems.

Voltage:

Nominal voltage is typically 3.6V or 3.7V, with a fully charged voltage of 4.2V and a cutoff (discharged) voltage between 2.5V and 3.0V, depending on chemistry.

Capacity:

Most 18650 cells range from 1200mAh to 3500mAh, with high-capacity models used for extended runtimes and lower-capacity cells favored in high-discharge applications.

Discharge Rate (C-Rating):

High-drain 18650s can support continuous discharge rates (CDR) of 10A to 30A or more, essential for demanding devices like power tools and electric vehicles.

Cycle Life:

Depending on usage conditions and cell type, an 18650 battery typically supports 300 to over 1000 full charge cycles, with premium cells (e.g., LFP) lasting significantly longer.

---

Protected vs. Unprotected Cells

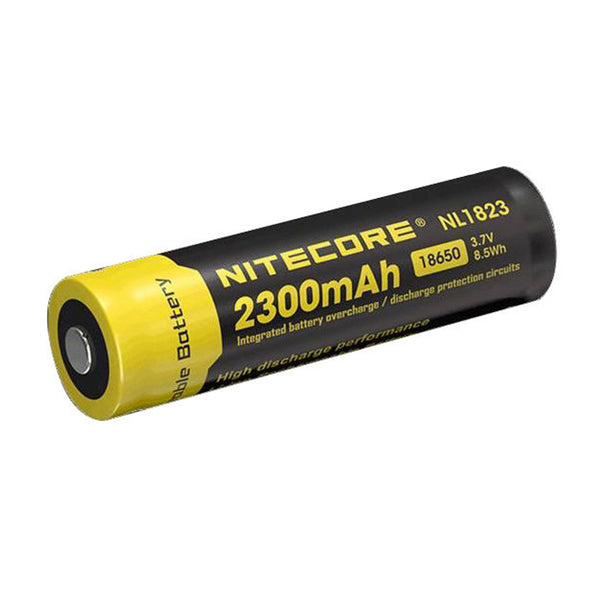

• Protected 18650 Batteries: Integrated with a protection circuit module (PCM) that safeguards against overcharging, over-discharging, and short-circuiting. These are slightly longer (~70mm) and are ideal for standalone consumer use.

• Unprotected 18650 Batteries: Lacking built-in protection, these are intended for use in battery packs with external Battery Management Systems (BMS), such as those in laptops or EVs.

---

Common Applications

The versatility of 18650 batteries makes them a staple across industries:

• Consumer Electronics: Laptops, high-powered flashlights, cameras, and power banks.

• Electric Vehicles & E-Bikes: Used extensively in modular battery packs; Tesla famously utilizes thousands of 18650 cells per vehicle.

• Power Tools: Cordless drills, saws, and industrial-grade equipment rely on high-discharge 18650s.

• Energy Storage: Integrated into home solar battery banks, UPS systems, and grid-scale storage due to their reliability and scalability.

---

Physical Variations

When selecting an 18650 battery, physical features can impact device compatibility:

• Button Top vs. Flat Top: Button tops have a raised positive terminal, suitable for certain devices; flat tops are standard in battery packs and tight enclosures.

• Protected vs. Unprotected: Protected cells are longer and ideal for consumer devices; unprotected cells require BMS-controlled environments.

---

Usage Tips

Always consult your device’s specifications before choosing an 18650 cell. Consider not just size, but also voltage, discharge rating, and protection features to ensure safety, compatibility, and optimal performance.
