Samsung 35E 18650 3500mAh 8A -Protected Button Top Battery

4.8 out of 5 · 142 reviews

Top Style: Button Top
Protected: Yes
Price:
$11.99
Stock:
In stock
Minimum QtyPrice per itemAdd to Cart
Buy 50 + $11.00
Buy 100 + $10.50
Buy 400 + $10.00

Most in-stock orders ship within 1 business day.

KEY SPECS · CELL INSIDE: SAMSUNG SDI INR18650-35E

SOURCE [1]
SIZE
Not stated by manufacturer
finished size · cell inside: Ø18.55 × 65.25 mm, max.
CAPACITY
Not stated by manufacturer typ.
3,350 mAh min.
0.2C to 2.65 V, 23°C
CURRENT
Not stated by manufacturer
protection board limit · cell inside: 8 A max. continuous, condition not stated by manufacturer
TEMPERATURE
−10 to 60 °C
cell inside · discharge · cell surface
cell inside · charge 0 to 45 °C · cell surface

Samsung INR18650-35E with a protection circuit and a button top added. An 18650 high-capacity cell: 3,350 mAh minimum at 0.2C and 8 A maximum continuous discharge [1]. Protected button-top cells are commonly required for flashlights, doorbells and other devices.

Samsung makes the cell. The protection circuit and the button top are added afterwards, so Samsung’s specification [1] describes the bare cell. Its ratings come first, copied as printed. The figures for the finished cell follow, as we list them.

Every rating, with its condition.

RATING VALUE CONDITION · SOURCE
Model code INR18650-35E as printed [1]
Capacity, standard 3,350 mAh minimum; 0.2C (680 mA) to 2.65 V after standard charge, 23 °C [1]
Capacity, rated 3,250 mAh minimum; 1C (3,400 mA) to 2.65 V after standard charge, 23 °C [1]
Capacity, typical Not stated by manufacturer [1]
Nominal voltage 3.60 V [1]
Max. continuous discharge 8 A “for continuous discharge”; no temperature or other condition printed [1]
Standard charge 1.7 A CC-CV to 4.2 V, 68 mA cut-off; 2.0 A maximum, “not for cycle life” [1]
Discharge cut-off 2.65 V end of discharge [1]
Charge temperature 0 to 45 °C cell surface [1]
Discharge temperature −10 to 60 °C cell surface [1]
Bare cell size Ø18.55 × 65.25 mm maximum, before the circuit and button top are added [1]

The finished cell, as we list it

ITEM VALUE NOTE
Protection circuit Two MOSFETs, cut-off at 10 A our listing, not a Samsung figure; the cell’s own rating stays 8 A continuous [1]
Size About Ø18.65 × 69.25 mm approximate; 4 to 6 mm longer than a flat-top, unprotected 18650

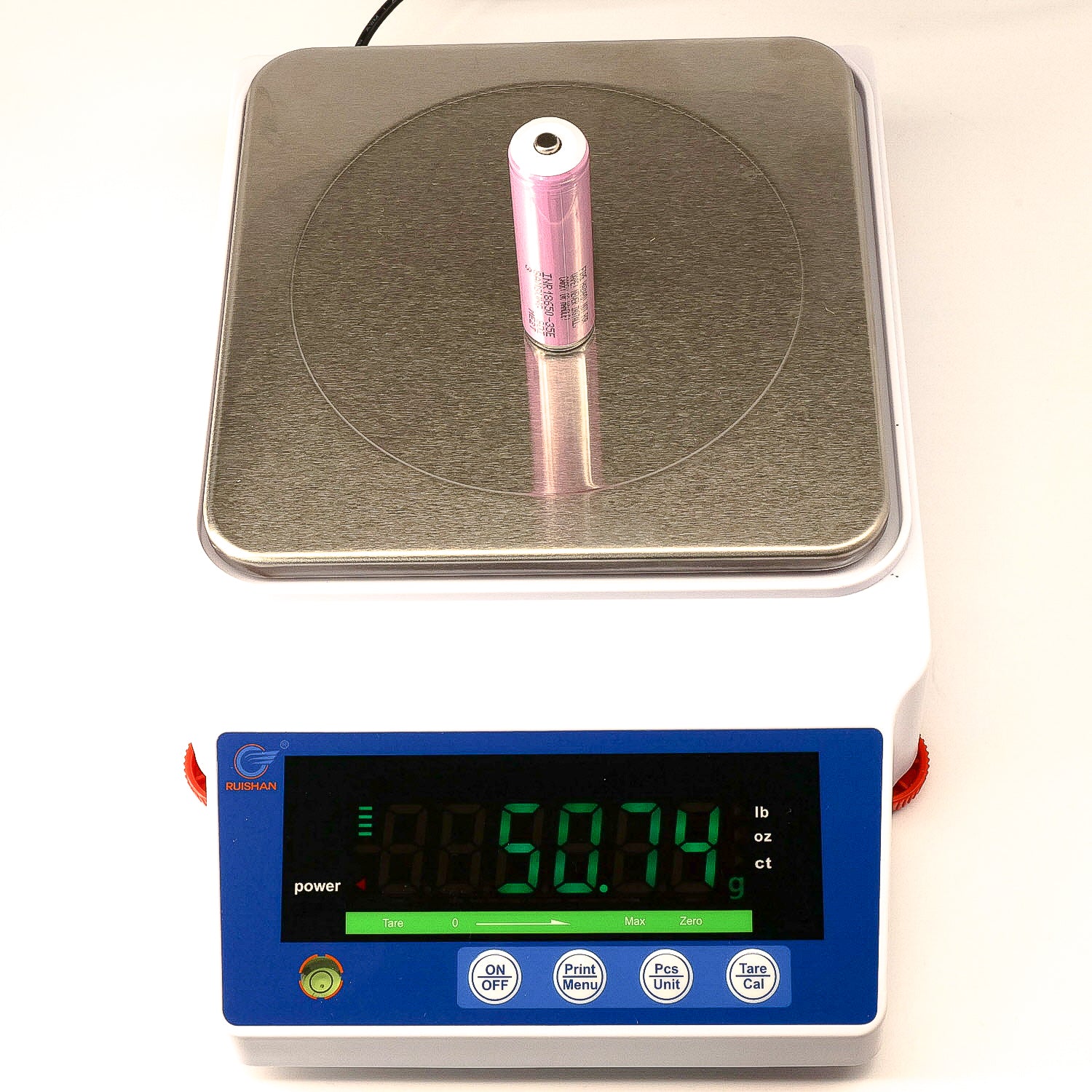

Mass About 50.74 g approximate
Terminal Button top as sold

The listing name says 3500mAh. Samsung rates the cell at 3,350 mAh minimum, and none of the Samsung documents we hold prints 3,500 mAh. The Samsung 35E flat-top page has every rating, the capacity tables and the sources in full.

Keep it inside its ratings.

  • Not for e-cigarettes, vaporizers or similar devices.
  • Protected, button top. Check that your device has room for a cell about 69.25 mm long.
  • The protection circuit is a backstop, not a rating. Plan for no more than 8 A continuous [1].
  • Charge on a lithium-ion (Li-ion) charger that stops at 4.2 V, between 0 and 45 °C at the cell surface [1]. Charge on a fire-resistant surface and never leave cells charging unattended.
  • Do not mix old and new, or used and unused cells.
  • Replace a torn wrap before use. Carry cells in a case, never loose.
  • Questions? Call 1-800-547-3050 or text 1-833-419-2192 to ask a person.

Source

[1] Samsung SDI, Specification of Product, Model INR18650-35E, Spec. No. INR18650-35E, Ver. 1.1, July 9th, 2015 (as printed); marked “Tentative” on every page. Documents for this cell are in our data-sheet library.
