KEY SPECS · MOLICEL INR-18650-P26A

SOURCE [1]
SIZE
Ø18.30 × 65.05 mm
nominal ±0.30 / ±0.15
CAPACITY
2,600 mAh typ.
2,500 mAh min.
0.52 A to 2.5 V, 23 °C
CURRENT
Not stated by manufacturer
continuous discharge
TEMPERATURE
−40 to 60 °C
discharge
charge 0 to 60 °C

[1] Approval Sheet, Cell Specifications of INR-18650-P26A (E-One Moli Energy Corp.), Rev. 1.2, on file since 2020-11-10

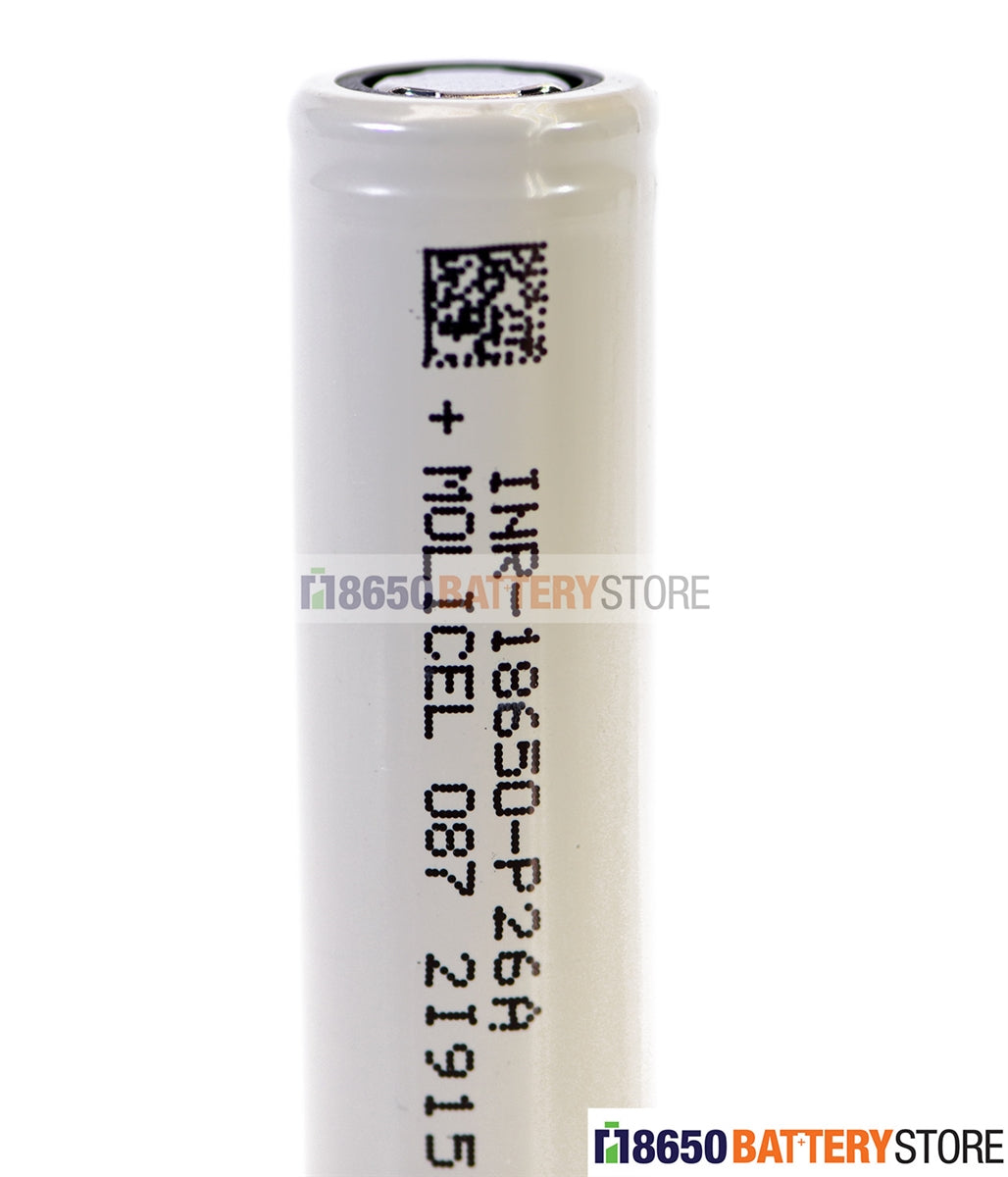

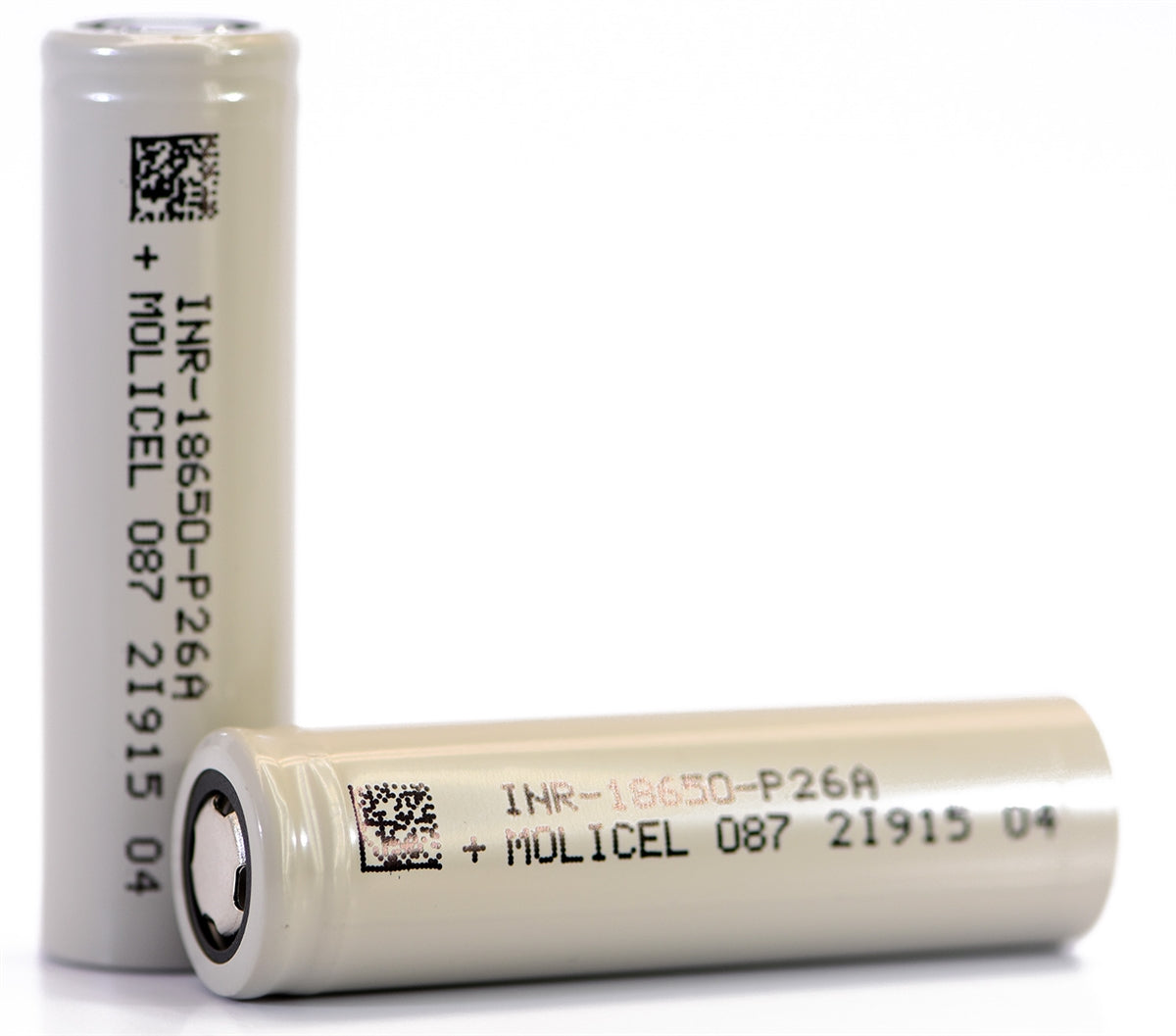

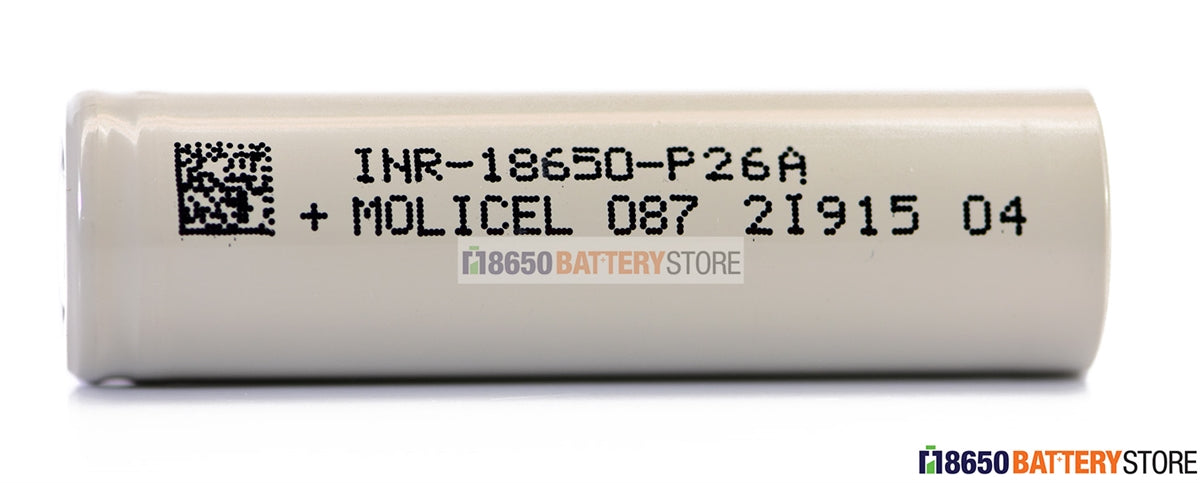

MOLICEL · 18650 · INR-18650-P26A

An 18650 lithium-ion cell rated 2.6 Ah (2,600 mAh) typical and 2.5 Ah minimum, from a 0.52 A discharge to 2.5 V after the rated charge at 23 °C, with a 35 A “Maximum discharging current” for which Molicel prints no condition [1]. Below: every rating with its condition, the minimums Molicel’s tables print, and what we calculated from them, so you can check each number.

CAPACITY2.6 Ahtypical, 2,600 mAh; 2.5 Ah minimum; 0.52 A to 2.5 V, 23 °C [1]
MAXIMUM DISCHARGE35 Ano condition printed; not called continuous [1]
MAXIMUM CHARGE6 Ano condition printed; rated charge 2.6 A, 90 min [1]
ENERGY9.36 WhSDS rating, 3.60 V × 2.60 Ah; 9.0 Wh minimum [2]
INTERNAL RESISTANCE≤ 20 mΩ“Fresh cell”, AC impedance at 1 kHz [1]
MASS48.0 gmaximum, “48.0 (Max)” [1]

A bare cell: a component for protected packs and devices built for it. Not for vaping. Charge on a lithium-ion (Li-ion) charger that stops at 4.2 V.

01SPEC PLATE

Every rating, with its condition.

Molicel’s rating document for this cell is an approval sheet, “Cell Specifications of INR-18650-P26A”, Rev. 1.2 of 2018 [1], issued by E-One Moli Energy Corp. to a customer for approval. Every page is marked confidential, so we quote it but don’t link it. Its ratings come first, copied as printed, then the minimums its tables print. The second plate holds our arithmetic, and facts from the safety data sheet (SDS) [2] and the UN38.3 transport test report [3]. Each row names its source or shows its formula.

SPEC PLATE · MOLICEL INR-18650-P26A SOURCE [1]
SPECIFICATION VALUE CONDITION · SOURCE
RATED · MANUFACTURER copied from the approval sheet [1] §2 and §4
MODEL CODE INR-18650-P26A as printed [1][3]; designation “INR19/66” [1] §2.3; the SDS prints “INR18650-P26A” [2]; the 2017 lab report prints “(ICR19/66)” after the model [4]
CAPACITY, TYPICAL 2.6 Ah “2.6Ah (Typical)”, 2,600 mAh: “Rated discharge capacity after rated charge.” [1] §4
CAPACITY, MINIMUM 2.5 Ah “2.5Ah (Minimum)”, 2,500 mAh; same condition [1] §4
RATED DISCHARGE 0.52 A “Constant 0.52A discharge until 2.5V at 23 oC.”; 0.2C on our basis [1] §4
RATED CHARGE 2.6 A “Limiting 2.6A and constant 4.2V charge for 1.5h or 50mA at 23 oC.”; charging time 90 min [1] §4
NOMINAL VOLTAGE 3.6 V “Mean voltage during rated discharge after rated charge.” [1] §4
END OF CHARGE VOLTAGE 4.20 V ± 0.05 V as printed; charged by the “constant current/constant voltage” method (CC-CV) [1] §4, §7.2.1
END OF DISCHARGE VOLTAGE 2.5 V “Discharge voltage for determination of rated capacity.” [1] §4
MAXIMUM CHARGING CURRENT 6 A no condition printed: its Remarks cell is blank [1] §4
MAXIMUM DISCHARGING CURRENT 35 A no condition printed: its Remarks cell is blank, and it is not called continuous [1] §4
CHARGE TEMPERATURE 0 to 60 °C “Operating temperature”, Charging; ambient or cell surface not stated [1] §4
DISCHARGE TEMPERATURE −40 to 60 °C Discharging; “-20 oC~-40 oC reduced discharge voltage.”; ambient or cell surface not stated [1] §4
INTERNAL RESISTANCE ≤ 20 mΩ “Fresh cell”, AC impedance at 1 kHz; state of charge not stated [1] §4
SHIPPING VOLTAGE ≥ 3.45 V “Nominal approximate state of charge ≤ 30%.” [1] §4
STORAGE, SHIPPED CELL < 35 °C “Recommended temperature less than 23 oC for long term storage.” [1] §4
SHELF LIFE 1 year “See Section 5.4.” [1] §4
DIAMETER 18.30 mm ± 0.30 mm [1] §2.4.2
HEIGHT 65.05 mm ± 0.15 mm [1] §2.4.2
MASS 48.0 g maximum, “48.0 (Max)”; no typical mass printed [1] §2.4.2
SHAPE Cylindrical [1] §2.4.1

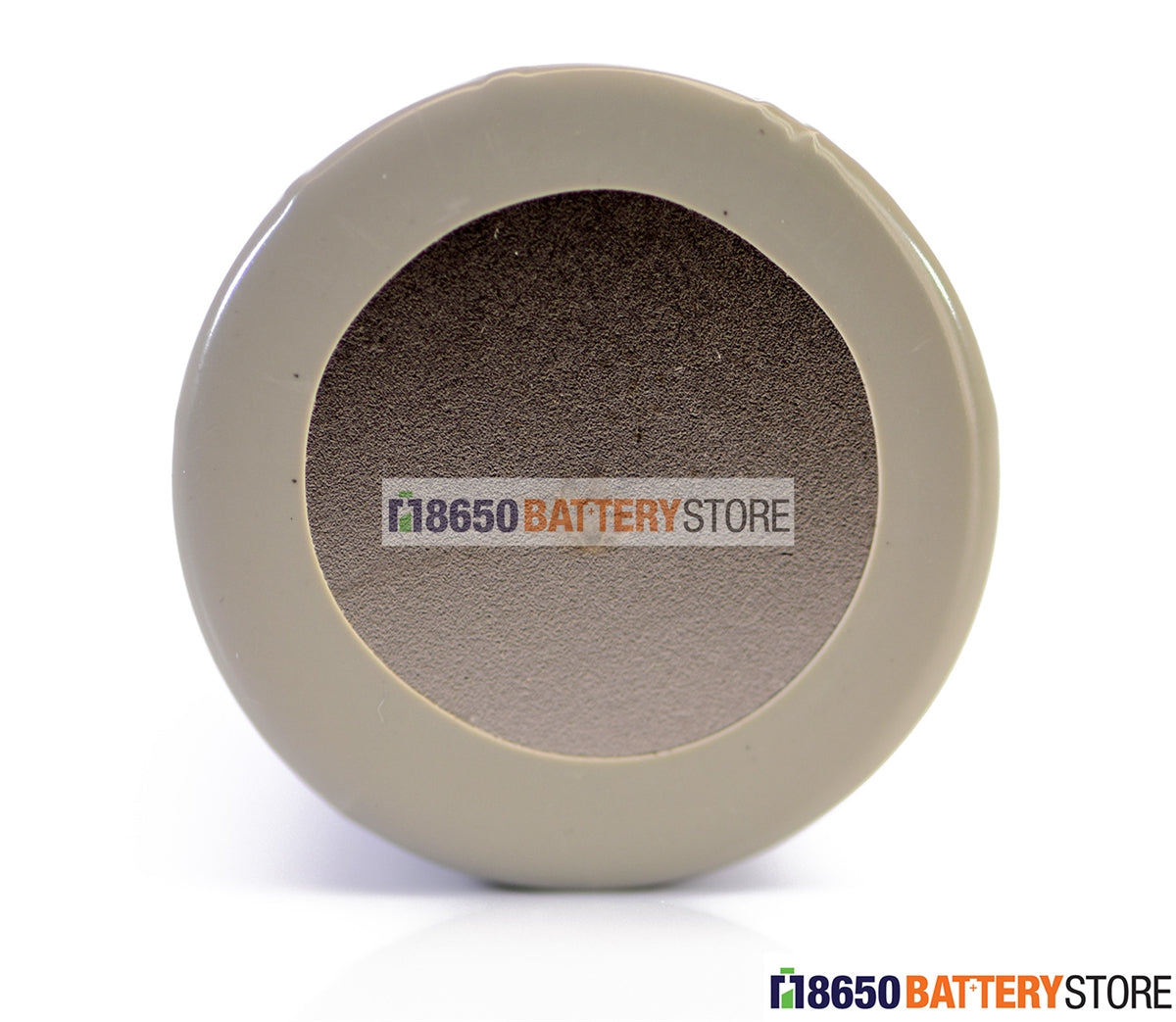

TERMINAL · PROTECTION Flat top · none as sold: bare cell, no protection circuit; the cover marks Product “Cell”, not “Pack” [1]. [1] §7.3.1 says the cell “contains safety and protection devices”, unnamed and unrated, and §8 recommends a protection circuit in the pack. Flat positive end as drawn in [1] §2.4.3; no terminal style named
MINIMUMS · APPROVAL SHEET electrical performance, cycle life and storage, as printed [1] §5
MINIMUM AT 0.52 A ≥ 2.50 Ah 2,500 mAh; to 2.5 V after rated charge, 23 °C [1] §5.2
MINIMUM AT 2.6 A ≥ 2.40 Ah 2,400 mAh; to 2.5 V after rated charge, 23 °C [1] §5.2
MINIMUM AT 10 A ≥ 2.35 Ah 2,350 mAh; to 2.5 V after rated charge, 23 °C [1] §5.2
MINIMUM AT 15 A ≥ 2.30 Ah 2,300 mAh; to 2.5 V after rated charge, 23 °C [1] §5.2
MINIMUM AT 20 A ≥ 2.30 Ah 2,300 mAh; to 2.5 V after rated charge, 23 °C [1] §5.2
MINIMUM AT 45 °C ≥ 2.40 Ah 2,400 mAh; 2.6 A to 2.5 V after rated charge at 23 °C [1] §5.2
MINIMUM AT 0 °C ≥ 1.90 Ah 1,900 mAh; 2.6 A to 2.5 V after rated charge at 23 °C [1] §5.2
MINIMUM AT −20 °C ≥ 1.80 Ah 1,800 mAh; 2.6 A to 2.5 V after rated charge at 23 °C [1] §5.2
CYCLE LIFE ≥ 80 % “C500”: after 500 cycles of 2.6 A charge and 10 A discharge (§5.1.4), 23 °C; % = Ah ÷ 2.35 Ah [1] §5.3
RETENTION, 1 MONTH ≥ 25 % stored at 23 °C from 30 % SOC; first discharge after storage; % = Ah ÷ 2.50 Ah [1] §5.4
RETENTION, 3 MONTHS ≥ 20 % stored at 23 °C from 30 % SOC; first discharge after storage; % = Ah ÷ 2.50 Ah [1] §5.4
RETENTION, 6 MONTHS ≥ 15 % stored at 23 °C from 30 % SOC; first discharge after storage; % = Ah ÷ 2.50 Ah [1] §5.4
+ Source: [1] E-One Moli Energy Corp. (Molicel), Approval Sheet, “Cell Specifications of INR-18650-P26A”, Doc # INR18650P26A-01, Rev. 1.2, dated 2018-08-17 (printed “8/17/2018”); on file; quoted here, not linked, because every page is marked “-- CONFIDENTIAL --” and “Proprietary of E-One Moli Energy Corp.” Questions about its figures: call or text us
SPEC PLATE · MOLICEL INR-18650-P26A · ARITHMETIC, DOCUMENTS SOURCES [1]–[3]
SPECIFICATION VALUE CONDITION · SOURCE
CALCULATED arithmetic on [1] and [2], shown so you can check it
1C, OUR BASIS 2.6 A 2.6 Ah typical [1] ÷ 1 h; [1] prints no C-rate
MAXIMUM DISCHARGE AS C-RATE 13.46C 35 A ÷ 2.6 A; 35 A is a maximum with no condition printed [1], not called continuous
MAXIMUM CHARGE AS C-RATE 2.31C 6 A ÷ 2.6 A; no condition printed for 6 A [1]
RATED DISCHARGE AS C-RATE 0.2C 0.52 A ÷ 2.6 A; [1] doesn’t call it 0.2C
RUNTIME AT 20 A, AT LEAST 6.9 min 2.30 Ah minimum at 20 A ÷ 20 A, to 2.5 V at 23 °C [1] §5.2
CYCLE-LIFE FLOOR ≥ 1,880 mAh 80 % × 2.35 Ah, the 100 % index of [1] §5.3; after 500 cycles at the 10 A discharge to 2.5 V, 23 °C (§5.1.4)
RETENTION FLOORS 625 · 500 · 375 mAh at least; 25, 20 and 15 % × 2.50 Ah, the index of [1] §5.4; after 1, 3 and 6 months stored at 23 °C from 30 % SOC, at the first discharge after storage
ENERGY CHECK 9.36 Wh 3.60 V × 2.60 Ah, the SDS’s own figures [2]; 3.6 V × 2.5 Ah [1] = 9.0 Wh, the SDS minimum [2]; [1] prints no Wh
VOLUME 17.7 cm³ π × (18.60 mm ÷ 2)² × 65.20 mm = 17,716 mm³ = 17.7 cm³, the upper limits of [1]’s tolerances
FROM THE SAFETY DATA SHEET (SDS) AND UN38.3 TRANSPORT TEST REPORT copied as printed from [2] and [3]
CHEMISTRY Li-ion [1] says “Lithium ion rechargeable cell”; the SDS’s cathode wording covers all Molicel cells, not this model alone: “The cathode contains Cobalt and Nickel components.” [2] §11.7; more under Questions
ENERGY · SDS 9.36 Wh “9.36 Wh (9.0Wh Min)”, “Watt Hour Rating (Wh) (Volts x Ah)” [2] Table 6
CAPACITY · SDS 2.60 Ah “2.60 Ah (2.5Ah Min)”, “Typical Capacity (Ah)” [2] Table 6
LITHIUM CONTENT 0.78 g “Equivalent Lithium Content (g) (cell Ah x 0.3 x #cells)” [2] Table 6
MASS · SDS 48.0 g as printed, basis not stated [2] Table 6
MASS · UN38.3 SAMPLES 45.888–46.133 g the lab weighed 10 samples before T1 [3]; not our lot
TRANSPORT UN3480 · Class 9 “UN3480 – Lithium Ion Batteries.”; UN3481 when packed with or contained in equipment [2] §14
UN38.3 TW1905068-001 AnTek Certification Inc., issued 2019-06-25: T1–T5, T6 impact and T8 “Passed”; T6 crush and T7 “N/A” [3]
ENERGY · UN38.3 REPORT 9.4 Wh “3.6 Vdc, 2.6 Ah, 9.4 Wh”, the rating on the report’s cover [3]
SAFETY DATA SHEET FSSF00058BJ §1.1 prints “Version number: BI”; issued 2025-01-10; Table 6 names INR18650-P26A [2]
+ Source: [1] E-One Moli Energy Corp. (Molicel), Approval Sheet, “Cell Specifications of INR-18650-P26A”, Doc # INR18650P26A-01, Rev. 1.2, dated 2018-08-17 (printed “8/17/2018”); on file; quoted here, not linked, because every page is marked “-- CONFIDENTIAL --” and “Proprietary of E-One Moli Energy Corp.” Questions about its figures: call or text us
+ Source: [2] Molicel, Safety Data Sheet FSSF00058BJ, “Molicel Rechargeable Lithium-ion cells and multi-cell battery packs”; §1.1 prints “Version number: BI”, while its revision list ends at BJ; issued 2025-01-10 (printed “January 10, 2025”); Table 6 lists INR18650-P26A; on file 2026-10-20 · SDS PDF
+ Source: [3] AnTek Certification Inc., “LITHIUM ION BATTERY SAFETY TESTING REPORT”, report TW1905068-001, model INR-18650-P26A, applicant E-ONE MOLI ENERGY CORPORATION; tests performed 2019-05-17 to 2019-06-12 (printed “May. 17, 2019 – Jun. 12, 2019”); issued 2019-06-25 (printed “Jun. 25, 2019”); to the UN Manual of Tests and Criteria ST/SG/AC.10/11/Rev.6/Amend.1; on file 2026-10-20 · UN38.3 report PDF
RATED · [1]FIG 1.1

Voltage window

Black marks: rated voltages [1] §4; end of charge 4.20 ± 0.05 V. Orange band: the discharge window [1] §7.2.3 prints, from 4.2 V to “a cut off voltage of 2.5V”. Cells ship at ≥ 3.45 V, about 30 % charge or less [1] §4.

RATED · [1]FIG 1.2

Current limits

Rated discharge 0.52 A · 0.2C · to 2.5 V at 23 °C
0.52 A
Rated charge 2.6 A · 1C · CC-CV to 4.2 V, 1.5 h or 50 mA, 23 °C
2.6 A
Maximum charging current 6 A · 2.31C · no condition printed
6 A
Maximum discharging current 35 A · 13.46C · no condition printed; not called continuous
35 A

Currents as printed in [1] §4, each with its condition, on a 0–40 A scale. C-rates on our basis, 2.6 A: the typical 2.6 Ah in one hour; [1] prints none. For both maximums the Remarks cell is blank. [1] prints no pulse or peak rating, so no pulse figure is shown.

RATED · [1]FIG 1.3

Temperature envelope

Discharging −40 to 60 °C, “Operating temperature”
Charging 0 to 60 °C, “Operating temperature”
Storage below 35 °C as shipped; below 23 °C long term
Printed test points §5.2 minimums at −20, 0, 23 and 45 °C

Temperatures as printed in [1] §4, in °C. [1] doesn’t say whether its operating temperatures are ambient or cell-surface temperatures, and prints no cell-surface limit. Between −20 and −40 °C it notes reduced discharge voltage (fig 4.3). Last row: the test temperatures of its capacity minimums, shown in section 04 below. Orange: the charging range.

DOCUMENTS · [1]–[3]FIG 1.4

Capacity, as each document prints it

Minimum “2.5Ah (Minimum)” [1]
2,500
Typical “2.6Ah (Typical)” [1]
2,600
SDS “2.60 Ah (2.5Ah Min)” [2]
2,600
UN38.3 report rating “2.6 Ah” [3]
2,600
At 0.52 to 20 A §5.2 minimums, 2.30 Ah to 2.50 Ah [1]

Each document’s capacity figure, as printed, in mAh (Ah × 1,000) on a 2,200–2,700 mAh scale; the axis doesn’t start at zero. [1] and [2] print 2.6 Ah typical and 2.5 Ah minimum; [3] prints 2.6 Ah as its rating. Last row: the range of [1]’s minimums at 0.52 to 20 A (section 03 below).

PRINTED IN [2]FIG 1.5

Energy, as the SDS prints it

SDS rating “9.36 Wh”, Volts x Ah [2]
9.36
SDS minimum “9.0Wh Min” [2]
9.0

[1] prints no Wh figure. The SDS prints “9.36 Wh (9.0Wh Min)” under “Watt Hour Rating (Wh) (Volts x Ah)” [2]: 3.60 V × 2.60 Ah = 9.36 Wh and 3.6 V × 2.5 Ah = 9.0 Wh, our check. Scale 8.8–9.6 Wh; the axis doesn’t start at zero.

02 · CAPACITY

2.30 Ah minimum at 20 A.

Molicel’s approval sheet prints the P26A’s minimum capacity at five currents, from 0.52 to 20 A, each to 2.5 V after the rated charge at 23 °C [1] §5.2. At 20 A it prints “≥2.30Ah”, the same as at 15 A. By our arithmetic, that is 92 % of the 2.5 Ah rated minimum and at least 6.9 minutes at 20 A. Above 20 A it prints no capacity, including at its 35 A maximum, for which it prints no condition.

0.52 A · 0.2C2.50 Ahminimum, “≥2.50Ah” [1]; 2,500 mAh
20 A · 7.69C2.30 Ahminimum, “≥2.30Ah” [1]; 6.9 min calculated
PRINTED IN [1]FIG 2.1

Data: [1] §5.2 item 1, “Discharge Capacity at 23 oC” · minimum capacity to 2.5 V after rated charge, as printed in Ah · points only: [1] prints no curve between them · axis starts at 2.25 Ah · vertical line: 35 A, the maximum discharging current, with no condition and no capacity printed · data table under fig 3.1

03BY CURRENT

Minimum capacity and runtime, by current.

[1] §5.2 prints the minimum capacity at five currents, from 0.52 to 20 A, each to 2.5 V after the rated charge at 23 °C. The runtimes are arithmetic on those minimums, with the formula under fig 3.2. [1] prints no capacity above 20 A.

PRINTED IN [1]FIG 3.1

Minimum capacity, by current

  • 0.52 A 0.2C≥ 2.50 Ah
  • 2.6 A 1C≥ 2.40 Ah
  • 10 A 3.85C≥ 2.35 Ah
  • 15 A 5.77C≥ 2.30 Ah
  • 20 A 7.69C≥ 2.30 Ah

Minimum capacity to 2.5 V at each current after rated charge, 23 °C, as printed in [1] §5.2; bars start at zero. [1] prints the same minimum at 15 and 20 A. C-rates on our 2.6 A basis. These are test currents in a capacity table, not current ratings; orange marks 20 A, the highest current with a printed capacity.

DATA TABLE · FIG 3.1
Fig 3.1 data: [1] §5.2 item 1 and arithmetic
CURRENT C-RATE, OUR BASIS PRINTED [1] mAh RUNTIME, AT LEAST
0.52 A 0.2C ≥2.50Ah 2,500 4 h 48 min
2.6 A 1C ≥2.40Ah 2,400 55 min
10 A 3.85C ≥2.35Ah 2,350 14 min
15 A 5.77C ≥2.30Ah 2,300 9.2 min
20 A 7.69C ≥2.30Ah 2,300 6.9 min
CALCULATED FROM [1]FIG 3.2

Runtime at a constant current, at least

  • 0.52 A 0.2C4 h 48 min
  • 2.6 A 1C55 min
  • 10 A 3.85C14 min
  • 15 A 5.77C9.2 min
  • 20 A 7.69C6.9 min

Runtime = minimum capacity ÷ current, from fig 3.1: one full rated charge, constant current to 2.5 V at 23 °C. Because these are minimums, a cell that meets [1] runs at least this long under those conditions. Orange: 20 A, as in fig 3.1. A device whose average draw is below its peak current runs longer than the figure at that peak.

DOCUMENTS · [1][3]FIG 3.3

Discharge currents in the ratings and tests

Capacity minimums 0.52, 2.6, 10, 15 and 20 A · [1] §5.2
Rated discharge 0.52 A, for the rated capacity · [1] §4
Cycle-life test 10 A discharge · [1] §5.1.4, §5.3
Maximum discharging current 35 A, no condition printed · [1] §4
UN38.3 T8 forced discharge 35 A, an abuse test · [3]

The discharge currents [1] prints for its ratings, capacity minimums and cycle-life test, and [3]’s T8 current, on a 0–40 A scale. [1] prints capacity minimums from 0.52 to 20 A and runs its cycle-life test at 10 A; it prints no capacity, cycle-life or temperature figure at 35 A. [3]’s T8 forced discharge runs at 35 A, “the maximum discharge current specified by the manufacturer”, with a pass criterion of no disassembly and no fire: an abuse test, not a rating.

04TEMPERATURE

Capacity in the cold and the heat.

[1] §5.2 prints the minimum capacity at 2.6 A with the discharge at 45, 0 and −20 °C, after a rated charge at 23 °C; its 2.6 A row at 23 °C completes the set. It rates discharge down to −40 °C and charge from 0 °C; below −20 °C it describes the effect in words only.

PRINTED IN [1]FIG 4.1

Minimum capacity, by discharge temperature

  • −20 °C §5.2 item 2≥ 1.80 Ah
  • 0 °C §5.2 item 2≥ 1.90 Ah
  • 23 °C §5.2 item 1≥ 2.40 Ah
  • 45 °C §5.2 item 2≥ 2.40 Ah

Minimum capacity at 2.6 A to 2.5 V, with the discharge at each temperature after a rated charge at 23 °C and at least 3 h at the test temperature first (§5.1.2), as printed in [1] §5.2 item 2; the 23 °C row is item 1’s 2.6 A minimum, the same discharge. Orange: below 0 °C. [1] prints no minimum below −20 °C, though it rates discharge down to −40 °C.

DATA TABLE · FIG 4.1
Fig 4.1 data: [1] §5.2 items 1 and 2 and arithmetic
TEMPERATURE PRINTED [1] mAh RUNTIME AT 2.6 A, AT LEAST
−20 °C ≥1.80Ah 1,800 41 min
0 °C ≥1.90Ah 1,900 43 min
23 °C ≥2.40Ah 2,400 55 min
45 °C ≥2.40Ah 2,400 55 min
CALCULATED FROM [1]FIG 4.2

Runtime at 2.6 A, by temperature, at least

  • −20 °C 2.6 A · 1C41 min
  • 0 °C 2.6 A · 1C43 min
  • 23 °C 2.6 A · 1C55 min
  • 45 °C 2.6 A · 1C55 min

Runtime = minimum capacity ÷ 2.6 A, from fig 4.1: arithmetic on [1] §5.2, cut down to the whole minute. At −20 °C the same discharge lasts at least 41 min, against 55 min at 23 °C. Orange: below 0 °C.

PRINTED IN [1]FIG 4.3

Below 0 °C, as [1] words it

Discharge −40 to 60 °C, operating temperature · [1] §4
“reduced discharge voltage” −20 to −40 °C · [1] §4
“significant decrease in discharge capacity” −30 °C or less · [1] §7.2.3
Minimums printed −20, 0, 23 and 45 °C, at 2.6 A · [1] §5.2
Charge 0 to 60 °C; not below 0 °C · [1] §4

What [1] says about the cold, on a −40 to 60 °C scale. It rates discharge down to −40 °C but prints capacity minimums only down to −20 °C; below that it describes the effect in words, quoted in the row labels. For discharge below −40 °C it says to consult E-One Moli Energy (§7.3.3). It rates charging from 0 to 60 °C only. Orange: the ranges [1] describes only in words.

05CHARGING

Charging: 2.6 A rated; 6 A maximum, no condition printed.

[1] prints a rated charge of 2.6 A, CC-CV to 4.2 V, ending after 1.5 h or at 50 mA, at 23 °C, with a 90 min charging time, and a 6 A maximum charging current with no condition. It prints no charge curve, no charge-current limit by temperature, and no time, capacity or cycle rating for charging above 2.6 A. Charge between 0 and 60 °C [1].

RATED · [1]FIG 5.1

Charge currents, as printed

End of rated charge 50 mA, or after 1.5 h · [1] §4
Rated charge 2.6 A · 1C · CC-CV to 4.2 V at 23 °C; 90 min · [1] §4
2.6 A
Maximum charging current 6 A · 2.31C · no condition printed · [1] §4
6 A

Charge currents as printed in [1] §4. The rated charge, “Limiting 2.6A and constant 4.2V charge for 1.5h or 50mA at 23 oC.”, takes 90 min (“Charging time”). For the 6 A maximum, [1] prints no temperature band, time, voltage or end current, and no capacity or cycle figure. The 18 A in [1] §5.5.2 is an overcharge abuse test, not a charge rating. C-rates on our 2.6 A basis.

PACK DESIGN · [1]FIG 5.2

Voltage thresholds for a pack

Overcharge protection “under 4.3V/cell”, tolerance 0.05 V/cell at most · [1] §8.1.1
End of charge voltage 4.20 ± 0.05 V · [1] §4; don’t exceed 4.2 V per cell, §7.2.1
Shipping voltage ≥ 3.45 V, about 30 % charge or less · [1] §4
Over-discharge protection “2.5V/cell”, then consumption current below 10 µA · [1] §8.1.2
Discharge window 4.2 to 2.5 V · [1] §7.2.3

Voltage thresholds for a pack’s battery management system (BMS): the cell ratings in [1] §4 and §7.2, and the protection levels [1] §8.1 recommends: overcharge protection under 4.3 V per cell, with a tolerance of 0.05 V per cell at most (better under 0.03 V), and an over-discharge cut at 2.5 V per cell. For a pack, the charge voltage is 4.2 × N, where N is the number of cells in series [1] §7.2.1. Orange: the 4.2 to 2.5 V discharge window, as in fig 1.1.

Before you charge

  • Use a lithium-ion charger with a CC-CV profile that stops at 4.2 V: [1] §7.2.1 specifies the “constant current/constant voltage” method.
  • 2.6 A is the rated charge, 90 min at 23 °C [1]. 6 A is the printed maximum charging current, with no condition printed; [1] prints no time, capacity or cycle rating for charging above 2.6 A.
  • Charge only between 0 and 60 °C [1] §7.2.1. Below 0 °C, don’t charge.
  • “The cell must be prevented from reverse-polarity charging.” [1] §7.2.2
  • Stop charging a cell that doesn’t finish within the specified charging time [1] §7.3.2.
  • In a pack, a BMS (battery management system) should end charge at 4.2 V per cell [1] §7.2.1 and stop charge and discharge on cell over-temperature [1] §8.1.3; [1] §8.1.1 puts overcharge protection under 4.3 V per cell.

06CYCLE LIFE AND STORAGE

What it keeps after use and storage.

[1] rates the capacity left after 500 cycles at 10 A (at least 80 % of a 2.35 Ah index) and the charge a cell stored at 23 °C keeps after 1, 3 and 6 months. It prints no cycle-life or storage curve, so the figures show only its printed points.

CALCULATED FROM [1]FIG 6.1

Capacity after 500 cycles at 10 A

  • New, at 10 A printed “≥2.35Ah” · [1] §5.2≥ 2.35 Ah
  • After 500 cycles ≥ 80 % of 2.35 Ah · [1] §5.3≥ 1.88 Ah

[1] §5.3 rates at least 80 % after 500 cycles (“C500”) of its standard cycle (§5.1.4): 2.6 A charge to 4.2 V ending at 50 mA, 10 A discharge to 2.5 V, 10 min rest, 23 °C. Its 100 % is 2.35 Ah, also the §5.2 minimum at 10 A, so at least 80 % means at least 1.88 Ah, or 1,880 mAh (our arithmetic). A rating, not a warranty; [1] prints no curve and no end-of-life count. Orange: the rated floor after 500 cycles.

RATED · [1]FIG 6.2

Charge kept in storage

  • 1 month 23 °C, from 30 % SOC · ≥ 625 mAh≥ 25 %
  • 3 months 23 °C, from 30 % SOC · ≥ 500 mAh≥ 20 %
  • 6 months 23 °C, from 30 % SOC · ≥ 375 mAh≥ 15 %

Charge left after storage at 23 °C from 30 % state of charge (SOC), defined at the first discharge after storage, as a percent of 2.50 Ah (“The % = (Ah / 2.50) x 100%”) [1] §5.4; mAh is our arithmetic. Storage starts at 30 % SOC, so a figure near 30 % means little was lost. [1] prints no recovered-capacity figure. Orange: 6 months, the longest period rated.

Storage, in [1]’s words

  • §4 item 12: “< 35 oC” for a shipped cell; “Recommended temperature less than 23 oC for long term storage.”
  • §7.2.4 1): “In case of long-term storage, store the cell at <23 oC, low humidity, noncorrosive gas atmosphere.”
  • §7.2.4 2): “When storing the cell for a long period longer than 1 year, charge it at least once 1 year. And in this case, the cell is recommended to be charged to 30% capacity.”
  • §7.2.4 3): “Do not store cell in humid environment.”
  • §10: “The cell is shipped at a state of charge not to exceed 30% of rated capacity. Less than 35 oC is recommended for cell shipping during transportation.”
  • §4 item 13: shelf life “1 year”, “See Section 5.4.”

Each clause quoted from [1], degree signs as printed (“oC”). The SDS’s general storage advice for all Molicel cells [2] is left off; these clauses are written for the P26A.

07TRANSPORT TESTS

What the UN38.3 report records.

AnTek Certification’s 2019 report [3] records “Passed” for T1–T5, the T6 impact test and T8 on the INR-18650-P26A, and “N/A” for the T6 crush test and T7. AnTek is a separate company from the applicant, E-ONE MOLI ENERGY CORPORATION; the report prints no ownership link and no accreditation mark. Its cover prints the cell’s rating as “3.6 Vdc, 2.6 Ah, 9.4 Wh”. Its tables also print what each cell did: a 2019 lab sample, not our lot.

PRINTED IN [3]FIG 7.1

Highest temperature, by abuse test

T5 external short 10 cells · fully charged · 113.0–124.3 °C
T6 impact 10 cells · 50 % of design rated capacity · 26.3–27.9 °C
Pass limit, T5 and T6 external temperature not above 170 °C [3]

Highest external temperature each cell reached, as printed in [3]: one tick per cell, the bar spans the lowest to the highest. T5: case held at 57 ± 4 °C, then shorted through 75.88–84.51 mΩ (printed per cell). T6: a 9.1 kg mass dropped from 61 cm onto a 15.8 mm bar across the cell. T8 forced discharge ran 20 cells at 35 A for 0.074 h; [3] prints no temperatures for it. T5, T6 impact and T8 all read “Passed” in [3]: a 2019 lab sample, not our lot.

DATA TABLE · FIG 7.1
Fig 7.1 data: highest external temperature by test, as printed in [3]
TEST CELLS MAX °C, EACH CELL RANGE
T5 external short 10 114.1, 116.5, 116.1, 124.3, 113.9, 116.3, 113.0, 116.6, 120.9, 120.6 113.0–124.3
T6 impact 10 26.9, 27.5, 26.3, 27.2, 27.3, 26.6, 27.2, 26.8, 27.3, 27.9 26.3–27.9
PRINTED IN [3]FIG 7.2

Voltage kept through T1–T4

Pass criterion not less than 90 % [3]
T1 altitude 99.86–99.93 % [3]
T2 thermal cycling 98.11–98.25 % [3]
T3 vibration 99.66–99.76 % [3]
T4 shock 99.93–99.98 % [3]

Open-circuit voltage after each test, as a percent of the voltage just before it, printed for each of the 10 cells in [3]: one tick per cell. The cells started T1 at 4.184–4.188 V, fully charged. The scale starts at 85 %.

DATA TABLE · FIG 7.2
Fig 7.2 data: open-circuit voltage kept after T1–T4, as a percent of the voltage before each test, as printed in [3]
TEST CELLS OCV KEPT, EACH CELL % RANGE
T1 altitude 10 99.90, 99.88, 99.90, 99.93, 99.90, 99.88, 99.90, 99.86, 99.90, 99.86 99.86–99.93
T2 thermal cycling 10 98.18, 98.23, 98.21, 98.11, 98.11, 98.25, 98.16, 98.11, 98.21, 98.13 98.11–98.25
T3 vibration 10 99.73, 99.68, 99.73, 99.71, 99.76, 99.66, 99.76, 99.71, 99.73, 99.71 99.66–99.76
T4 shock 10 99.95, 99.98, 99.95, 99.95, 99.98, 99.95, 99.93, 99.98, 99.93, 99.95 99.93–99.98
PRINTED IN [3]FIG 7.3

Mass of the samples in the report

Mass of the 10 samples AnTek weighed before T1, as printed in [3]: 45.888–46.133 g (mean 46.03 g, our arithmetic), against the 48.0 g maximum in [1]. Mass loss after each of T1–T4: 0.00–0.02 % [3]. The axis starts at 45.5 g.

DATA TABLE · FIG 7.3
Fig 7.3 data: sample mass before T1, as printed in [3]
CELL STATE BEFORE T1 g
01 first cycle 46.133
02 first cycle 46.098
03 first cycle 46.121
04 first cycle 45.888
05 first cycle 45.957
06 after 25 cycles 46.121
07 after 25 cycles 46.051
08 after 25 cycles 46.050
09 after 25 cycles 45.896
10 after 25 cycles 45.944

The tests in [3]

UN38.3 test items and conclusions in the AnTek report
TEST ITEM, AS PRINTED CONCLUSION, AS PRINTED CELLS, OUR COUNT CONDITION, CONDENSED FROM [3]
T1. Altitude Simulation Passed 10 11.6 kPa or less for at least 6 h at 20 ± 5 °C
T2. Thermal Test Passed 10 at least 6 h at 72 ± 2 °C, then at least 6 h at −40 ± 2 °C, 10 cycles; then 24 h at 20 ± 5 °C
T3. Vibration Passed 10 sine sweep 7 to 200 to 7 Hz in 15 min, 12 times (3 h) on each of 3 axes
T4. Shock Passed 10 half-sine, 150 gn for 6 ms (large cells: 50 gn, 11 ms; [3] doesn’t say which applied), 18 shocks
T5. External Short Circuit Passed 10 case heated to 57 ± 4 °C, then shorted through less than 0.1 ohm and kept shorted for at least 1 h after the case is back at 57 ± 4 °C
T6. Impact Passed 10 9.1 kg dropped from 61 cm onto a 15.8 mm steel bar across the cell, at 50 % of the design rated capacity
T6. Crush N/A none no result rows printed
T7. Overcharge N/A none no result rows printed
T8. Forced Discharge Passed 20 35 A from a 12 V DC supply for 0.074 h (rated capacity ÷ current), from fully discharged

Test names and results as printed in [3]; cell counts are our tally of its result rows; conditions condensed from its procedures, keeping its numbers and symbols. T1–T5 ran in sequence on the same 10 cells, fully charged: 5 at first cycle and 5 after 25 cycles. Every printed observation reads “O”: for T1–T5, no leakage, venting, disassembly, rupture or fire; for T6 and T8, no disassembly and no fire.

Safety tests in [1] §5.5 and §5.6

Safety tests listed in sections 5.5 and 5.6 of the approval sheet
TEST CRITERIA, AS PRINTED CONDITIONS, AS PRINTED SECTION
Heating No fire or explosion At 100% SOC heat cell up in gravity convection and/or circulating air oven. Oven temperature is to be raised at a rate of 5ºC (± 2ºC) per minute to a temperature of 130ºC (± 2ºC). Hold oven at 130°C for 10 minutes. §5.5.1
Thermal test Mass loss <0.1%, No leakage, venting, explosion, fire, disassembly, or rupture. 6 Hours @ 75 ± 2°C followed by 6 Hours @ - 40 ± 2°C x 10 Cycles (interval time of no more than 30 minutes between temperatures). Measurements taken after 10 cycles and 24 hours storage at 20± 5°C. (UN method) §5.5.1
Short Circuit No disassembly, rupture or fire within 6 hours of test. Max temp: < 150°C. While in preheated oven and cell temperature reaches 55 ± 2°C, short circuit cell using a total external resistance < 0.1 ohm until cell temperature has returned to 55 ± 2°C. (UN method) §5.5.2
Overcharge No fire or explosion Charging at a current of 18A to 15V from the fully discharged state for 2.5hrs. §5.5.2
Forced Discharge No disassembly and no fire within 7 days of test Connect cell in series with a 12V DC power supply at a current equal to maximum discharge specified. (UN method) §5.5.2
Crush No fire or explosion Crush between two flat plates. Applied force is about 13KN. §5.5.3
Impact No fire or explosion Impact by 15.8mmϕ bar with 9.1kg weight dropped from 61cm height on the flat surface. §5.5.3
Shock No leakage, mass loss, no venting, disassembly, no rupture and no fire. 90% voltage recovery Subject to 6 shocks/axis, 18 total, of peak acceleration of150g and pulse duration of 6 ms. (UN method) §5.6
High Temp. Storage No leakage, no vent, no fire or explosion 0.30A discharge capacity test after leaving at 85°C for 10h. §5.6
Drop No visible electrolyte leakage, no temperature rising. Drop from a height of 3ft onto a concrete floor 3 times each for bottom, side and header orientations (total=9 drops). §5.6
Vibration No leakage, mass loss, no venting, disassembly, no rupture and no fire. 90% voltage recovery Subject to 7↔200Hz / 15 min vibration, 12x15 min /3 axes at amplitude of 0.8mm (1.6 mm total excursion). (UN method) §5.6
High Altitude Exposure No leakage, weight loss, no vent, fire or explosion, 90% voltage recovery Stored at a pressure of 11.6 kPa for 6 hrs at 20°C. (UN method) §5.6

[1] lists these as tests the cell is specified to meet: the maker’s test method and pass criterion, copied as printed, symbols included. It prints no results. The UN38.3 results above are a separate set, from [3], with their own conditions: [1]’s short circuit starts at 55 ± 2 °C and [3]’s T5 at 57 ± 4 °C; [1]’s thermal test runs at 75 ± 2 °C and [3]’s T2 at 72 ± 2 °C. The 18 A overcharge test is a test current, not a charge limit.

08WHAT CHANGED

Older SDS editions and UN38.3 report, side by side.

Only one revision of Molicel’s approval sheet is on file, Rev. 1.2 of 2018 [1], and it prints no revision history. Two older editions of the SDS and an older UN38.3 report are on file. In short, the 2025 SDS adds minimums (2.5 Ah, 9.0 Wh) and prints 48.0 g where the 2019 editions printed 50.0 g; AnTek’s 2019 report supersedes Bureau Veritas’s 2017 report, whose samples were pre-production. Every other P26A figure on this page comes from [1], [2] and [3]; the comparison in section 09 uses each cell’s own documents [7].

The INR18650-P26A row of SDS Table 6, three editions
AS PRINTED FSSF00058BJ, 2025 [2] FSSF00058AR, 2019 [5] FSSF00058AP, 2019 [6]
Issue Date January 10, 2025 19-Dec-2019 01-April-2019
Version number BI AR AB
Model Number INR18650-P26A INR18650-P26A INR18650-P26A
Nominal Voltage (V) 3.60 V 3.60 V 3.60 V
Typical Capacity (Ah) 2.60 Ah (2.5Ah Min) 2.60 Ah 2.60 Ah
Watt Hour Rating (Wh) (Volts x Ah) 9.36 Wh (9.0Wh Min) 9.36 Wh 9.36 Wh
Equivalent Lithium Content (g) (cell Ah x 0.3 x #cells) 0.78 g 0.78 g 0.78 g
Weight (grams) 48.0 g 50.0 g 50.0 g

The INR18650-P26A row of Table 6 in each SDS edition, each entry copied as printed; the SDS covers all Molicel cells. The 2025 edition’s §1.1 version field prints “BI” although its document number and revision list end at BJ. The 2019 FSSF00058AP edition’s version field prints “AB”.

The 2019 and 2017 UN38.3 reports, side by side
ITEM ANTEK TW1905068-001, 2019 [3] BUREAU VERITAS UNT160901C17, 2017 [4]
Lab AnTek Certification Inc., Taipei Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch
Test standard, as printed ST/SG/AC.10/11/Rev.6/Amend.1 Manual of Test and Criteria (Rev. 6th), Section 38.3
Rating, as printed “3.6 Vdc, 2.6 Ah, 9.4 Wh” “3.6Vdc, 2.6Ah”
Dates tests performed May. 17, 2019 – Jun. 12, 2019; issued Jun. 25, 2019 received 2017-01-10; tests “2017-01-10 to 2076-02-13” (end year as printed); issued 2017-02-18
T1–T5 samples 5 at first cycle and 5 after 25 cycles, fully charged 10 at first cycle; “The test samples were pre-production samples without serial number.”
T6 impact samples 5 at first cycle and 5 after 25 cycles, at 50 % of the design rated capacity 5 at first cycle, 50 % of the design rated capacity
T8 samples and current 10 at first cycle and 10 after 25 cycles; “35 A” for “0.074 h” 10 at first cycle and 10 after 50 cycles; no current or duration printed
Mass and size printed none; per-sample weighings only “Weight:approx. 50g”; “(D) 18.3 mm by (H) 65.05 mm”
Designation none printed “(ICR19/66)”
Summary of testing, as printed none; the cover’s “Rating:” line only “Max. charge voltage (Vdc):” 4.25; “Max. charge current (A):” 6; “Max. continue discharge current (A)” 35
Restriction none printed “This report is for your exclusive use. [...]”

Text in quotation marks is copied as printed; other cells condense the reports, and sample counts are our tally of each report’s result rows. [3] supersedes [4], and no rating on this page comes from [4]. Its “Summary of testing” lists “The load conditions used during testing” for its pre-production samples, in the lab’s wording, not Molicel’s, including “Max. continue discharge current (A)” 35 and “Max. charge voltage (Vdc):” 4.25. Molicel’s approval sheet prints “Maximum discharging current” “35A” with no condition, and an end-of-charge voltage of 4.20 ± 0.05 V with “Do not exceed the specified charge voltage (4.2V per single cell)” [1] §4, §7.2.1.

09COMPARE

Where the P26A sits.

Eleven other 18650 cells, each from its own documents. A higher discharge rating usually costs capacity. The conditions behind each rating differ, so the table quotes each document’s wording.

DOCUMENTS · [1][7]FIG 9.1

Minimum capacity and printed discharge, side by side

  • Molicel P28B INR-18650-P28B2,650 mAh minimum · 2,800 typical40 A continuous · 80 °C cut-off
  • Molicel P28A INR-18650-P28A2,700 mAh minimum · 2,800 typical35 A max. · 80 °C temp. cut
  • Molicel P26A INR-18650-P26A2,500 mAh minimum · 2,600 typical35 A max. · no condition printed
  • Sony/Murata VTC6 US18650VTC63,000 mAh minimum · 3,120 nominal30 A continuous max. · 80 °C temperature cut
  • Samsung 30Q INR18650-30Q62,950 mAh minimum · 3,000 nominal30 A continuous · 80 °C cut-off; 15 A without one
  • Molicel P30B INR-18650-P30B2,900 mAh minimum · 3,000 typical30 A continuous · 80 °C cut-off
  • Samsung 25R INR18650-25R2,500 mAh minimum · no typical printed20 A max. continuous · at room temperature
  • LG HG2 18650HG2Minimum not stated by manufacturer · 3,000 nominal20 A for continuous discharge · no temperature condition printed
  • Molicel M35A INR-18650-M35A3,350 mAh minimum · 3,450 typical10 A max. · cell surface not above 80 °C
  • Panasonic GA NCR18650GA3,350 mAh minimum · 3,450 typical10 A continuous (max.) · 0 to +40 °C
  • Samsung 35E INR18650-35E3,350 mAh minimum · no typical printed8 A for continuous discharge · no condition printed
  • Panasonic NCR18650B NCR18650B3,250 mAh minimum · 3,350 typicalNot printed no document gives a discharge-current rating; no bar

Bars show each printed figure, not like-for-like ratings: the P26A’s 35 A is a maximum with no condition printed [1]; the P28A and M35A documents also print maximum discharging currents, and the others print continuous ratings, each under its own condition [7]. The NCR18650B’s documents print no discharge rating, so its row has no bar. Orange: the P26A. Bars start at zero: minimum capacity on a 0–3,500 mAh scale, discharge on 0–40 A. Pulse and other non-continuous figures are left out.

Comparison cells, ratings as printed
CELL TYPICAL OR NOMINAL mAh MINIMUM mAh DISCHARGE RATING AS PRINTED CHARGE RATING AS PRINTED MASS g
Molicel P28B
INR-18650-P28B
2,800 typical 2,650 “Discharge Current, Continuous: 40 A (80°C cut-off)” “8.4 A (70°C cut-off)” 48 max
Molicel P28A
INR-18650-P28A
2,800 typical 2,700 “Maximum discharging current” “35A (with 80 oC temp. cut)” (Molicel cell specification) “8.4A”, “See Section 4.14” (Molicel cell specification) 48 max
Molicel P26A
INR-18650-P26A
2,600 typical 2,500 “Maximum discharging current” “35A” (no condition printed) [1] §4 “Maximum charging current” “6A” (no condition printed) [1] §4 48 max
Sony/Murata VTC6
US18650VTC6
3,120 nominal 3,000 “Continuous Maximum Discharge Current: 30A (With 80 deg temperature cut)” “Continuous Maximum Charge Current: 5.0A” 46.6 typical
Samsung 30Q
INR18650-30Q6
3,000 nominal 2,950 “Max. continuous discharge: 15A (Without temperature cut) / 30A (With 80℃ temperature cut)” “Rated charge: CCCV, 4A, 4.20V, 100mA cut-off” 48 max
Molicel P30B
INR-18650-P30B
3,000 typical 2,900 “Discharge Current, Continuous: 30 A (80°C cut-off)” “9 A (60°C cut-off)” 47 max
Samsung 25R
INR18650-25R
not printed 2,500 “Max. continuous discharge: 20A (@ RT)” “Rated charge: CCCV, 4A, 4.20V, 100mA cut-off” 45 max
LG HG2
18650HG2
3,000 nominal Not stated by manufacturer “Max. Discharge Current, For continuous discharge: 20000mA” “Max. Charge Current: 4000mA” 48 max
Molicel M35A
INR-18650-M35A
3,450 typical 3,350 “Maximum discharging current” 10 A; Remarks “Cycle life is reduced at high rates.”; §7.2.3 2): “The cell surface temperature must not exceed 80°C. Recommended thermal cut-off of 70°C at high rates.” “Maximum charging current” 1.7 A; Remarks “See Section 4.14” (§4.14 chart: 1.7 A from 0 to 60 °C cell surface temperature) 48 max
Panasonic GA
NCR18650GA
3,450 typical 3,350 “Continuous Discharge Current (Max.)” “10 A”, “0 ~ +40°C” (SANYO NCR18650-1041 §5.9); the Panasonic data sheet prints 8 A with “* Cycle characteristics expect more than 60% at 300 cycle.” “1.675 A or less”, “+10 ~ +45°C” (SANYO NCR18650-1041 §5.6) 49.5 max (“less than 49.5 g”)
Samsung 35E
INR18650-35E
not printed 3,350 “Max. Discharge Current: 8,000mA (for continuous discharge)” (non-continuous figure not shown) “2,000mA (not for cycle life)” 50 max
Panasonic NCR18650B
NCR18650B
3,350 typical 3,250 (not printed: no document gives a discharge-current rating) CC-CV, “Std.” 1625mA, 4.20V, 4.0 hrs, 0 to +45°C; “* At temperatures below 10°C, charge at a 0.25C rate.” 48.5 max

Text in quotation marks is copied as printed from each manufacturer document, the approval sheet [1] for the P26A and each cell’s own documents for the others [7], newest version on file, checked by a second reading; notes in parentheses are ours. Links go to the bare-cell listing in our store.

10PACK MATH

From one cell to a pack.

How the single-cell ratings scale in series (S) and parallel (P). Illustrative arithmetic, not a pack rating.

V MAX4.2 × S“4.2 x N” V, N cells in series [1] §7.2.1
V NOMINAL3.6 × Snominal voltage, 3.6 V [1]
CAPACITY2.5 × PAh minimum; 2.6 × P typical; 0.52 A, 23 °C [1]
MAXIMUM DISCHARGE35 × PA: the 35 A single-cell maximum, no condition printed [1], times P*
Pack arithmetic by configuration
CONFIG CELLS V MAX V NOMINAL Ah MINIMUM Wh MINIMUM MAXIMUM A, NO CONDITION PRINTED* CELL MASS g, MAX
1S1P 1 4.2 3.6 2.5 9.0 35 48
2S1P 2 8.4 7.2 2.5 18.0 35 96
3S1P 3 12.6 10.8 2.5 27.0 35 144
4S1P 4 16.8 14.4 2.5 36.0 35 192
5S2P 10 21.0 18.0 5.0 90.0 70 480
6S1P 6 25.2 21.6 2.5 54.0 35 288
7S3P 21 29.4 25.2 7.5 189.0 105 1,008
10S3P 30 42.0 36.0 7.5 270.0 105 1,440
10S4P 40 42.0 36.0 10.0 360.0 140 1,920
13S4P 52 54.6 46.8 10.0 468.0 140 2,496
14S5P 70 58.8 50.4 12.5 630.0 175 3,360
CALCULATED FROM [1]FIG 10.1

Maximum discharge ceiling, by parallel count

  • 1P 2.5 Ah minimum35 Ano condition printed
  • 2P 5.0 Ah minimum70 Ano condition printed
  • 3P 7.5 Ah minimum105 Ano condition printed
  • 4P 10.0 Ah minimum140 Ano condition printed
  • 5P 12.5 Ah minimum175 Ano condition printed
  • 6P 15.0 Ah minimum210 Ano condition printed

35 A × P: the single-cell maximum discharging current, for which [1] prints no condition, times the parallel count. A ceiling before derating, not a pack rating.

* 35 A × P is the single-cell maximum (35 A, no condition printed, not called continuous [1]) times the cells in parallel. Wh = 9.0 Wh minimum [2] × S × P; mass counts cells only. [1] §8 recommends a protection circuit: overcharge protection under 4.3 V per cell, over-discharge protection at 2.5 V per cell, and over-temperature protection that stops charge and discharge. Derate, then size the BMS, fusing and interconnects for the derated current. Use matched cells of one model and lot; [1] §7.4.2 says “Do NOT mix different cell types or manufacturers within a battery pack.” A pack you build needs its own UN38.3 testing before it ships as UN3480.

11SIZE AND FIT

Ø18.30 × 65.05 mm, flat top.

Drawn at the upper limits of [1]’s dimensions, 18.30 ± 0.30 by 65.05 ± 0.15 mm, beside nominal outlines of three common formats. Check tight holders against 65.20 mm.

RATED · [1]FIG 11.1

Drawn to scale

14500nominal18650nominal21700nominalP26A65.20 mmupper limit [1]Ø18.60 mmupper limit [1]

All outlines drawn to the same scale. The P26A at 18.60 by 65.20 mm, the upper limits of [1]’s tolerances (our arithmetic); the other outlines are nominal format sizes, for scale only.

Dimensions
DIMENSION VALUE CONDITION
Diameter 18.30 mm ± 0.30 mm, so 18.00–18.60 mm [1] §2.4.2
Height 65.05 mm ± 0.15 mm, so 64.90–65.20 mm [1] §2.4.2
Mass 48.0 g “48.0 (Max)” [1]; no typical mass printed
Terminal Flat top flat positive end, as drawn in [1] §2.4.3, with no raised button; [1] names no terminal style
Top insulator, inside Ø 10.85 min. unit not printed: “ø10.85 TO INSIDE OF TOP INSULATOP,MIN.”; vent holes “ø7.42 TO INSIDE OF VENT HOLES” [1] §7.3.1
Volume 17.7 cm³ π × (18.60 mm ÷ 2)² × 65.20 mm = 17,716 mm³ = 17.7 cm³, the upper-limit envelope

Check that your holder or device fits a flat-top cell 65.20 mm long, the upper limit of 65.05 ± 0.15 mm [1]. Spot-weld nickel strip for packs; don’t solder to the cell. [1] §7.4 asks pack builders to “prevent sparking during welding” and not to “over-stress or rotate at positive terminal”.

12USE IT RIGHT

Keep it inside its ratings.

What this cell is, and how to use it within its ratings.

  • This is a bare cell: a component for protected packs and devices built for it. It is not a standalone consumer battery and not for vaping.
  • Flat top, unprotected. Check that your device takes a flat-top cell 65.20 mm long, the upper limit of [1]’s height.
  • Charge on a lithium-ion (Li-ion) charger that stops at 4.2 V. Stop discharging no lower than 2.5 V [1].
  • Stay inside the printed limits [1]: 35 A maximum discharge and 6 A maximum charge, both with no condition printed, so plan for less; 2.6 A rated charge; charge between 0 and 60 °C and discharge between −40 and 60 °C.
  • Replace a torn wrap before use. Carry cells in a case, never loose.
  • For packs: matched cells of one model and lot, a BMS, fusing, and a way for heat to leave. [1] §8 recommends a protection circuit with overcharge, over-discharge and over-temperature protection.

Questions? Call 1-800-547-3050 or text 1-833-419-2192 to ask a person.

Documents

Each posted document is linked as published by its author; versions are listed as printed. The approval sheet [1] is quoted on this page but not linked: Molicel marks every page “-- CONFIDENTIAL --” and “Proprietary of E-One Moli Energy Corp.” To ask about a figure in it, call or text us. The older SDS editions [5][6] and the 2017 UN38.3 report [4] are on file, not linked: they are superseded, and [4] is restricted to its client’s use.

Ships from Stockbridge, GA. Most in-stock orders ship within 1 business day.

13QUESTIONS

Questions, answered.

Short answers. Where an answer comes from a document, it carries its source; the rest is standard handling practice. Anything else: call 1-800-547-3050 or text 1-833-419-2192.

Is the P26A a protected cell?

No. It is a bare cell with no protection circuit. Molicel’s approval sheet covers the cell, not a pack, and recommends assembling cells “in a pack with protection circuit” [1] §8. It says the cell “contains safety and protection devices” [1] §7.3.1 without naming or rating them; the overcharge, over-discharge and over-temperature protection [1] §8.1 asks for has to come from the pack. Use it only in packs with a battery management system (BMS) or in devices built for unprotected cells.

Is 35 A a continuous rating?

Molicel doesn’t call it one. Its approval sheet lists “35A” as the “Maximum discharging current”, with the Remarks cell blank: no temperature cut-off, duration or other condition is printed [1] §4. Its handling section says to discharge “at the specified discharge current listed in section 4.10 or less”, meaning the “35A” line [1] §7.2.3. No Molicel document we hold prints a continuous or pulse rating, or any capacity, cycle-life or temperature figure at 35 A: its capacity minimums stop at 20 A and its cycle-life test runs at 10 A (figs 3.1 and 3.3). It prints no cell-surface temperature limit either, so a thermal cut-off has to come from your pack’s BMS or your device; [1] §8.1.3 asks for over-temperature protection that stops discharge. Treat 35 A as a ceiling, not a working current. A 2017 lab report lists “Max. continue discharge current (A)” 35 in its “Summary of testing” [4]; that is the lab’s wording, not a Molicel rating (section 08).

Is it a 2,600 mAh cell?

2.6 Ah (2,600 mAh) is its typical capacity and 2.5 Ah (2,500 mAh) its minimum, both from a 0.52 A discharge to 2.5 V after the rated charge at 23 °C [1] §4. At higher currents [1] prints lower minimums: 2.40 Ah at 2.6 A, 2.35 Ah at 10 A and 2.30 Ah at 15 and 20 A (fig 3.1). The SDS prints the same 2.60 Ah typical and 2.5 Ah minimum [2]; the UN38.3 report’s cover lists its rating as 2.6 Ah [3].

What is its chemistry?

Molicel’s approval sheet calls it a “Lithium ion rechargeable cell” and gives the designation “INR19/66” without explaining it [1] §2. The SDS covers every Molicel cell, not this model alone: it describes “cells with lithium metal oxide cathodes” (§4.1), lists the cathode as including “one or more of the following:” Lithium Cobaltite, Manganese, Nickel and Aluminum (Table 3), and says “The cathode contains Cobalt and Nickel components.” (§11.7) [2]. No document we hold names a cathode chemistry for the P26A itself, so this page doesn’t either.

How fast can I charge it?

The rated charge is 2.6 A, CC-CV to 4.2 V, ending after 1.5 h or at 50 mA, at 23 °C; [1] gives the charging time as 90 min. [1] also prints a 6 A “Maximum charging current” with no temperature band, time or other condition, and no time, capacity or cycle rating for charging above 2.6 A [1] §4. Charge between 0 and 60 °C [1]. Above 2.6 A, use a charger or BMS that reads cell temperature.

What charger should I use?

A lithium-ion charger with a CC-CV profile (constant current, then constant voltage) that stops at 4.2 V: [1] §7.2.1 specifies the “constant current/constant voltage” method. Not a NiMH, LiFePO4 or lead-acid charger.

How long will it run at my current?

Runtime ≈ capacity ÷ current. From [1]’s minimums, after a full rated charge at 23 °C, a cell that meets them runs at least 4 h 48 min at 0.52 A, 55 min at 2.6 A, 14 min at 10 A, 9.2 min at 15 A and 6.9 min at 20 A (fig 3.2). For your own draw of 20 A or less at 23 °C, divide 2,300 mAh, the lowest minimum [1] prints at 23 °C (at 15 and 20 A), by your current in mA to get hours: at 5 A, 2,300 ÷ 5,000 = 0.46 h, at least 27 min. [1] prints no capacity above 20 A, and lower minimums in the cold: 1,900 mAh at 0 °C and 1,800 mAh at −20 °C, at 2.6 A (fig 4.1).

How does cold affect it?

At 2.6 A after a charge at 23 °C, [1] prints minimums of 1.90 Ah at 0 °C and 1.80 Ah at −20 °C, against 2.40 Ah at 23 and 45 °C [1] §5.2 (fig 4.1). It rates discharge down to −40 °C, notes “reduced discharge voltage” from −20 to −40 °C, and says that at −30 °C or less the cell “will show a significant decrease in discharge capacity” [1] §4, §7.2.3. It prints no minimum below −20 °C. Charge only between 0 and 60 °C [1]: don’t charge below 0 °C.

How many cycles will it last?

[1] rates at least 80 % after 500 cycles (“C500”) of its standard cycle: 2.6 A charge to 4.2 V ending at 50 mA, then 10 A discharge to 2.5 V, with 10 min rest, at 23 °C. Its percent is Ah ÷ 2.35 Ah, so at least 80 % means at least 1,880 mAh at cycle 500, our arithmetic [1] §5.1.4, §5.3. It gives no figure for other currents or temperatures and no end-of-life count. Heat, current, depth of discharge and storage all change the result.

Can I use it in a vape or e-cigarette?

No. It is a bare cell: a component for protected packs and devices built for it, not for vaping. [1] §7.1 lists cordless tools, power tools, electric vehicles and plug-in hybrids (PHEV) as its intended use.

Can I solder to it?

Don’t solder directly to the cell: the heat can damage the seal and internal parts. Spot-weld nickel strip, or use a holder. [1] §7.4 asks pack builders to “prevent sparking during welding” and not to “over-stress or rotate at positive terminal”.

Can I mix P26A cells with other cells?

No, not in the same pack. [1] §7.4.2: “Do NOT mix different cell types or manufacturers within a battery pack.” Use cells of the same model and lot, at the same state of charge. In series, the weakest cell reaches 2.5 V first and limits the whole pack.

How should I store spare cells?

In a case, away from metal objects, somewhere dry. [1] asks for long-term storage below 23 °C at low humidity, and says to charge a cell stored longer than a year at least once a year, to 30 % [1] §7.2.4. Cells ship at no more than 30 % of rated capacity [1] §10. Check the voltage every few months.

How does it ship?

As UN3480, lithium-ion batteries, Class 9, under the SDS [2]; UN3481 when packed with or contained in equipment. AnTek’s UN38.3 report [3] covers the bare INR-18650-P26A cell. A pack built from these cells needs its own UN38.3 testing.

Why isn’t Molicel’s approval sheet linked?

Molicel marks every page of the approval sheet “-- CONFIDENTIAL --” and “Proprietary of E-One Moli Energy Corp.”, so we quote it here and don’t link it. It is the only Molicel specification we hold for the P26A (Rev. 1.2 of 2018; no later revision on file), and no Molicel product data sheet for this cell is on file. Every figure on this page from it is marked [1], and the spec plate gives the section for each rating. To ask about a figure, call or text us. The SDS [2] and the UN38.3 report [3] carry no such marking and are linked.

14SOURCES

Sources and method.

Where every number on this page comes from.

  • + Source: [1] E-One Moli Energy Corp. (Molicel), Approval Sheet, “Cell Specifications of INR-18650-P26A”, Doc # INR18650P26A-01, Rev. 1.2, dated 2018-08-17 (printed “8/17/2018”); on file; quoted here, not linked, because every page is marked “-- CONFIDENTIAL --” and “Proprietary of E-One Moli Energy Corp.” Questions about its figures: call or text us
  • + Source: [2] Molicel, Safety Data Sheet FSSF00058BJ, “Molicel Rechargeable Lithium-ion cells and multi-cell battery packs”; §1.1 prints “Version number: BI”, while its revision list ends at BJ; issued 2025-01-10 (printed “January 10, 2025”); Table 6 lists INR18650-P26A; on file 2026-10-20 · SDS PDF
  • + Source: [3] AnTek Certification Inc., “LITHIUM ION BATTERY SAFETY TESTING REPORT”, report TW1905068-001, model INR-18650-P26A, applicant E-ONE MOLI ENERGY CORPORATION; tests performed 2019-05-17 to 2019-06-12 (printed “May. 17, 2019 – Jun. 12, 2019”); issued 2019-06-25 (printed “Jun. 25, 2019”); to the UN Manual of Tests and Criteria ST/SG/AC.10/11/Rev.6/Amend.1; on file 2026-10-20 · UN38.3 report PDF
  • + Source: [4] Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, Test Report UNT160901C17, INR-18650-P26A, client E-ONE MOLI ENERGY CORP.; issued 2017-02-18; on file, not linked: superseded by [3], and its cover limits it to the client’s “exclusive use”. Quoted for its wording only (the model-code row, the 35 A question and section 08); no rating on this page comes from it
  • + Source: [5] Molicel, Safety Data Sheet FSSF00058AR, issued 2019-12-19 (printed “19-Dec-2019”); superseded by [2]; on file, not linked; used only in section 08
  • + Source: [6] Molicel, Safety Data Sheet FSSF00058AP, issued 2019-04-01 (printed “01-April-2019”; its version field prints “AB”); superseded by [5] and [2]; on file, not linked; used only in section 08
  • + Source: [7] Molicel INR-18650-P30B, Version 1.0 (as printed)
  • + Source: [7] Molicel INR-18650-P28B, no version printed (as printed)
  • + Source: [7] Molicel INR-18650-P28A, Doc # INR18650P28A-01, Rev. 1.2, 2024/05/21 (as printed)
  • + Source: [7] Samsung INR18650-30Q6, Spec. No. INR18650-30Q6, Version 1.0, 2020/06/04 (as printed)
  • + Source: [7] Sony/Murata US18650VTC6, Murata Version 001; ratings from Sony Ver. 0.1, 2015.06.30 (as printed)
  • + Source: [7] LG 18650HG2, BCY-PS-HG2-Rev0, 2014-04-24 (as printed)
  • + Source: [7] Samsung INR18650-25R, Version 1.0, 2016/04/15 (as printed)
  • + Source: [7] Molicel INR-18650-M35A, Doc # INR18650M35A-02, Rev. 0.1, 10/21/2019 (as printed)
  • + Source: [7] Samsung INR18650-35E, Ver. 1.1, July 9, 2015 (as printed)
  • + Source: [7] Panasonic NCR18650GA, SANYO File No. NCR18650-1041, revision (a), 2020/11/30 (as printed)
  • + Source: [7] Panasonic NCR18650B, VERSION 13.11 R1 (as printed)
  • + [7] documents that may be posted are in our data-sheet library or on that cell’s page; confidential ones are quoted only.
  • + Method: none of the documents we hold prints a P26A performance chart; [1] prints tables. Every chart on this page plots a figure printed in [1]–[3] (or [7] in fig 9.1), or arithmetic on those figures with the formula under it; fig 11.1’s other outlines are nominal format sizes, for scale. No line joins printed points, because nothing between them is printed. mAh from Ah is a unit conversion (× 1,000). [1] prints most degree signs as a raised “o”, and quotations from those keep “oC”; its §5.5 and §5.6 tables print “°C” and “ºC”, kept as printed. Each figure was copied from the document and checked against it by a second reading.
  • + Not shown from [1]: its compliance statements (§6), because no certificate or report for them is on file except the UN38.3 report [3]; its warranty clause (§9), which applies to Molicel’s direct customers; and the peak-current sentence in §7.2.3, which gives no figure.
  • + Not on file: a Molicel product data sheet for the P26A. Figures and charts that some listings show from one are not used on this page.
  • + Not shown: lot data. Figures for our own lot will appear only once our incoming-inspection procedure is published, with sample size, instrument and date.

Recently viewed
