Xtar

XTAR VC8S SET - 8 Bay Smart Li-ion Battery Charger

$49.99 $39.99
Stock:
In stock

We Ship Worldwide

Please Contact Us
for a Custom Shipping Quote.

Description

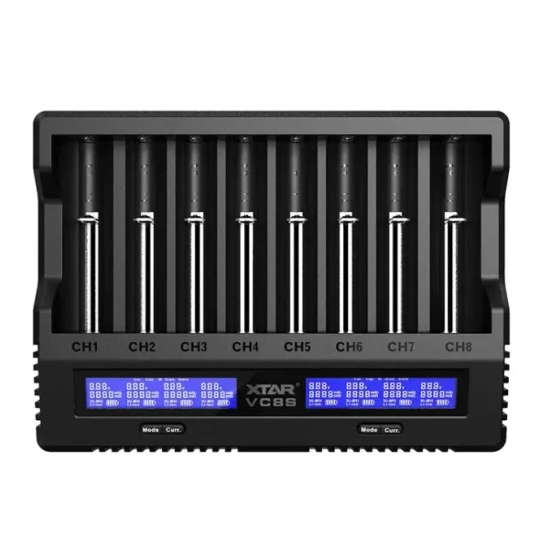

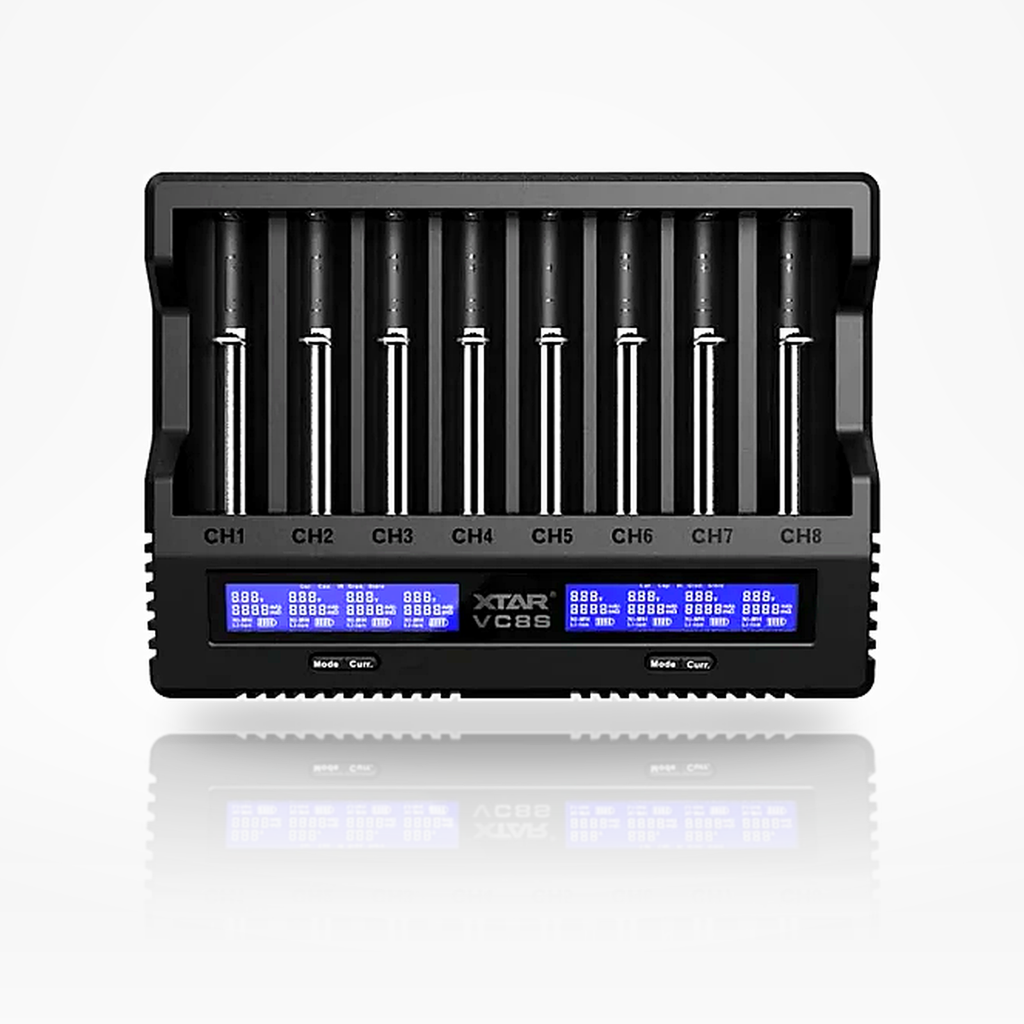

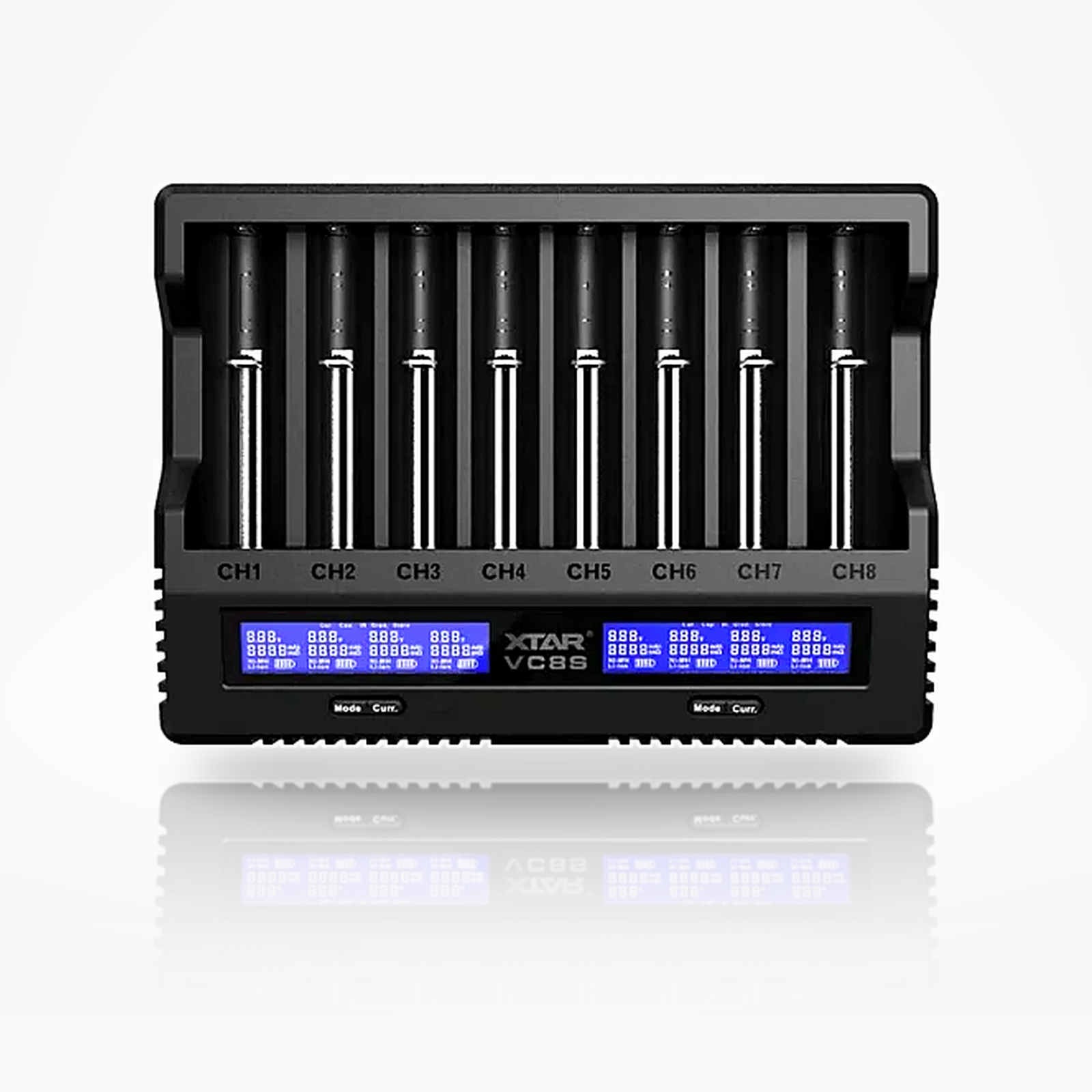

XTAR VC8S – 8 Bay Smart Li-Ion & NiMH Battery Charger
Overview

The XTAR VC8S is an advanced 8-slot smart charger built for users who need fast, accurate, and safe battery management. It charges and monitors up to eight cells simultaneously with independent slot control, and adds battery “health” tools like real capacity testing, internal resistance (IR) testing, and storage mode to help extend battery life and identify weak cells.

Designed for high-demand users (flashlights, photography, field gear, and multi-cell setups), the VC8S supports PD3.0 fast input and delivers up to 3A charging (up to 2 slots) with smart current distribution when more bays are in use.

Key Features

8 Independent Charging Slots: Charge up to eight batteries at once, with intelligent detection and optimized charging per slot.
Real Capacity Test: Measure true battery capacity to spot overrated or aging cells.
Internal Resistance (IR) Test: Quickly assess battery condition and consistency across sets.
Storage Mode: Brings batteries toward proper storage voltage to help maximize lifespan (VC8S supports storage on all 8 slots).
Fast Smart Charging: Up to 3A (x2 slots) with PD3.0 input; intelligent current allocation for multi-slot charging.
Adjustable Charging Current: Manual control over constant charging current when you want slower, gentler charging.
Battery Recovery / Low-Voltage Activation: Helps recover many over-discharged batteries and supports low-voltage activation.
Clear LCD Monitoring: Displays key charging info such as current, voltage, capacity, and internal resistance.
Advanced Safety Protections: Reverse polarity, over-current, over-voltage, over-charge, and short-circuit protections with auto-stop after full charge.
USB-C PD3.0 & QC3.0 Input Support: Recommended PD3.0 (15V/3A), with QC3.0 support.

Specifications

Specification Details
Brand XTAR
Model VC8S
Battery Types Supported 3.6V/3.7V Li-ion (IMR/INR/ICR) & 1.2V Ni-MH
Supported Battery Length 30–80mm
Compatible Battery Sizes (Li-ion) 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650
Compatible Battery Sizes (Ni-MH) AAA/AA/A/SC/C (XTAR comparison list)
Protected 21700 Support Yes
Input Power PD3.0 (15V/3A recommended); QC3.0 (9V/2A) / 5V/2A
Charging Current 3A×2 / 2A×4 / 1A×8 / 0.5A×8 / 0.25A×8
Termination Voltage 4.20V ±0.05V (Li-ion) / 1.45V ±0.1V (Ni-MH)
Termination Current <150mA
Operating Temperature 0–40°C
Functions Charging, Capacity Test (8 slots), Storage Mode (8 slots), IR Test, Low-Voltage Activation
Safety Features Reverse polarity, over-current, over-voltage, over-charge, short-circuit, auto-stop
Dimensions 210mm × 152mm × 39mm
Weight 452g

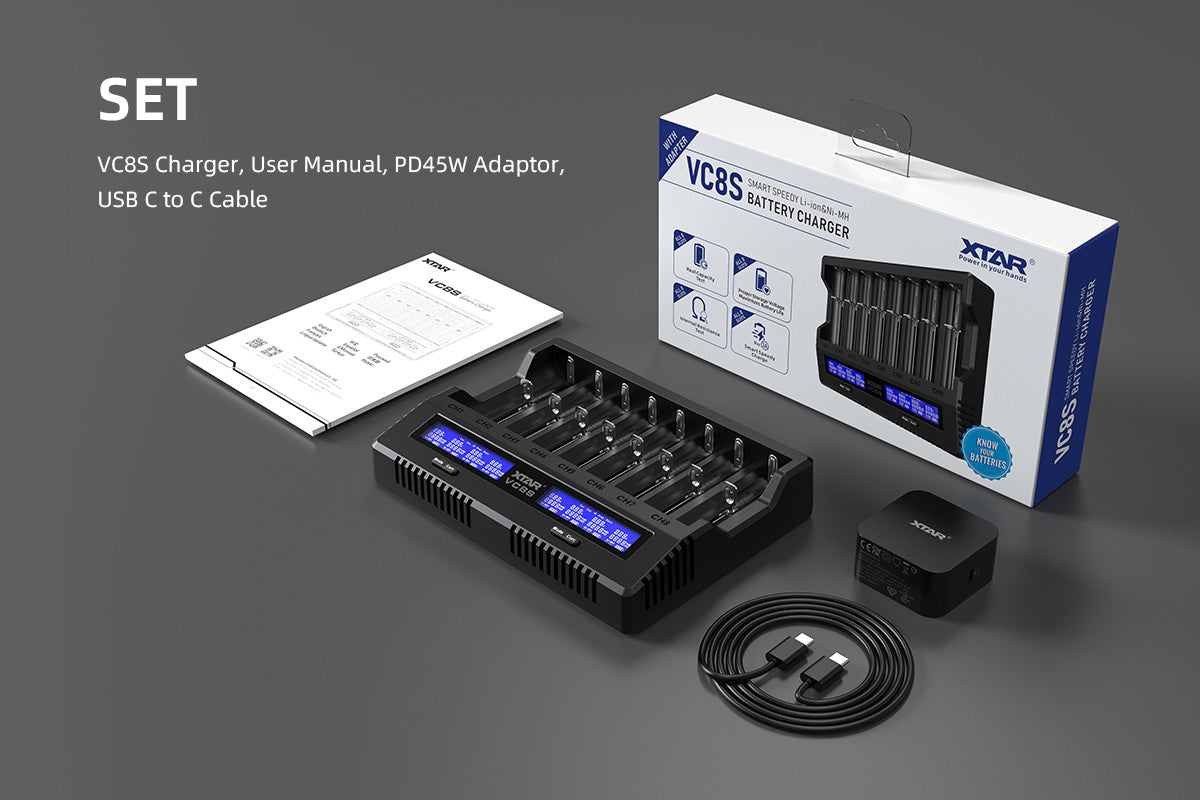

Package Contents (varies by kit) VC8S charger, USB-C to C cable, USB-A to C cable, manual (some kits include PD45W adapter)

Applications

The XTAR VC8S 8 Bay Smart Charger is ideal for:

Flashlights & Tactical Gear – Keep multi-cell sets balanced and verify real capacity before critical use.
Photography & Video Equipment – Manage multiple rechargeable cells with fast PD input and clear status monitoring.
Battery Maintenance & Testing – Capacity + IR testing helps identify weak cells and organize matched sets.
Multi-Battery Users – Charge up to 8 cells at once, including protected 21700 support for modern high-capacity batteries.

Safety Guidelines & Warnings

IMPORTANT SAFETY NOTICE ️
The XTAR VC8S is designed for rechargeable 3.6V/3.7V Li-ion (IMR/INR/ICR) and 1.2V Ni-MH batteries only. Always follow safe charging practices to reduce risk of fire, overheating, or injury.

General Safety Guidelines

Use only compatible rechargeable batteries—never attempt to charge non-rechargeable cells.
Use a quality power source—PD3.0 (15V/3A) is recommended for best performance.
Insert batteries with correct polarity; reverse insertion can damage batteries or charger (even with protection).
Charge in a well-ventilated area and keep away from flammable materials.
Unplug when not in use.
Prohibited Uses & Handling
DO NOT expose the charger to water, extreme heat, or direct sunlight.
DO NOT use damaged batteries, damaged cables, or a damaged power adapter.
DO NOT disassemble, modify, or tamper with the charger.
DO NOT leave charging batteries unattended for long periods.

User Responsibility & Risk Acknowledgment
Lithium-ion batteries require proper handling. The user assumes responsibility for safe use, storage, and charging practices. Always follow manufacturer recommendations for both the charger and the batteries used.

Charge smarter, test accurately, and extend battery life with the XTAR VC8S. ⚡
