Description
INR-18650-P26A Discontinued - no longer in production.
INR-18650-P28A - Updated model is available, click here

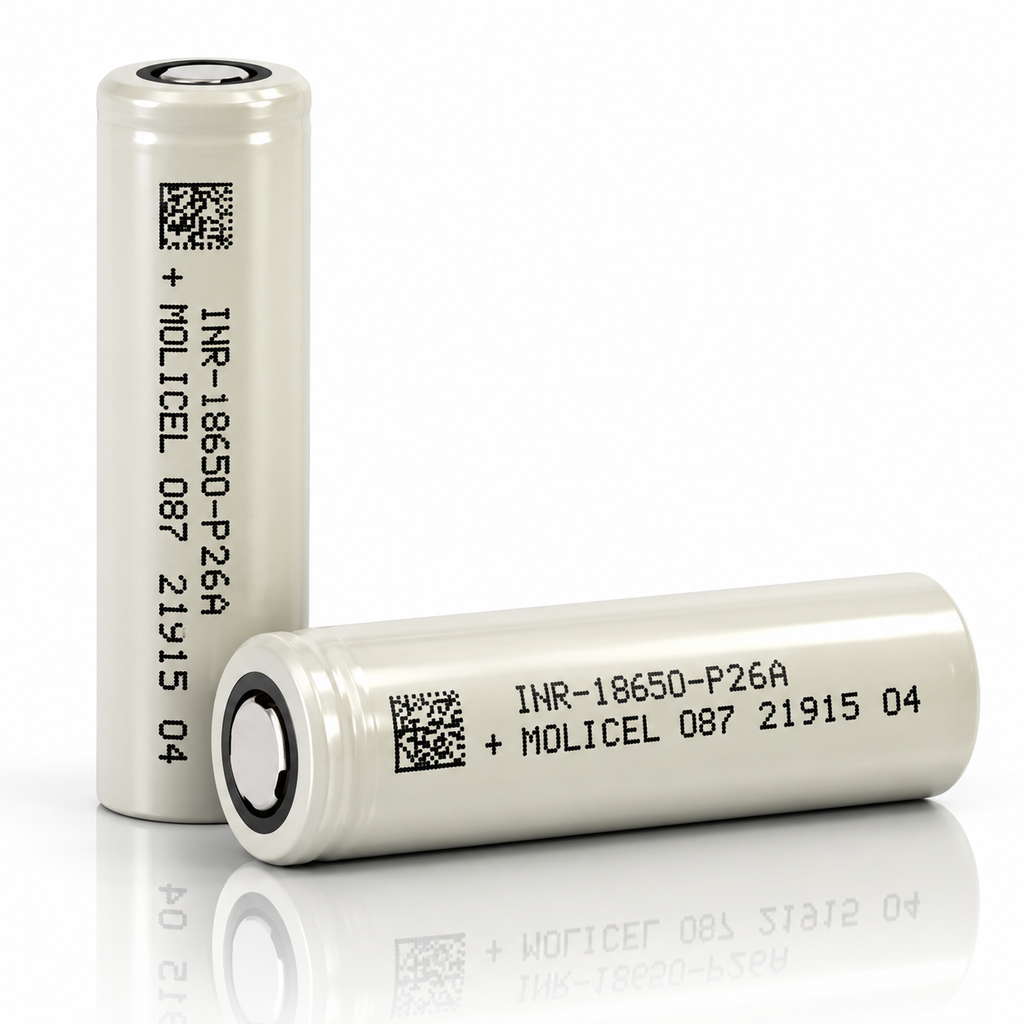

Molicel P26A 18650 2600mAh 35A Battery
This is one of the newer and highly anticipated cells out by a major manufacture and it hits a Grand Slam with its first at bat. This cell makes a typical capacity of 2,600 mAh in energy with up to a whopping 35 amps in Maximum Continuous Discharge/Drain Rating. Although you may get a somewhat shorter cycle life at this given amperage, but the cell is made to handle that kind of load without any issue. This is the hardest and longest hitting cell in the 18650 form factor size that has more than 2,000 mAh in capacity. It hits the hardest through the entire duration of the discharge when seen on the discharge with capacity graph versus any of its competitors. This is the Best All-Around cell in the 18650 form factor size for Ultra-High Discharge/Drain while having moderate-high capacity as well.Molicel Ultra-High Power Cell Series
- High Discharge current
- Exceptional cycle life
- Low temperature operation down to -40°C
- High thermal stability, high reliability
- Very low impedance
- Fast Charge Capability
Specifications:
| Manufacturer | Molicel |
| Model | P26A |
| Size | 18650 |
| Positive Terminal |
Flat Top |
| Nominal Capacity | 2600mAh |
| Continuous Discharge Rating (max) | 25A max , 35A w/ temp cutoff |
| Continuous Current Rating (max) | 75W max, Recommended 55W for good performance and cycle life |
| Nominal Voltage | 3.6V |
| Maximum Voltage | 4.2V |
| Discharge cut-off Voltage | 2.5V |
| Protected | No |
| Rechargeable | Yes |
| Approx. Dimensions | 18.3mm x 65.05mm |
| Approx. Weight | 45.8g |
| Country of Origin | Taiwan |
| Associated Names | INR-18650-P26A |
| Data Specification Sheet |
Molicel P26A Datasheet |
WARNING:
The user must have appropriate understanding of lithium ion batteries before purchase. Use caution when working with and using lithium ion batteries as they are very sensitive to charging characteristics and may explode, burn, or cause a fire if misused or mishandled. Always charge in or on a fire-proof surface. Never leave batteries charging unattended. Buyer is responsible for any damage or injury caused by misuse or mishandling lithium ion batteries and chargers. No express or implied guarantee of compatibility with any device can be made. Charge only with a smart charger designed for this specific type of lithium ion battery. Do not mix and match old and new, used and unused batteries.
- DO NOT USE WITH E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICE
- MISUSING OR MISHANDLING LITHIUM ION BATTERIES CAN POSE A SERIOUS RISK OF PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH
- BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
- ONLY USE WITH PROPER CIRCUITRY IN A PROTECTED BATTERY PACK
- ONLY USE WITHIN MANUFACTURER LISTED SPECIFICATIONS
- DO NOT STORE LOOSE BATTERY IN A POCKET, PURSE ETC. - ALWAYS USE A PROTECTIVE CASE OR BOX
- KEEP AWAY from metal objects to prevent short circuiting
- DO NOT short circuit
- DO NOT use if wrapper or insulator is damaged or torn
- DO NOT use if damaged in any way
- DO NOT overcharge or over-discharge
- DO NOT modify, disassemble, puncture, cut, crush, or incinerate
- DO NOT expose to liquids or high temperatures
- DO NOT solder, spot weld only
- User must be familiar with handling lithium ion batteries before purchase
- Usage of batteries is AT YOUR OWN RISK
- ALWAYS charge in or on a fire-proof surface and never leave charging batteries unattended
- RESELLERS MUST FORWARD ALL WARNINGS TO ALL CUSTOMERS FOR THEIR REFERENCE AND SAFETY
