REPT 280Ah Grade B Cells - 3.2V LiFePO4 Battery - ETA DEC 7

Sale price$115.00

Price:
Stock:
Re-stocking soon

WE SHIP WORLDWIDE, PLEASE CONTACT US FOR A CUSTOM SHIPPING QUOTE.

ESTIMATED SHIP DATE - DEC 7

Price is per battery

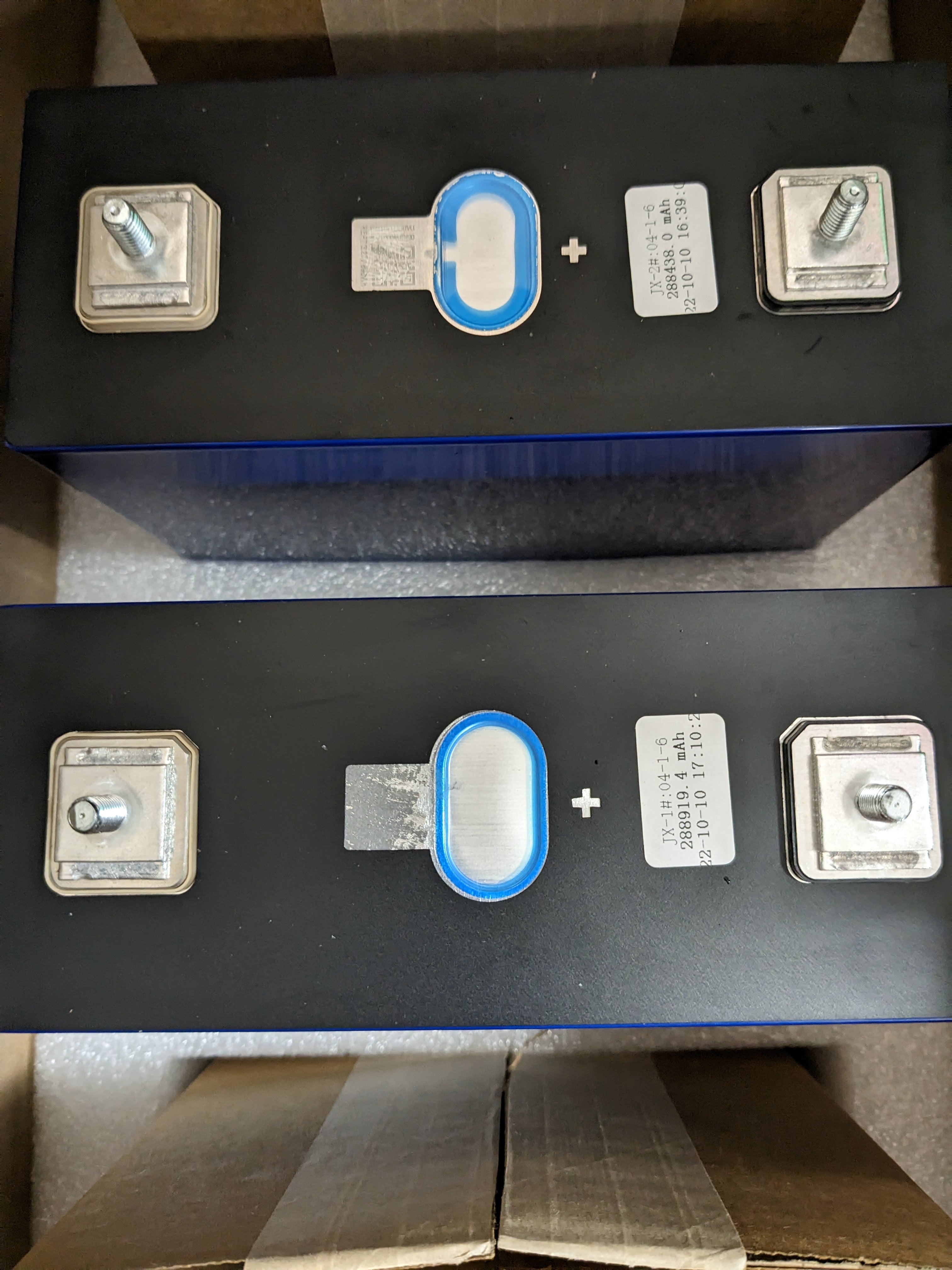

Grade B Cells - Original QR Code is scratched out

BRAND NEW CELLS - Capacity tested - sorted and matched.

Guaranteed to pull 280Ah+

1 Busbars and 2 nuts included per battery.

30 day warranty, moneyback guarantee.





Typical Capacity

≥280Ah (0.5C)

25±2



Typical Voltage

3.22C



Operating Voltage

0~55℃:2.5-3.65V

-30~0℃:2.0-3.65V



Standard Discharging Current

140A

25±2

Maximum Continuous Discharging Current

280A

25±2

Maximum Discharging Current

560A

@60sSOC ≥20%

Standard Charging Current

140A

25±2

Maximum Continuous Charging Current

280A

25±2

Maximum Charging Current

560A

@60sSOC ≤80%

Operating Temperature

Charge: 0~55

Discharge: -30~55



Storage Temperature

-30~60

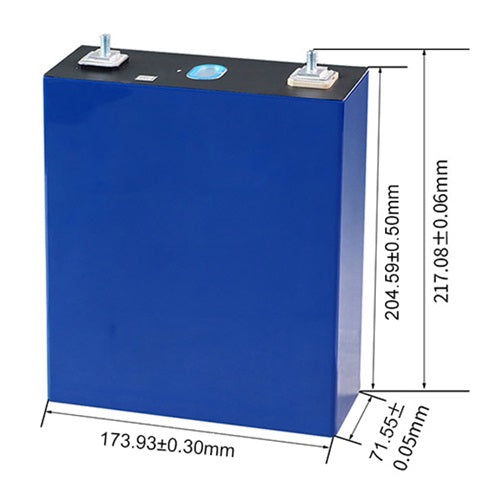

Typical Dimension

Thickness: 71.55mm

Width: 173.93±0.3mm

Shoulder Height: 204.59±0.5mm

Total Height: 207.23±0.5mm



Cathode Material

LiFeO4



Cell Weight

5.34±0.15kg



Energy Density

165Wh/kg



Internal Resistance1KHz

0.30mΩ
