EVE LF230 Grade A Cells - 3.2V LiFePO4 230Ah Battery (Pack of 4) - ETA OCT 25

Sale price$599.00

Set: 4 Pack of Batteries - Busbars and Screws Included
Price:
Stock:
Re-stocking soon

Pickup available at Stockbridge, GA - Warehouse

Usually ready in 24 hours

WE SHIP WORLDWIDE, PLEASE CONTACT US FOR A CUSTOM SHIPPING QUOTE.

WAREHOUSES IN THE UK, EU AND HK.

Warranty Policy

PRE-ORDER

ESTIMATED SHIP DATE - OCT 25th

Sold in a PACK OF 4

    • BRAND NEW, GRADE A CELLS

    • Matching Voltage, Capacity, Internal Resistance

    • 4 Busbars Included (Nickel Plated Copper) + 16 nuts and bolts

     EVE LF230

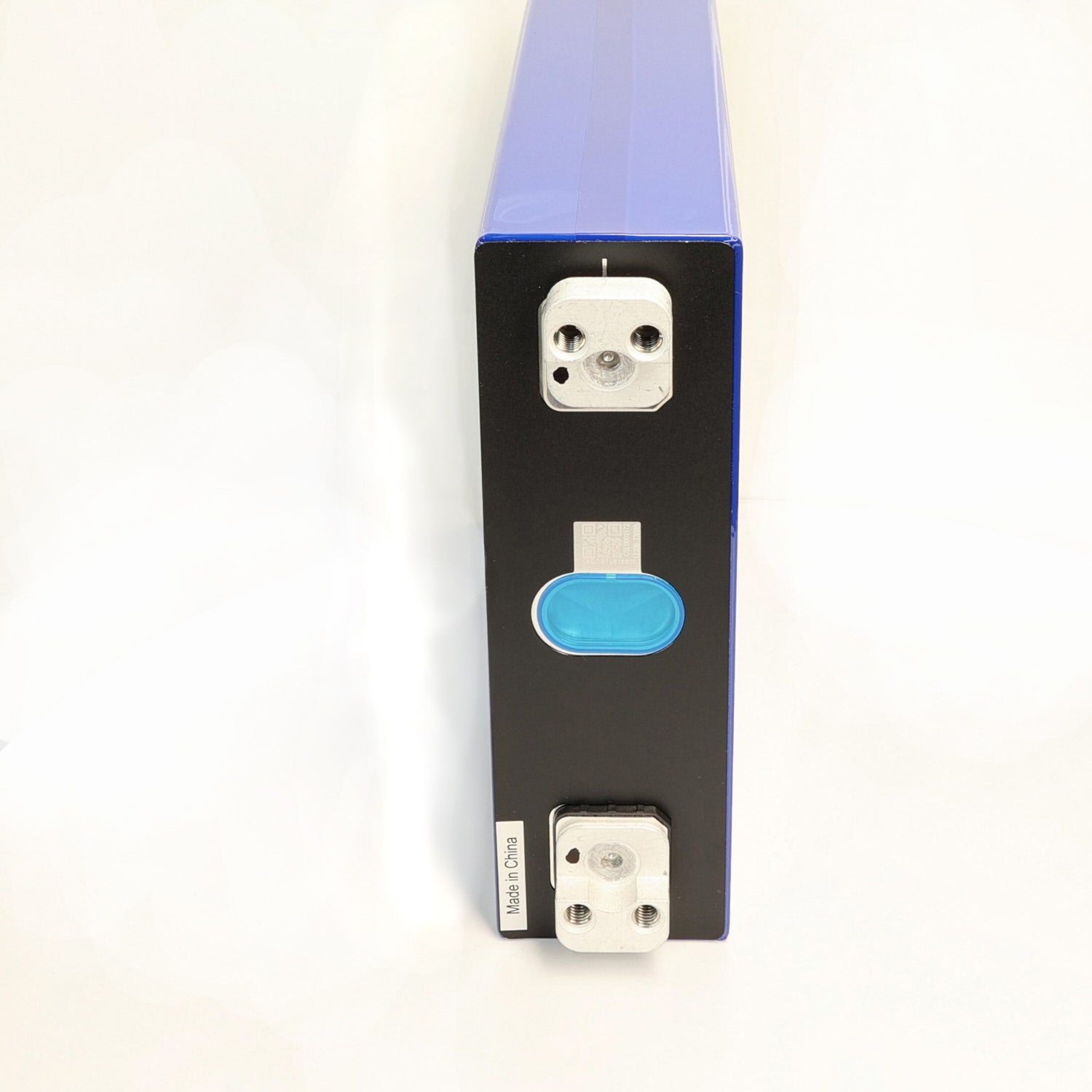

    EVE terminal

    EVE LF230

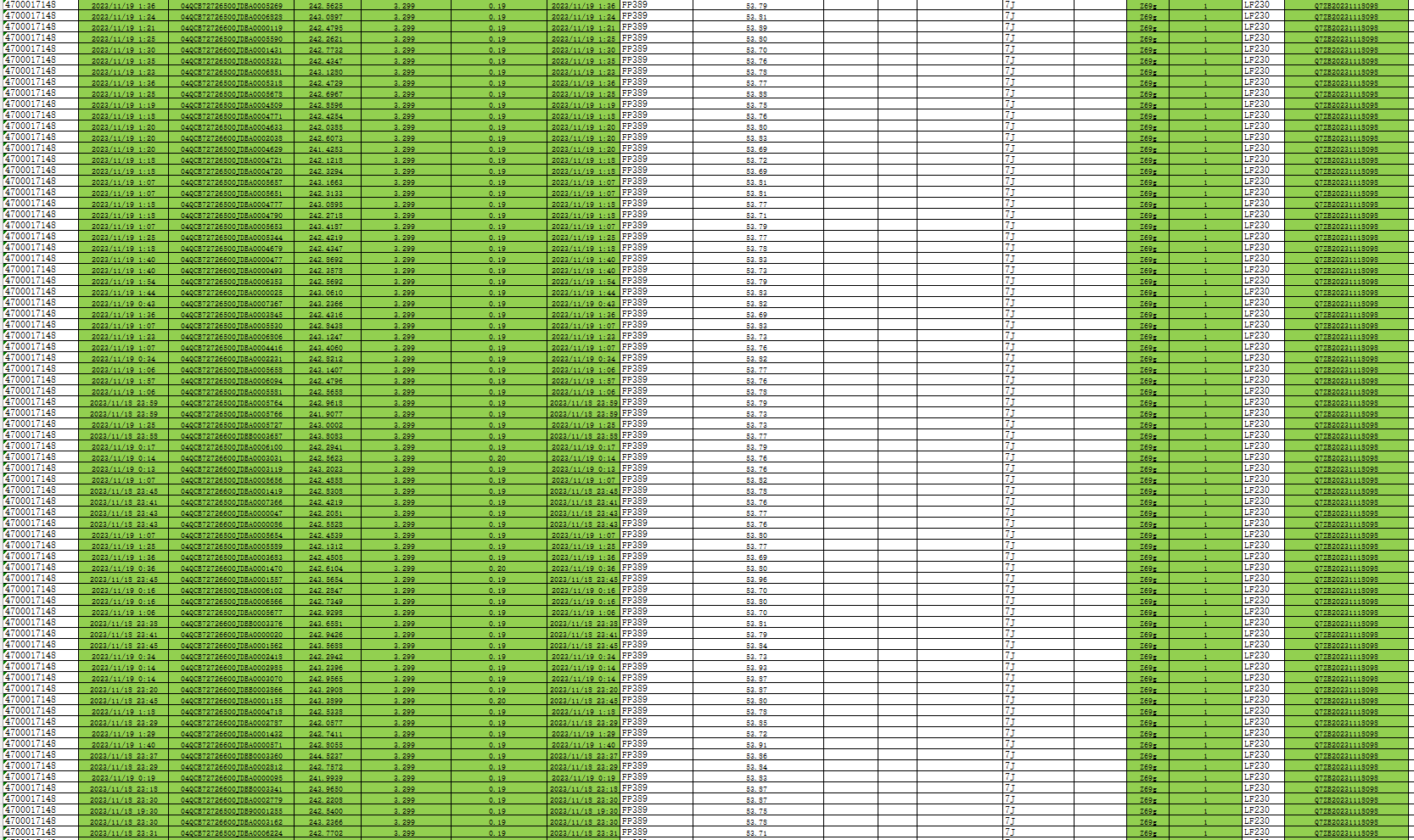

    FULL EXCEL REPORT AVAILABLE BY REQUEST

    EVE LF230 excel file

    Specifications:

    Manufacturer EVE Energy
    Model LF230
    Form Prismatic
    Nominal Capacity 230Ah
    Continuous Charge/Discharge Rating 1C (230A)
    Maximum Charge/Discharge Rating (30 Seconds) 2C (460A)
    Cycle Life 4,000 cycles
    Nominal Voltage 3.2V
    AC Impedance Resistance (1KHz) 0.30mΩ
    Protected No
    Rechargeable Yes
    Approx. Dimensions (LxWxH) 173.93mm x 53.85mm x 207.3mm
    Approx. Weight 4,110g
    Country of Origin China
    Associated Names EVE 230Ah
    Data Specification Sheet EVE LF230 Datasheet

    Frequently Asked Questions

    The outbound quality control report is done by all manufacturers and tests electrical performance metrics to ensure they meet all standards.

    The cells are tested many times throughout the manufacturing process but EVE will only provide us with the final test report which is done just prior to them leaving the EVE facility.

    Because the EVE LF280K we offer include the EVE Dual screw terminal block, which is manufactured and installed by EVE, our cells get sent to the EVE pack building production line for this process.

    The outbound quality control test report we provide is completed by the pack building production line and may appear slightly different from the report done by the cell production line. (ie. Our EVE LF105 cells).

    Other vendors will choose to have the terminal welds done themselves or by a third party. In this case, EVE will only provide the green/yellow quality control report from the cell production line.

    Additionally, EVE cannot file for a dangerous goods export certificate once the cells leave their facility and go to a third party facility in China for processing. That third party facility will be the one required to file for a dangerous goods export certificate or what is often the case, they will choose to ship the cells undeclared and illegally (duty free AKA special line).

    In our experience, once you introduce a third party facility to apply spec result stickers, custom logo packaging and weld onto your cells, it opens the door for many bad possibilities.

    The cells we offer have not been handled by ANYONE besides EVE Energy and us ensuring 100% certainty you will get the Grade A cells you are expecting with 10+ years design life!

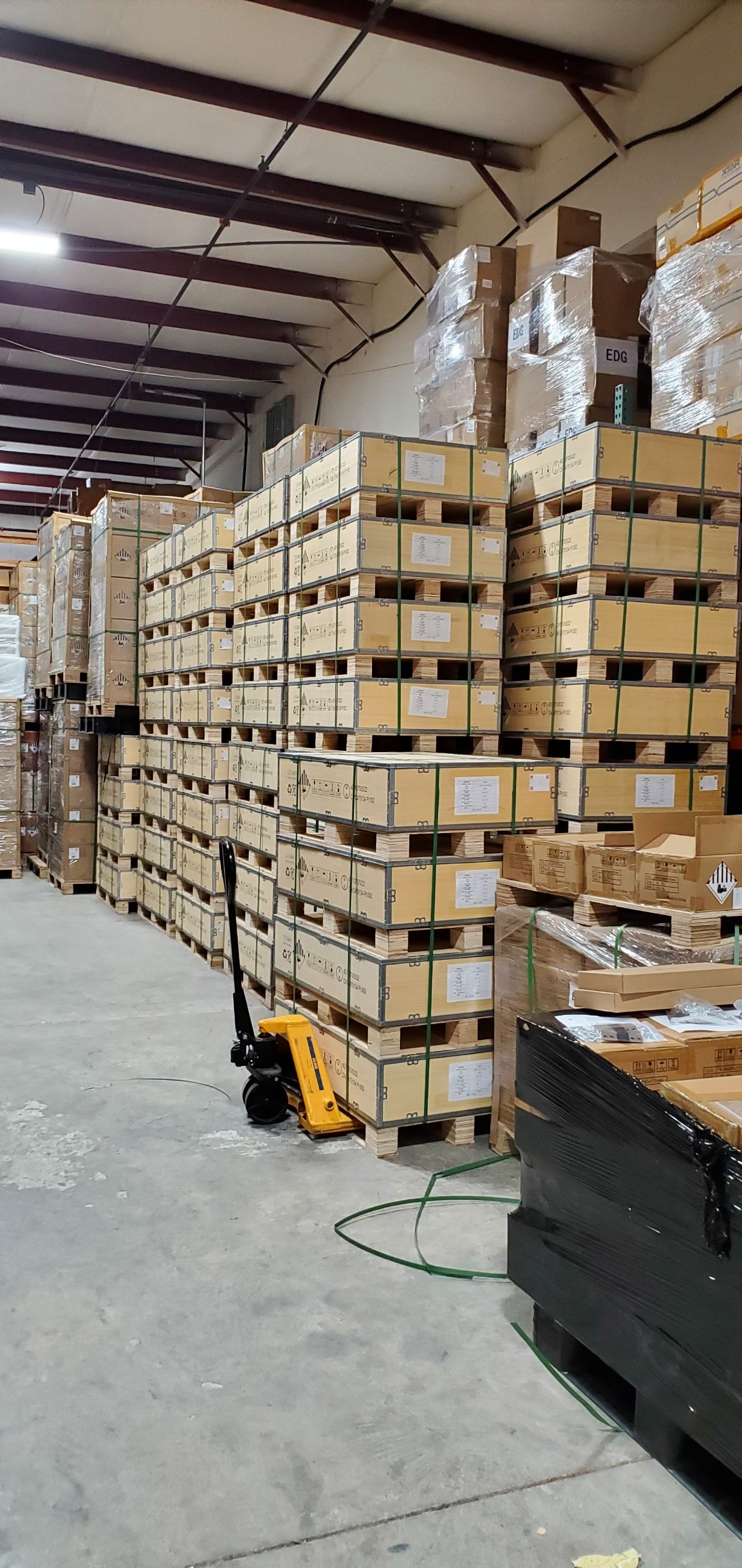

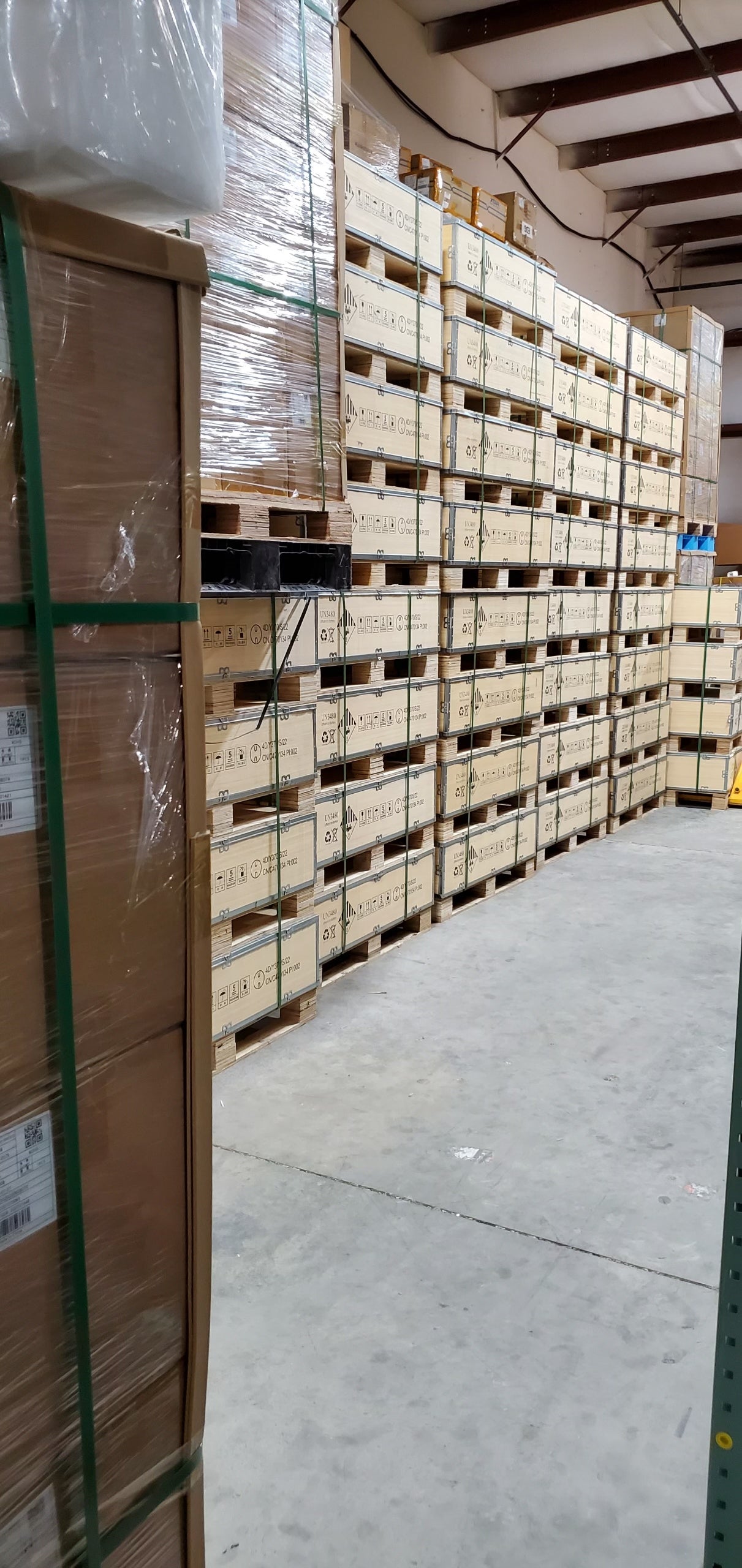

    Our EVE LF280K cells are shipped to us in wooden crate pallets which provide the greatest level of protection during the long sea freight process.

    We are able to offer the cells in these crates for larger purchases.

    *Please note they come 40pcs per crate.


    For smaller orders, we will repackaged into custom foam packaging we have designed. This ensures for a safe transit during the domestic shipping process.
