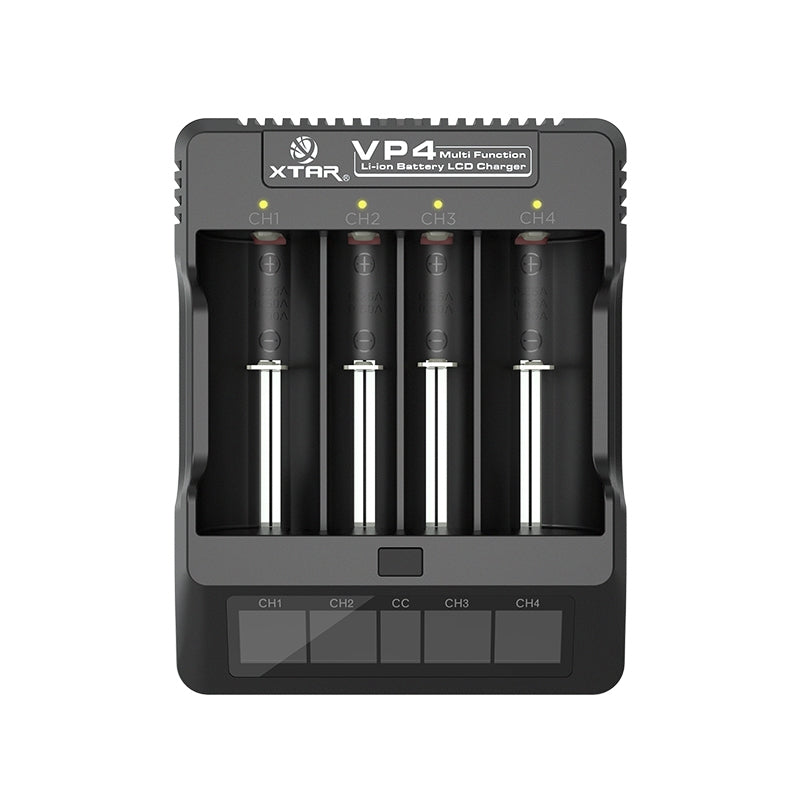

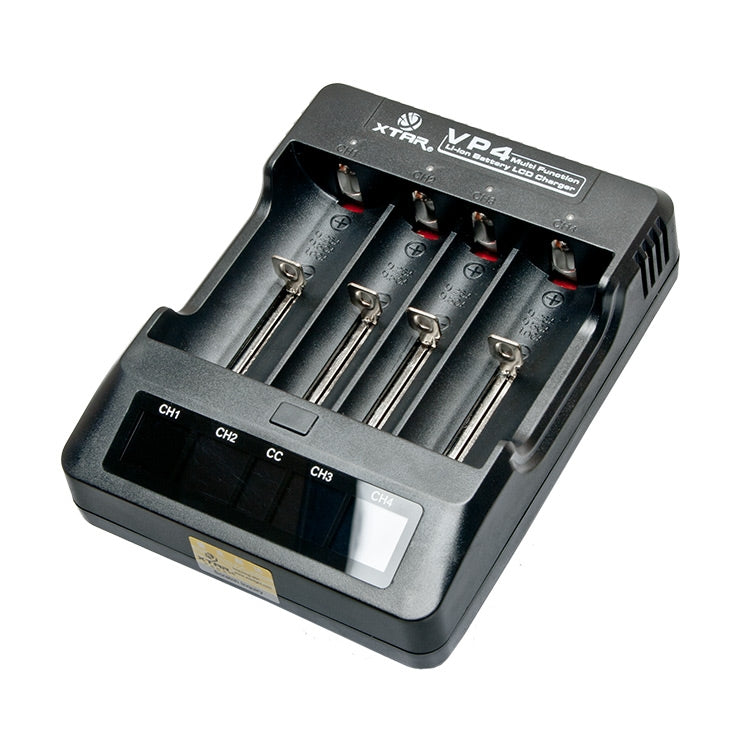

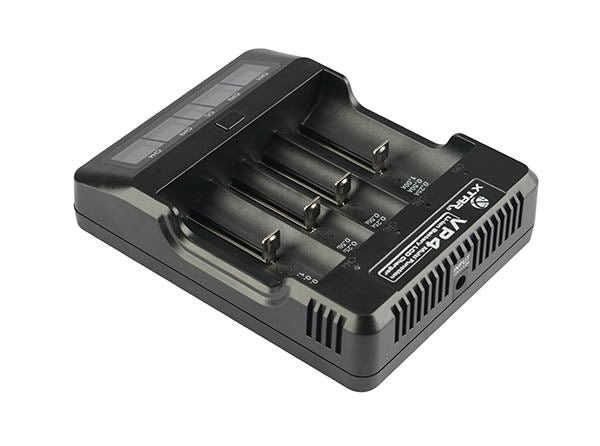

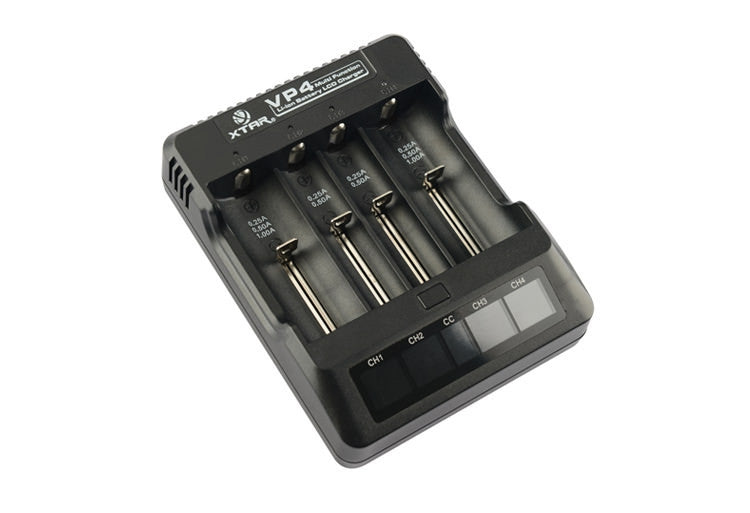

XTAR VP4, four-bay charger for Li-ion cells. It charges at 0.25 or 0.5 A in all four bays, or at 1 A in the outer two, and stops Li-ion cells at 4.2 V. The LCD shows the charge status.
Every rating, with its source.
| RATING | VALUE |
|---|---|
| Bays | 4, each charged on its own |
| Charge current | 0.25 A × 4, 0.5 A × 4 or 1 A × 2. The 1 A rate is in the outer two bays only. |
| Chemistries | 3.6 V Li-ion |
| Cut-off voltage | 4.20 V ± 0.05 V |
| Charge method | Three stages: TC, CC, CV |
| Input | 12 V DC, 1.0 A |
| Cell sizes | 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650 |
| Display | LCD with a 120° viewing angle |
| Protection | Reverse polarity, short circuit |
| 0 V activation | Yes: see the note below |
| Size and weight | 147 × 115 × 35 mm; 218 g without batteries and power cord |
| In the box | Charger, wall cable, car adapter, user manual, validation serial number |
Source: XTAR's specification, as carried in our listing.
Use it inside its ratings.
- Check the charge current against the cell's data sheet before you charge. Small cells need the 0.25 A setting.
- Our listing names Li-ion cells with a 4.2 V cut-off. It does not name Ni-MH, LiFePO4 or 4.35 V cells.
- 0 V activation starts reviving an over-discharged cell on its own. A cell that sat flat can be damaged even if it takes a charge: check a doubtful cell with a meter first, and recycle it rather than revive it.
- Charge on a surface that does not burn, and stay nearby while cells charge.
- Questions? Call 1-800-547-3050 or text 1-833-419-2192 to ask a person.
From the maker.










Ships from Stockbridge, GA. Most in-stock orders ship within 1 business day.
