Description
7 Years Warranty,4000~8000 Cycles Life Span,Free Maintenance.
FREE SHIPPING within the US
SEARCH "ABC-BMS" in the app store

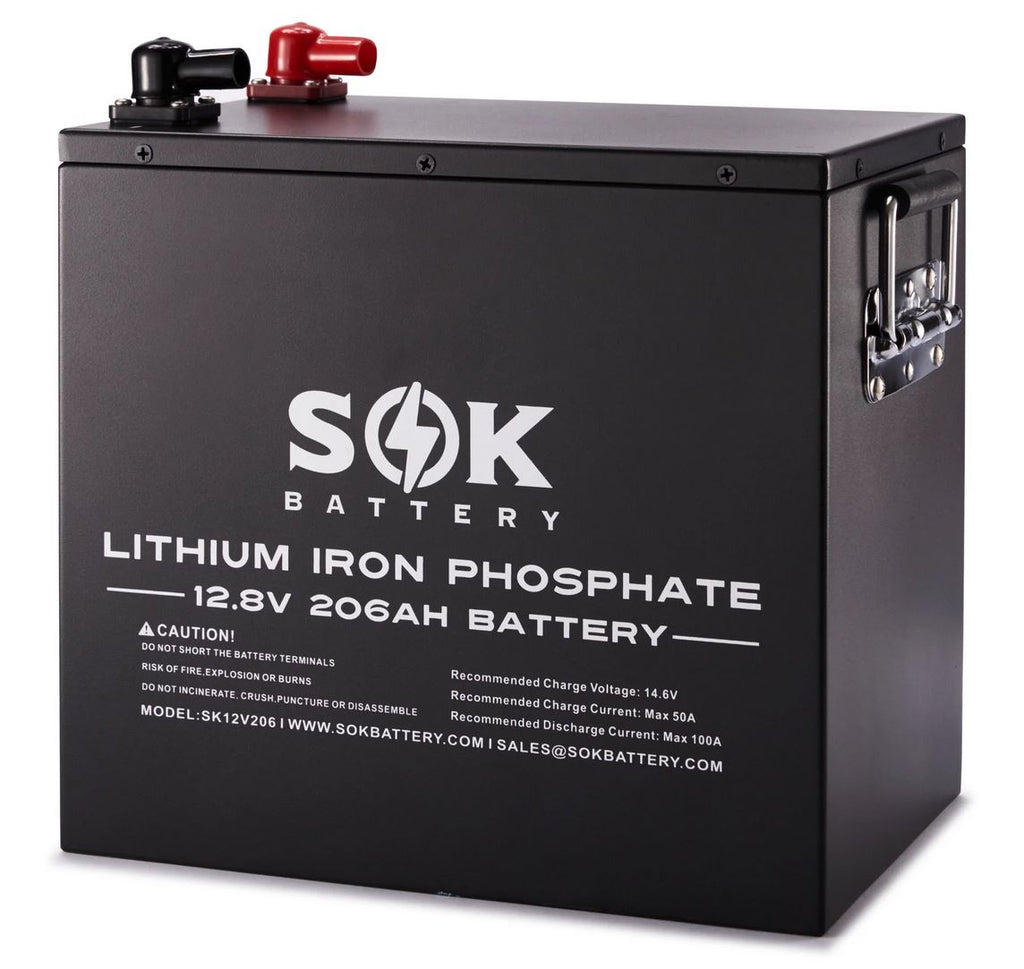

Model: SK12V206
Detachable Cover,Replaceable BMS or Cells.
Connect in series for 24V or 36V or 48V Battery Bank, or Connect in Parallel for Larger Capacity.
Built-in Smart Battery Management System.
Low Temperature Charging Cut-off.
High Temperature Charging or Discharging Cut-off.
Over Charging or Discharging Protection.
Over Current & Short Circuit Protection.
Battery Cells Auto Balance.
Charge Voltage:14.6V
Max Charge Current: 50 A
Max Discharge Current:100 A
Notice for connect in series: If you need connect batteries in series, they should be at the same state-of-charge (SOC)before they are connected.
Spec Information
Charge information:
Recommend charge current: 40A
Maximum charge current: 70A
Recommend charge voltage:14.4V ~14.6V
Maximum batteries in series: 4 PCs batteries.
Maximum batteries in parallel: 10 PCs batteries.
Discharge Information:
Maximum continuous discharge current: 100A
Peak discharge current: 200A(3 seconds)
Recommend low voltage disconnect: 11.2V
BMS discharge cut-off voltage: Around 10.4V
Reconnect Voltage:>11.6V

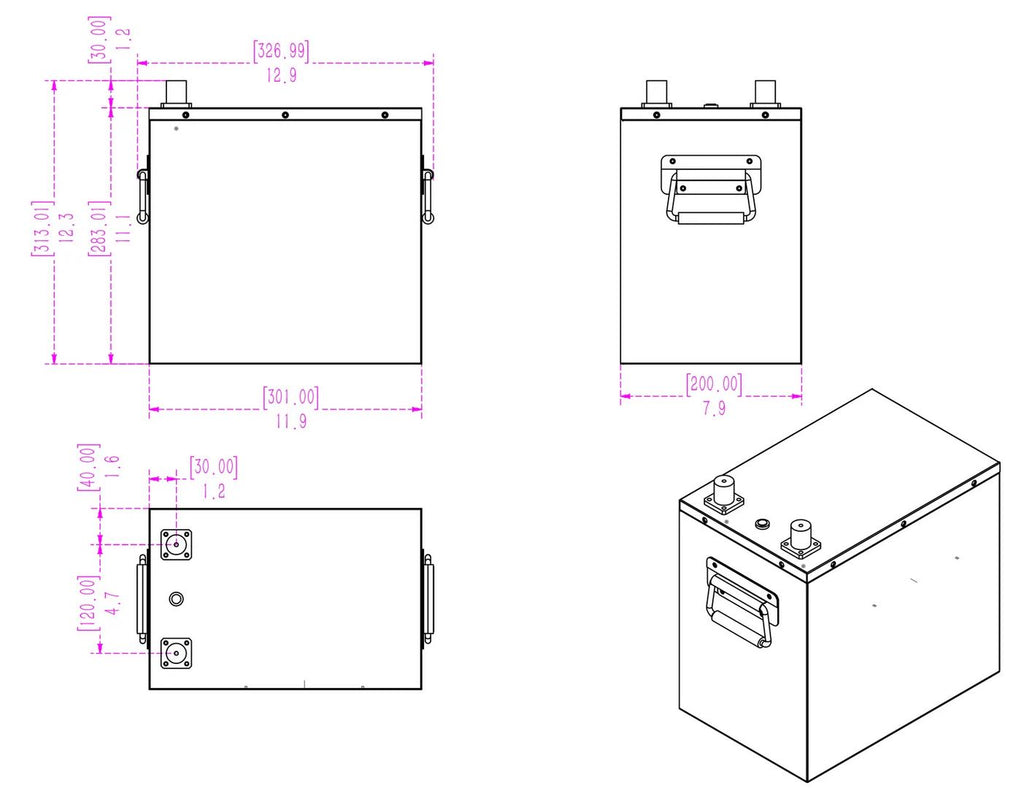

Size Information:
Terminal Type: M8, 5/16 lugs
Weight: 48 lbs.
Temperature Information:
Discharge temperature:-4°F~140°F
Charge temperature: 32°F~113°F
Recommend storage temperature:23°F~95°F
Certifications Information:
UL1973&IEC62619 for Battery cells
