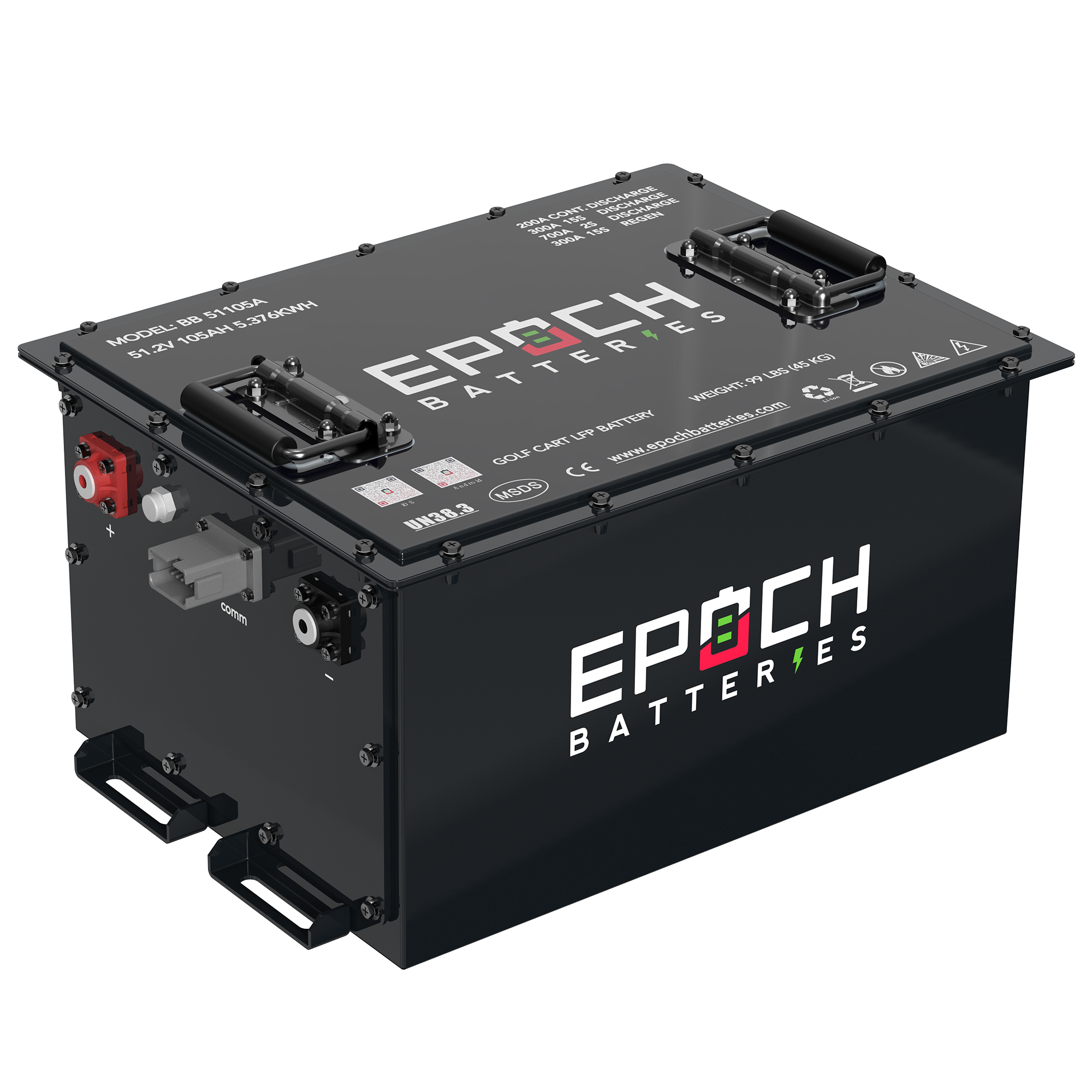

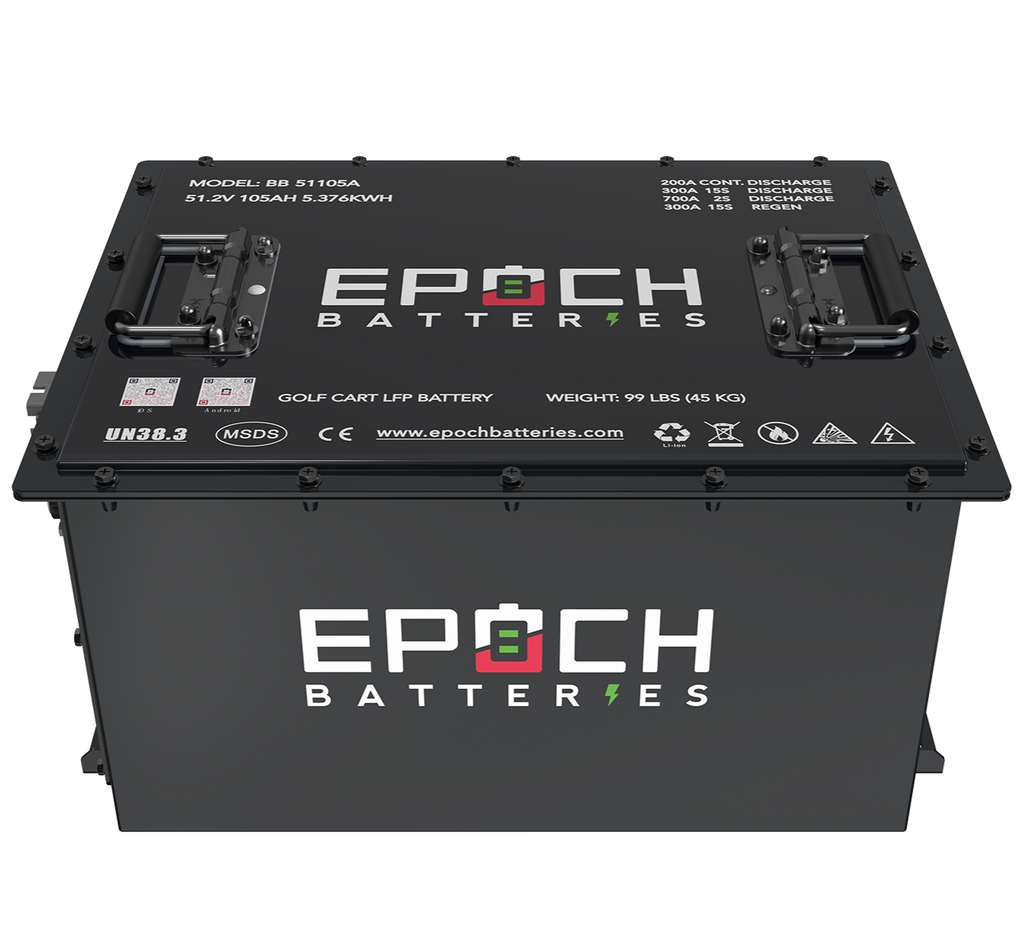

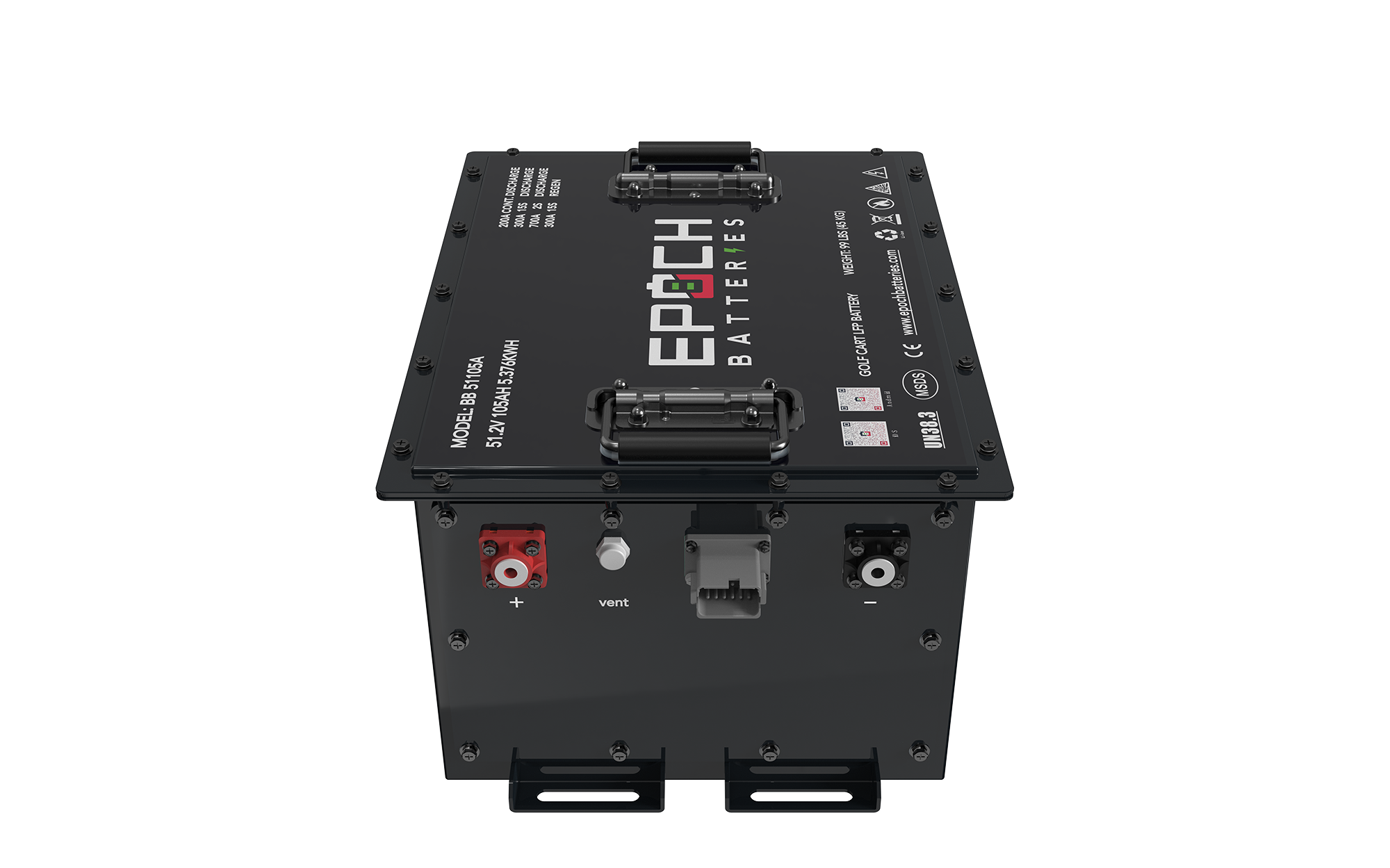

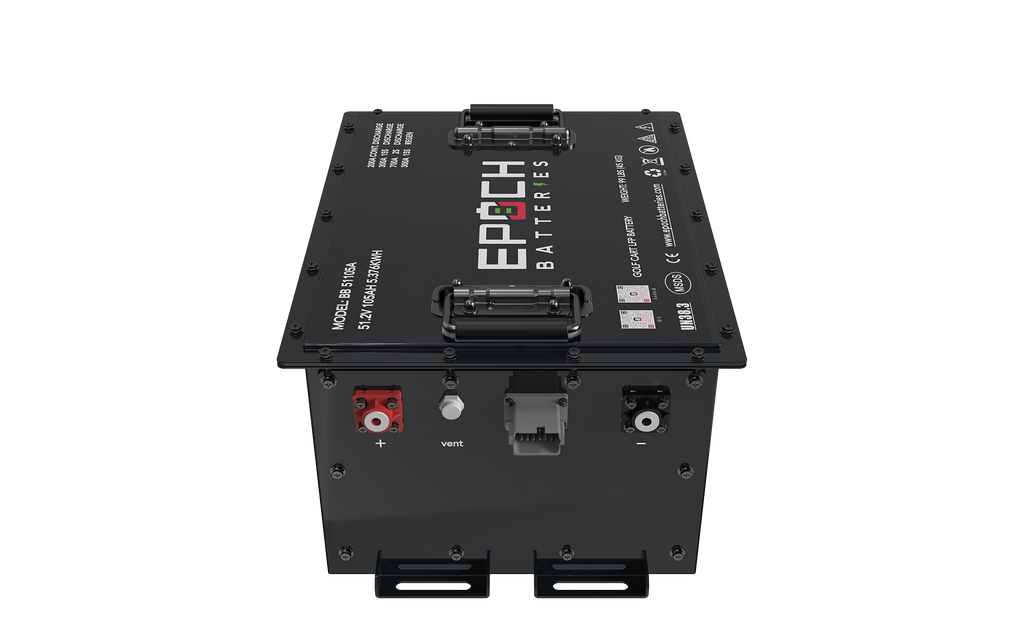

🔋 Complete Lithium Conversion Kit – 48V 105Ah
Everything You Need for a Complete Lithium Upgrade. Power, precision, and plug-and-play integration for golf carts and off-grid mobility.

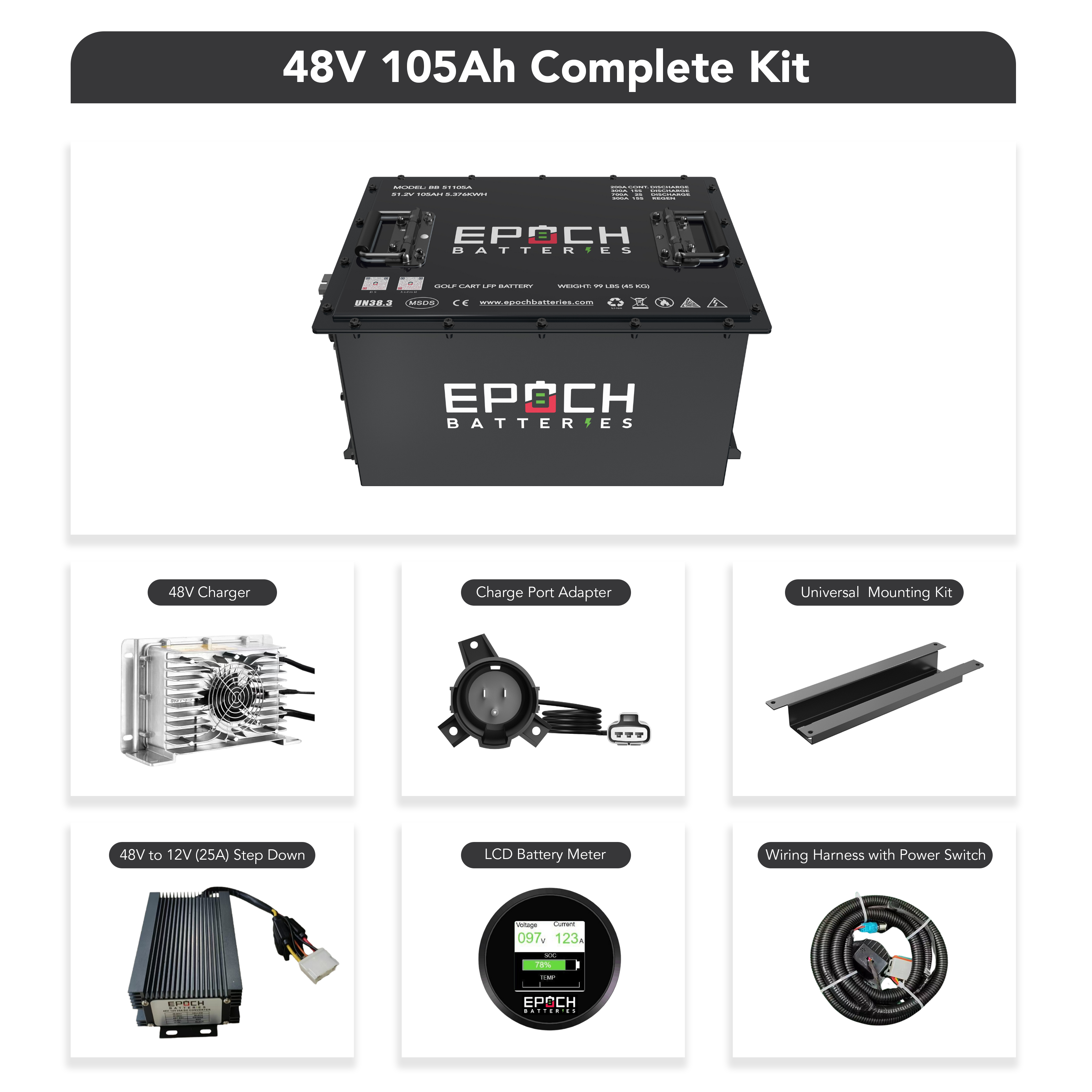

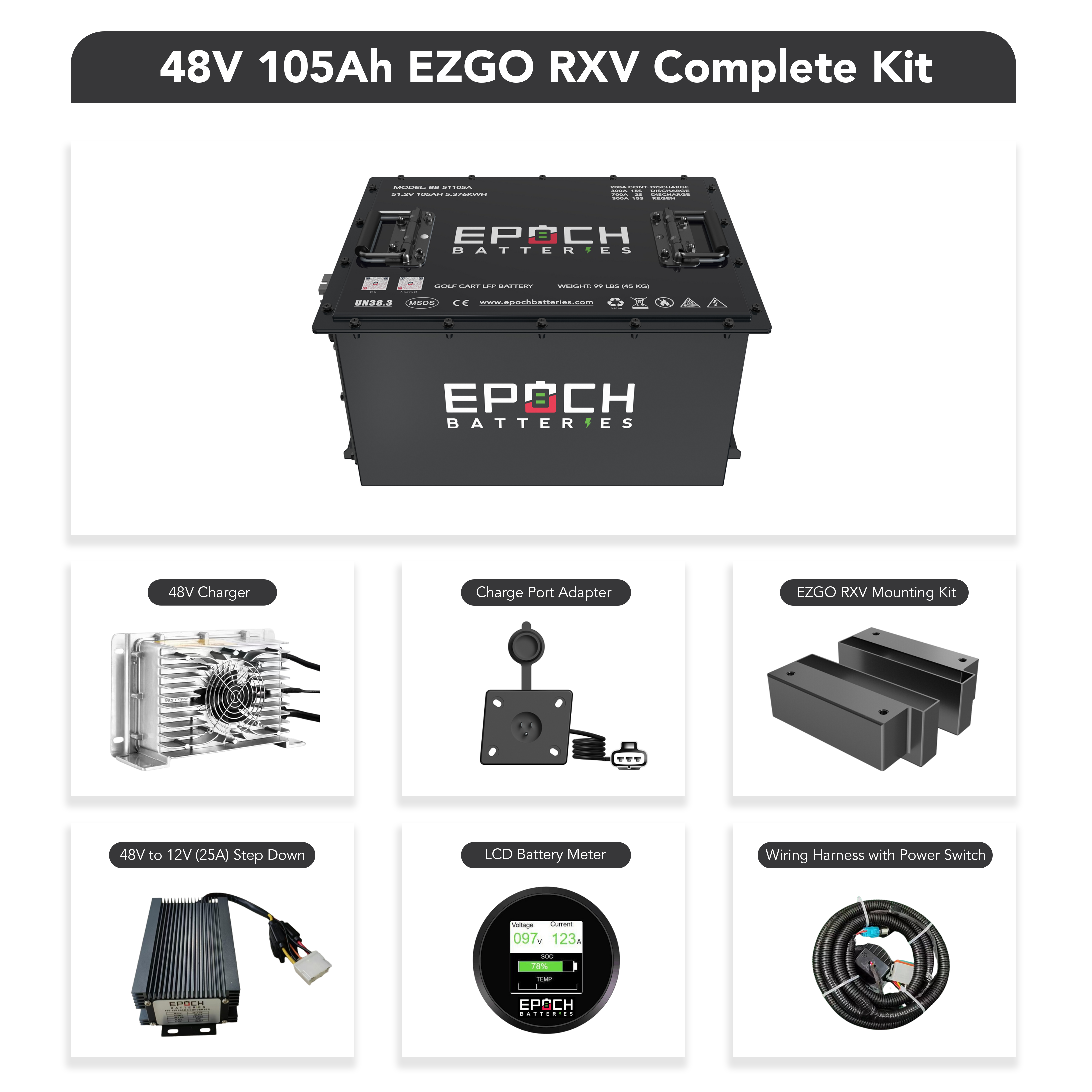

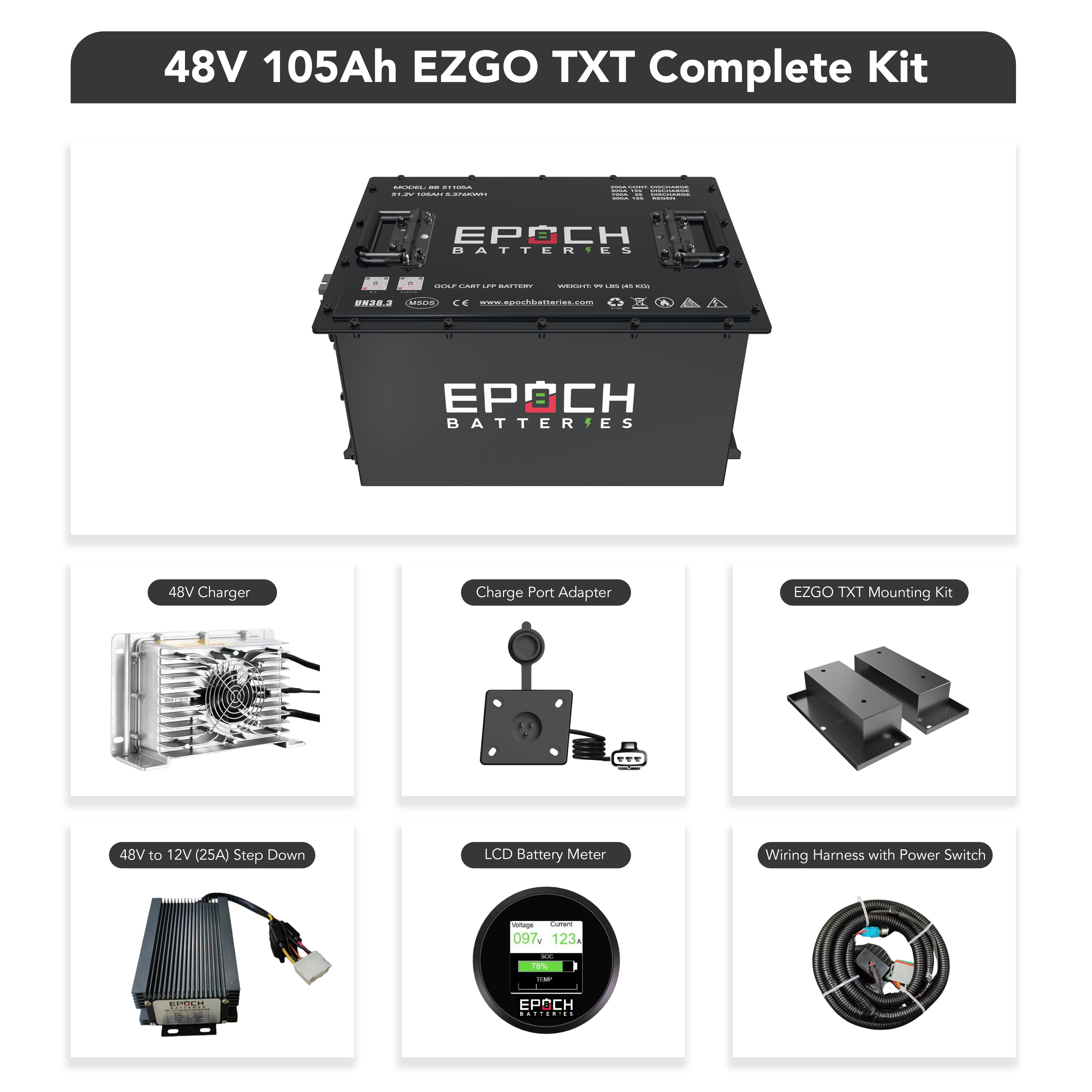

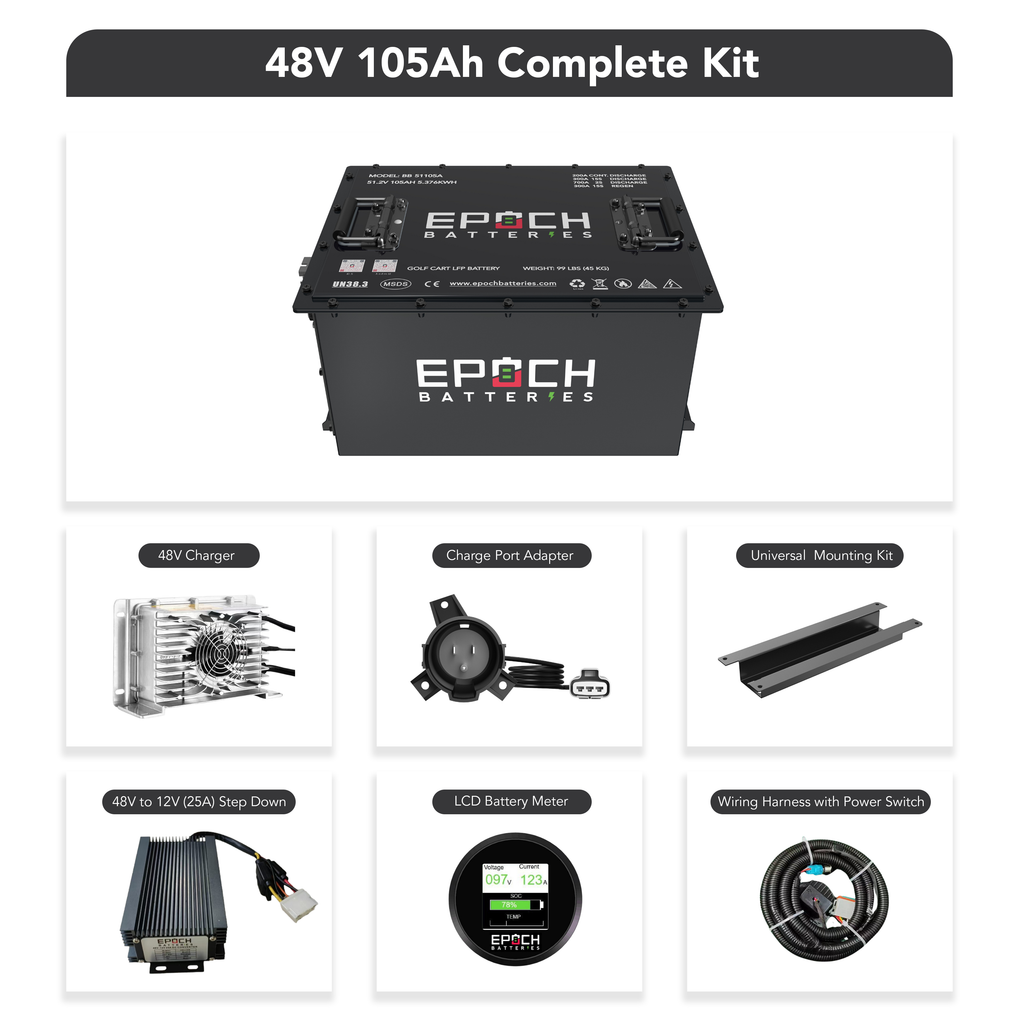

⚡ All-in-One Lithium Solution
-
Includes:
-
48V 15A Lithium Charger
-

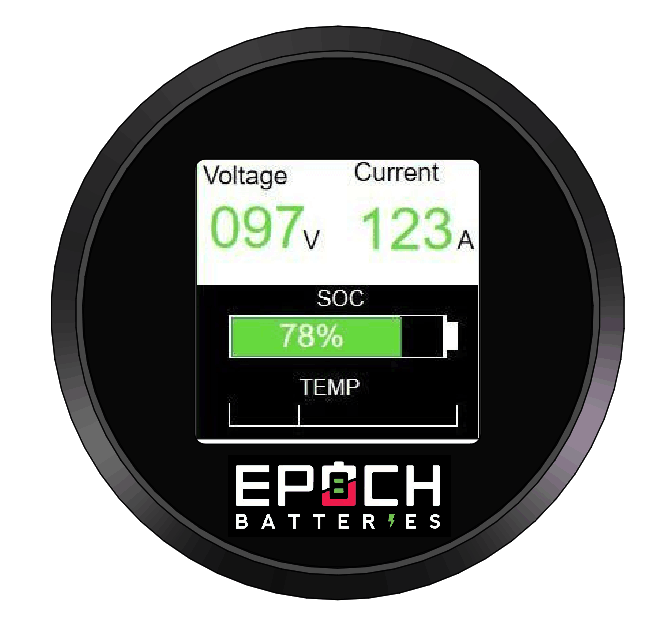

Battery Gauge
-
12V Converter
-
Cart-Specific Mounting Brackets
-
-
Bluetooth App (iOS & Android): Monitor status, charge level, and diagnostics
-
OTA Firmware Updates: Keep your system up to date wirelessly
🔋 High-Performance Output
-
Max Continuous Discharge: 200A
-
Peak Discharge: 300A @ 15s, 700A @ 2s
-
Max Continuous Charge: 100A
-
Peak Charge (Regen): 300A @ 15s
-
Cycle Life: 3,500+ cycles
-
Warranty: 11 Years
⚙️ Battery Architecture & Chemistry
-
Cell Configuration: 1P16S
-
Chemistry: LiFePO₄
-
Ah Capacity: 105Ah
-
Series / Parallel Support: Up to 2 in Parallel
-
Voltage: 51.2V nominal
-
Max Charge Voltage: 58.4V
-
Operating Voltage Range: 40V – 58.4V
🌡️ Thermal & Environmental Ratings
-
Charge Temp Range: 0°C to 55°C (32°F to 131°F)
-
Discharge Temp Range: –20°C to 60°C (–4°F to 140°F)
-
Storage Temp: 0°C to 35°C (32°F to 95°F) – Max 12 months
📏 Physical Specifications
| Dimension | Measurement |
|---|---|
| Length | 18.1″ |
| Width | 13.4″ |
| Height | 9.8″ |
| Weight | 99 lb |
✅ Ideal For
-
Full lithium upgrades in golf carts or UTVs
-
Replacing outdated AGM/lead-acid systems
-
Users needing fast charge, high discharge, and Bluetooth visibility
-
Systems requiring long life and rugged dependability
💡 Smart Power. Complete Control.
The Complete Lithium Conversion Kit delivers reliable 48V lithium power with integrated charging, app control, and everything you need for a seamless install—backed by 11 years of support.
Frequently Asked Questions
Yes. All cells we sell are guaranteed authentic, Grade A, and brand new. Not reclaimed, used, or rewrapped. We also prioritize fresh manufacturing dates, so you’re not receiving cells that have been sitting around for years.
Some sellers offer Grade B cells that can have inconsistent voltage, higher internal resistance, reduced performance, or other issues. You will never receive a Grade B, reclaimed, or used cell from us.
These are sold as bare cells (no welded tabs or leads) unless the listing explicitly states otherwise.
To make pack building easier, our cells are sorted and batched for matching internal resistance, voltage, and date code, so they arrive ready to be assembled into a pack.
U.S. orders ship from Atlanta, Georgia.
For international orders outside the USA, we may ship from a different fulfillment hub depending on the product’s manufacturing location, to ensure faster and more efficient delivery.
Shipments within the USA, delivery in 1–3 days (up to 5). Expedited shipping available. International shipping varies—contact us to inquire.
