SOK 12V 206Ah LiFePO4 Battery - Bluetooth - SK12V206

Sale price$1,029.00

Price:
Stock:
In stock

WE SHIP WORLDWIDE, PLEASE CONTACT US FOR A CUSTOM SHIPPING QUOTE.

7 Years Warranty,4000~8000 Cycles Life Span,Free  Maintenance.

FREE SHIPPING within the US

SEARCH "ABC-BMS" in the app store

Model:  SK12V206

Detachable Cover,Replaceable BMS or Cells.

Connect in series for 24V or 36V or 48V Battery Bank, or Connect in Parallel for Larger Capacity.

Built-in Smart Battery Management System.

Low Temperature Charging Cut-off.

High Temperature Charging or Discharging Cut-off.

Over Charging or Discharging Protection.

Over Current & Short Circuit Protection.

Battery Cells Auto Balance.

Charge Voltage:14.6V

Max Charge Current: 50 A

Max Discharge Current:100 A

Notice for connect in series: If you need connect batteries in series, they should be at the same state-of-charge (SOC)before they are connected.



Spec Information

Charge information:

Recommend charge current: 40A

Maximum charge current: 70A

Recommend charge voltage:14.4V ~14.6V

Maximum batteries in series: 4 PCs batteries.

Maximum batteries in parallel: 10 PCs batteries.



Discharge Information:

Maximum continuous discharge current: 100A

Peak discharge current: 200A(3 seconds)

Recommend low voltage disconnect: 11.2V

BMS discharge cut-off voltage: Around 10.4V

Reconnect Voltage:>11.6V

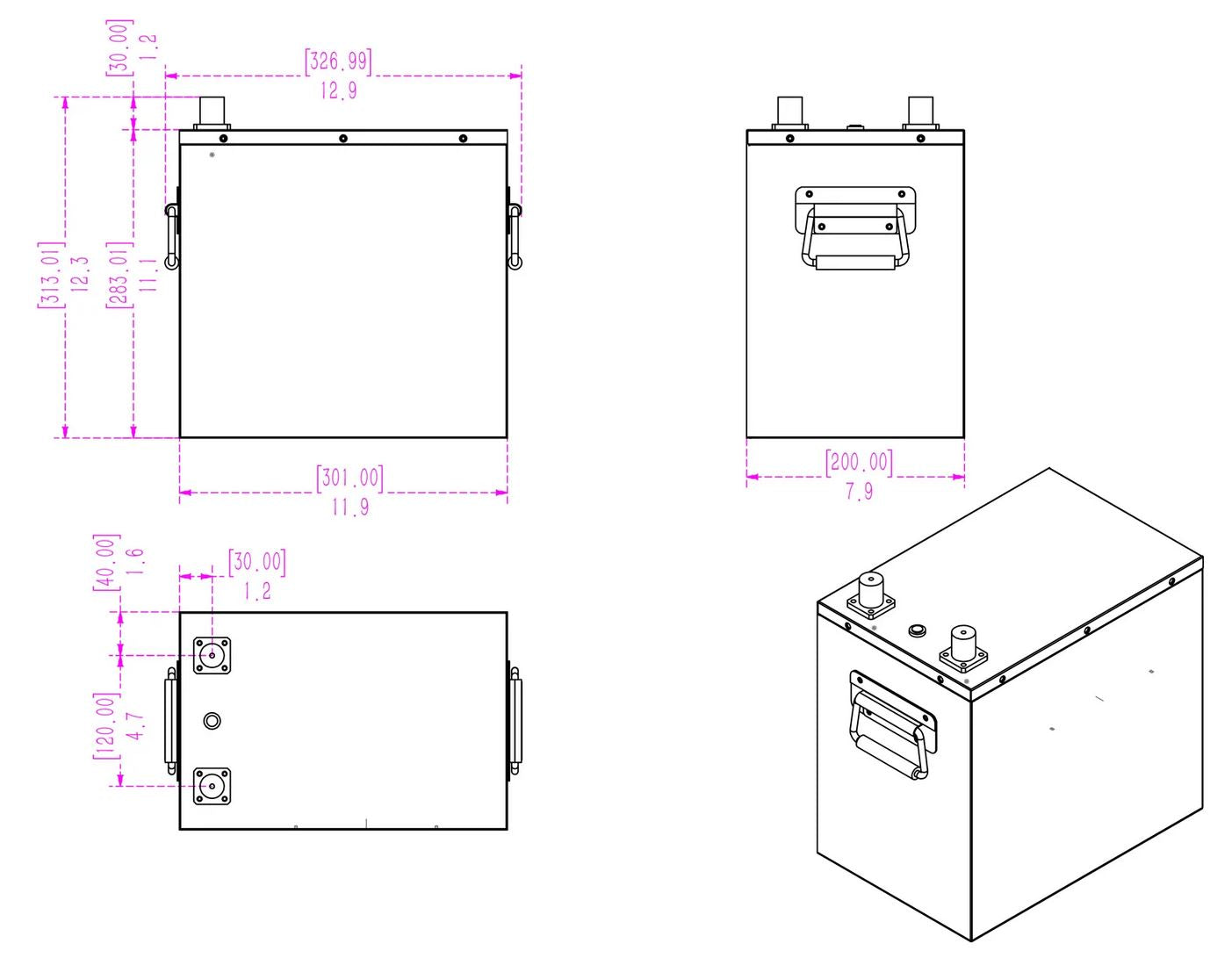

Size Information:

Terminal Type: M8, 5/16 lugs

Weight: 48 lbs.



Temperature Information:

Discharge temperature:-4°F~140°F

Charge temperature: 32°F~113°F

Recommend storage temperature:23°F~95°F



Certifications Information:

UL1973&IEC62619 for Battery cells
