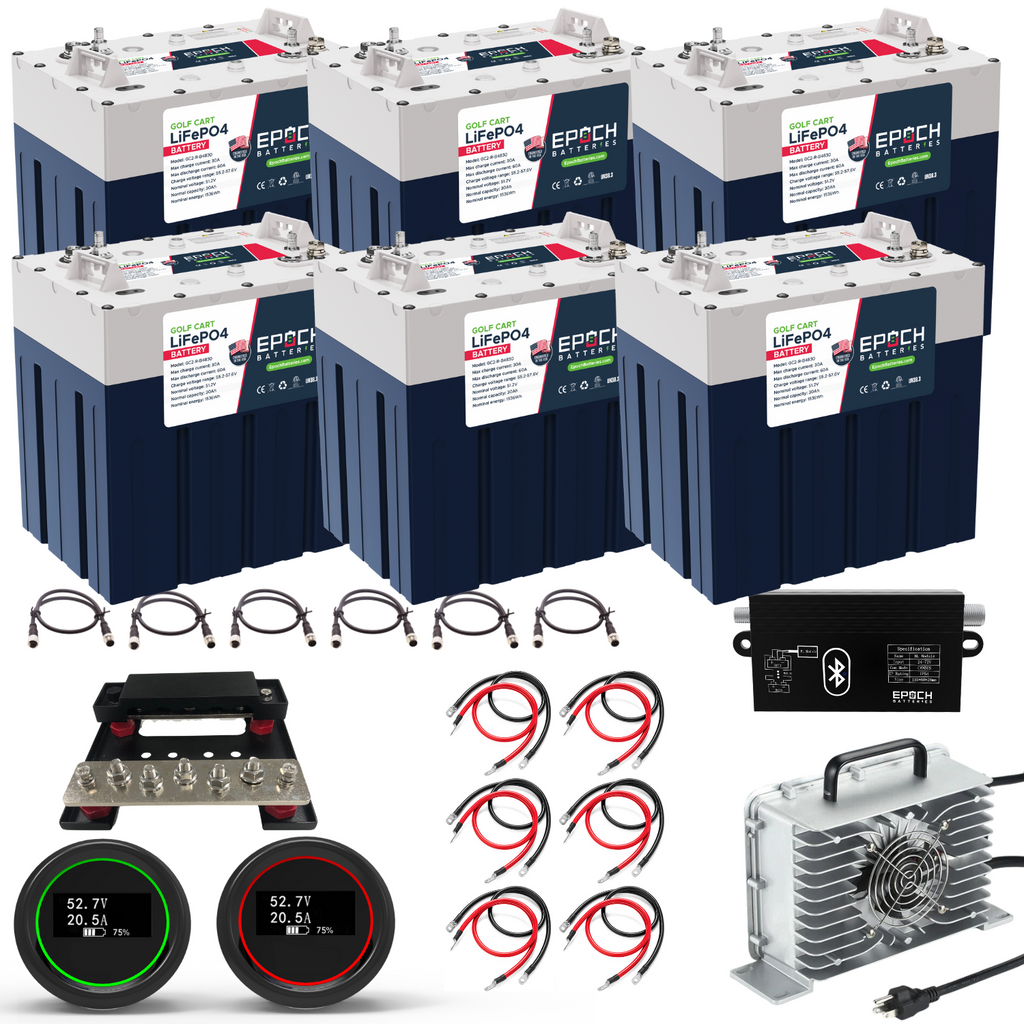

- LiFePO4 Chemistry - ULTIMATE NAVITAS KIT
- 180Ah Capacity (~85 miles runtime for standard golf cart)
- 360A Max Continuous Discharge (600A 10S Peak Discharge)
- 0 to 100% Charge in 8 hours with included 48V 22A Charger
- IP67 Rated, Dust and WATERPROOF
- CAN Bus Communication allows battery modules to work in sync
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- 4000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
DATA SHEET DOWNLOAD
|Max Charge Voltage:||57.6V|
|Operating Voltage Range:||40.0 - 57.6V|
|Ah Capacity:||180Ah (~85 miles runtime for standard golf cart)
|Max Continuous Discharge Amps:||360A|
|Max Discharge Peak Current Amps:||600A (10 Seconds)|
|Max Charge Current Amps:||30A|
|Charge Temp Range:||0°C (32°F) / 55°C (131°F)|
|Discharge Temp Range:||0°C (32°F) / 55°C (131°F)|
|Storage Temp:||0°C (32°F) / 30°C (86°F) (<6 Months)|
|Weight:||33 (LBS) - (per module x6)
|Depth Inches:||7.1 (per module x6)
|Width Inches:||10.2 (per module x6)
|Height Inches:||10.7 (per module x6)
|Safety Features:||BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature|
|Parallel:||Max (10) in Parallel = 300 Amp Hours|
At Epoch Batteries, we are excited to offer our customers top-of-the-line lithium iron phosphate (LiFePO4) batteries specifically designed for golf cart applications. Our batteries are engineered to meet the rigorous demands of the golf cart industry, providing exceptional performance, safety, and longevity.
Our LiFePO4 batteries boast outstanding safety features, including built-in protection circuits that prevent overcharging and over-discharging. These features greatly reduce the risk of fires or explosions, making them a reliable choice for golf cart applications where safety is paramount.
Our batteries are also known for their extended lifespan. With a cycle life of up to 4,000 cycles at 80% depth of discharge, they last significantly longer than traditional lead-acid batteries or other lithium-ion batteries. This longevity results in cost savings and reduced downtime for our customers.
Our LiFePO4 batteries are also ideal for golf cart applications due to their higher energy density, which enables them to store more energy in a smaller space. They are also lighter than lead-acid batteries, making them easier to handle and install in golf carts where space is limited.
Our batteries can also operate in a wider range of temperatures than lead-acid batteries, and they can be discharged more deeply without damage. This makes them more efficient for golf cart applications and suitable for use in different environments.
Our LiFePO4 batteries also feature fast charging times and a low self-discharge rate, allowing for more frequent use and longer storage times. With our comprehensive warranty, we stand behind the quality of our batteries and are dedicated to providing the best possible products and services to our customers in the golf cart industry.
