Epoch Batteries - Lithium Golf Cart Kits
Made in the USA - 11 Year Warranty
Module Design - Same exact size as a Trojan T-105
Huge Power Capabilities - Never get stuck on hills with a BMS safety cooldown.
Bluetooth App - iOS + Android
Description
BigBattery Eagle Installation Guide - PDF

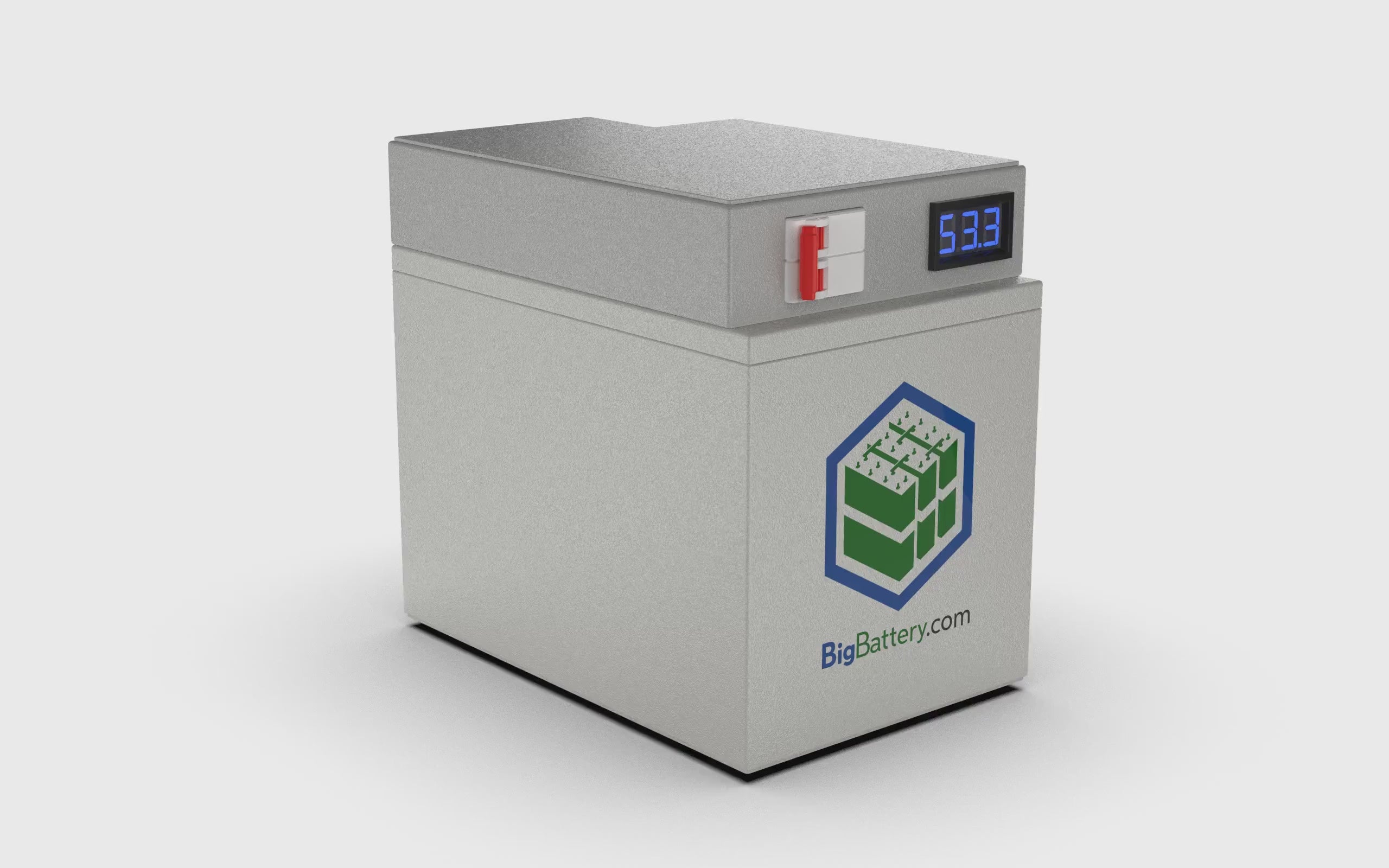

UNIVERSAL DESIGN - FITS ALL 48V GOLF CARTS
- 10 Year Warranty
- Universal Design, Complete system for a 48V golf cart
- Compatible with ALL EZ-GO, Club Car and Yamaha golf carts

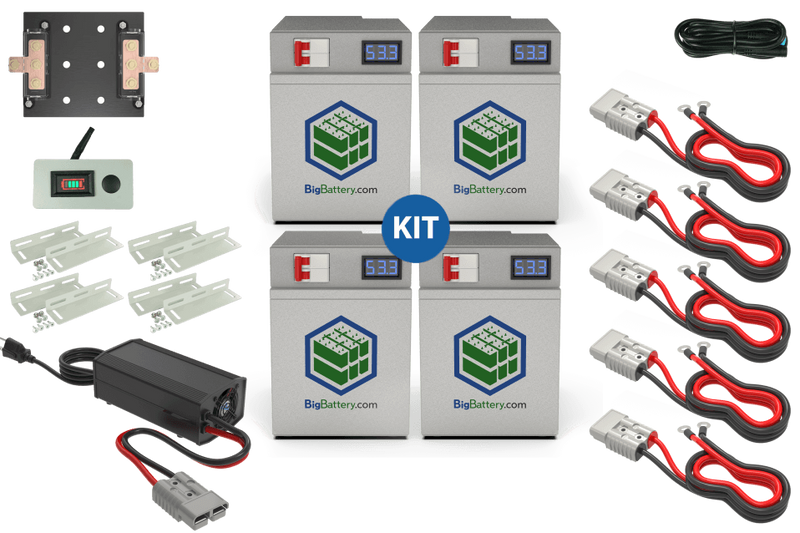

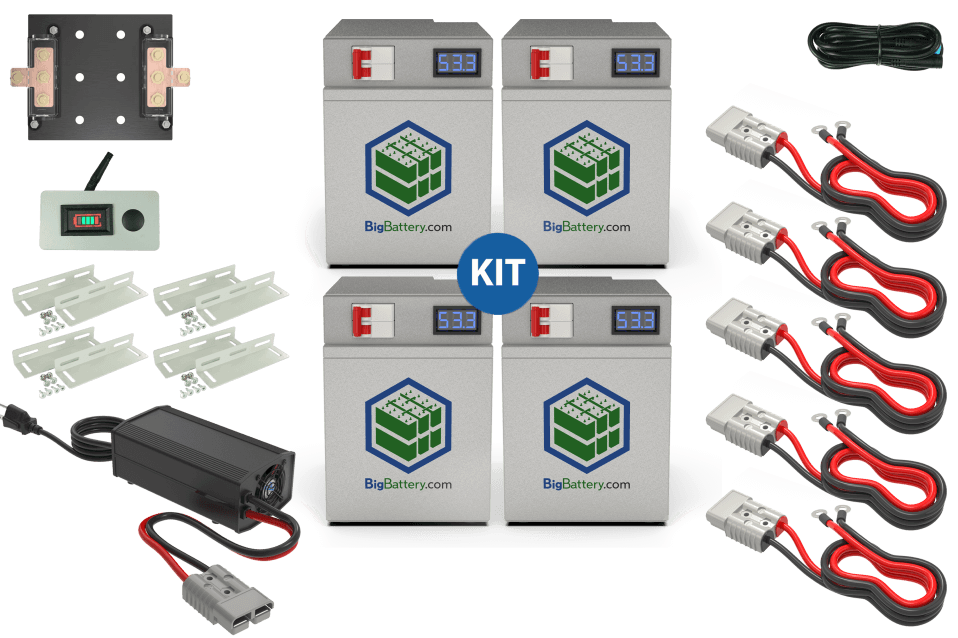

What's Included with this Kit:

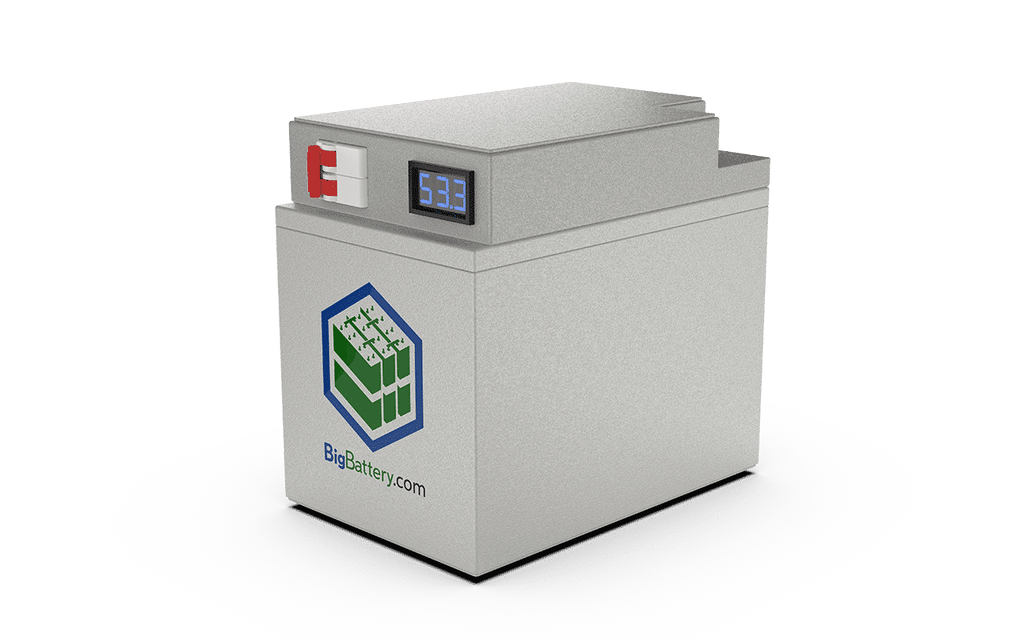

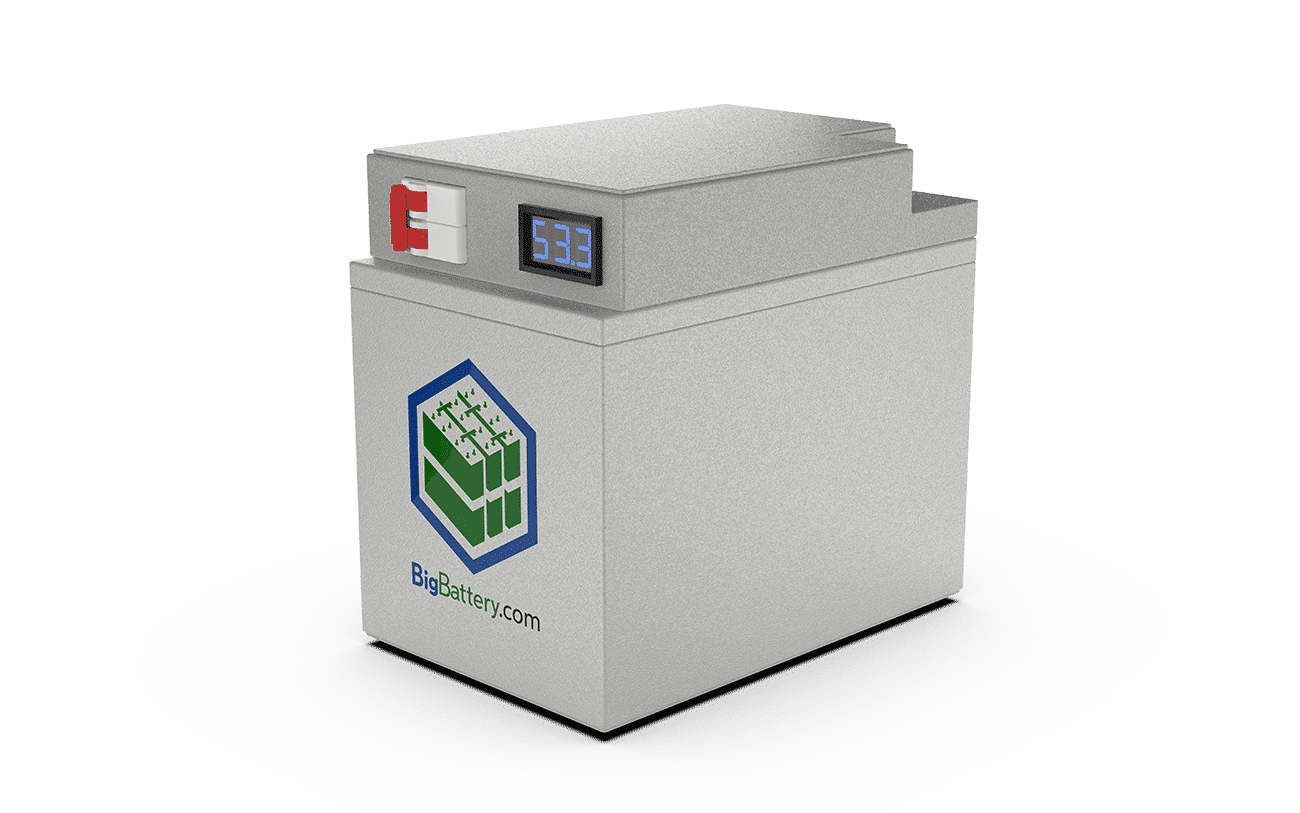

- (4) - 48V EAGLE 30Ah Batteries - Total 120Ah

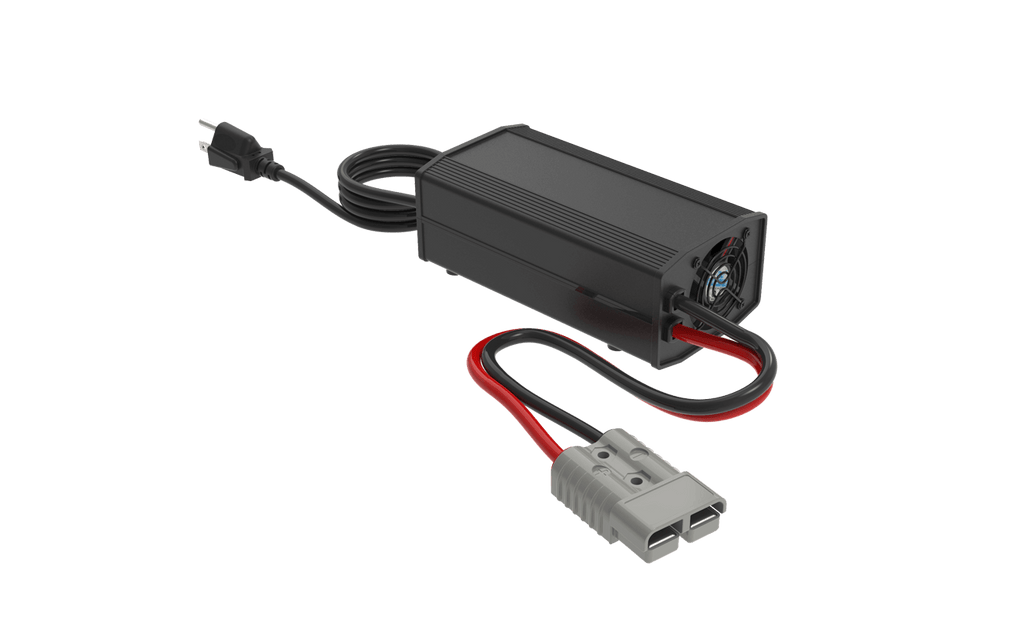

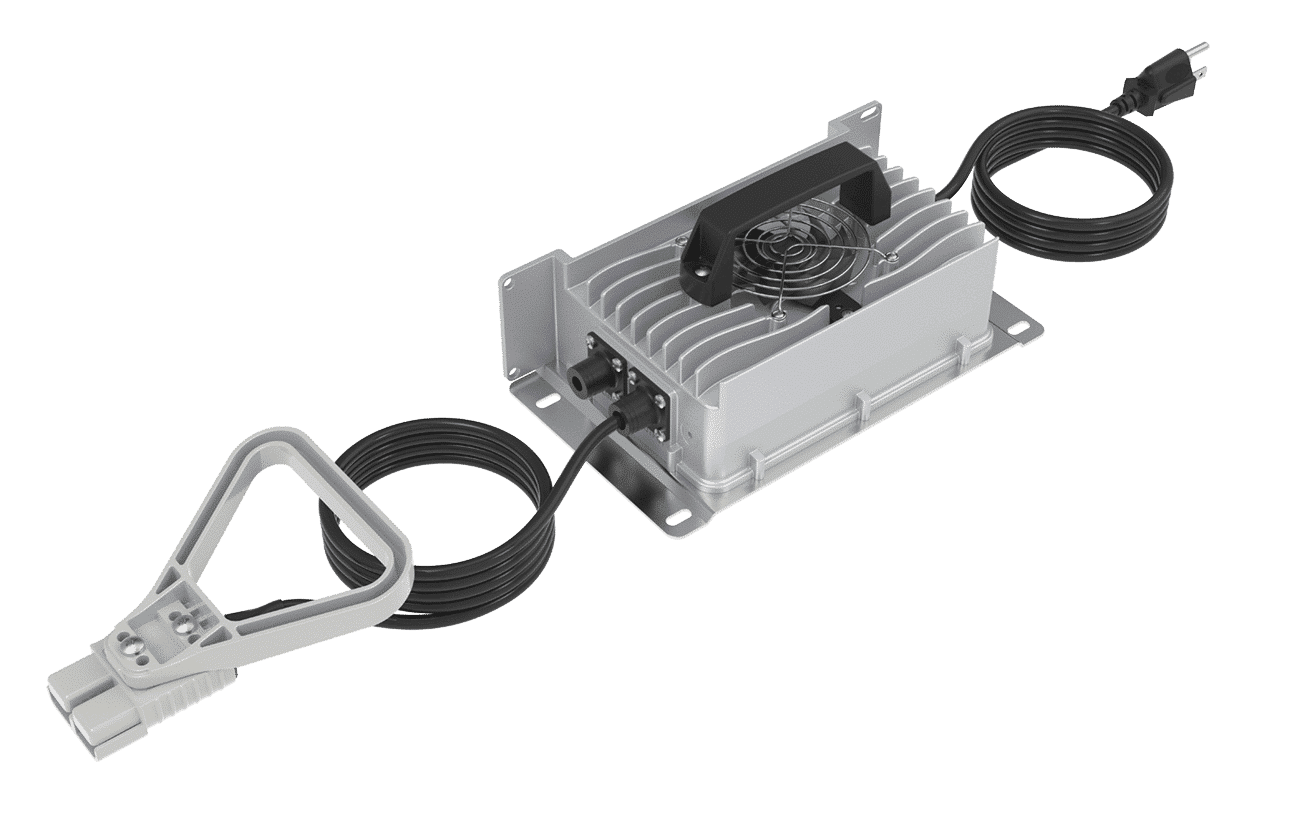

- 48V Battery Charger

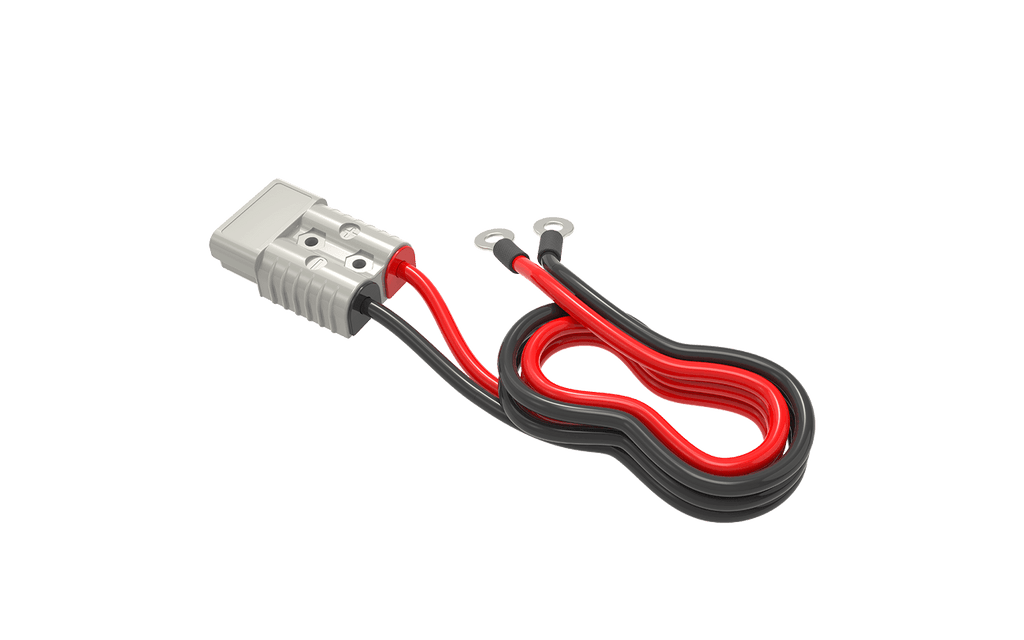

- (4) BB175 to Ring Terminals Cable

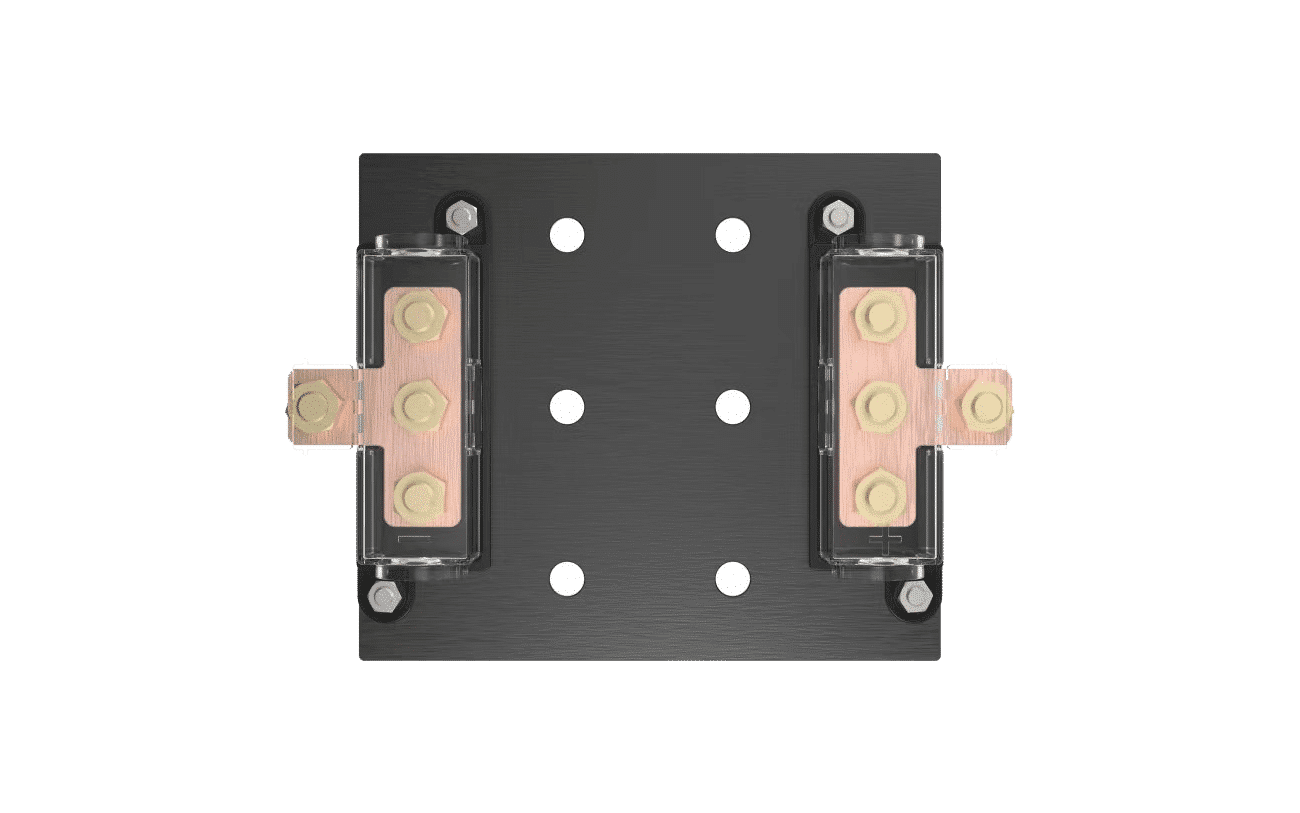

- Parallel Busbar

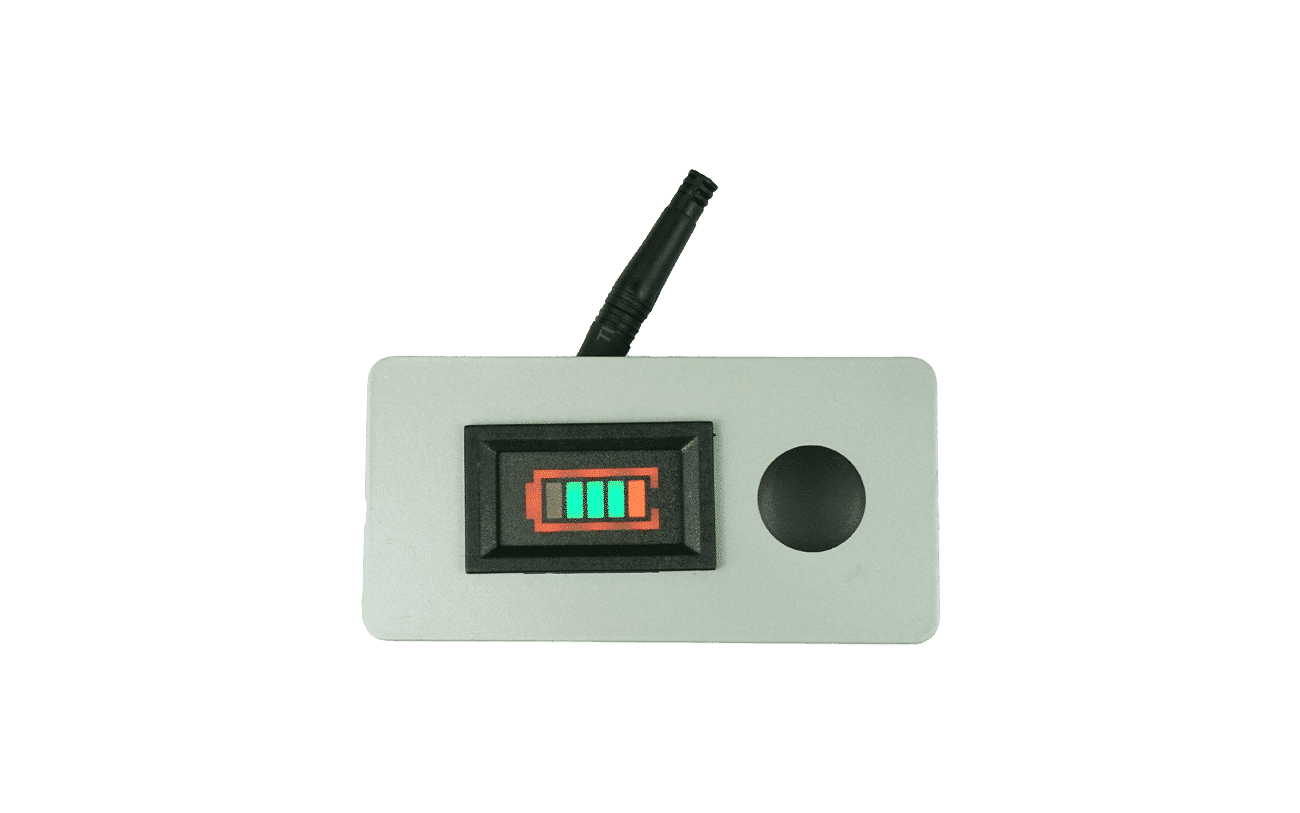

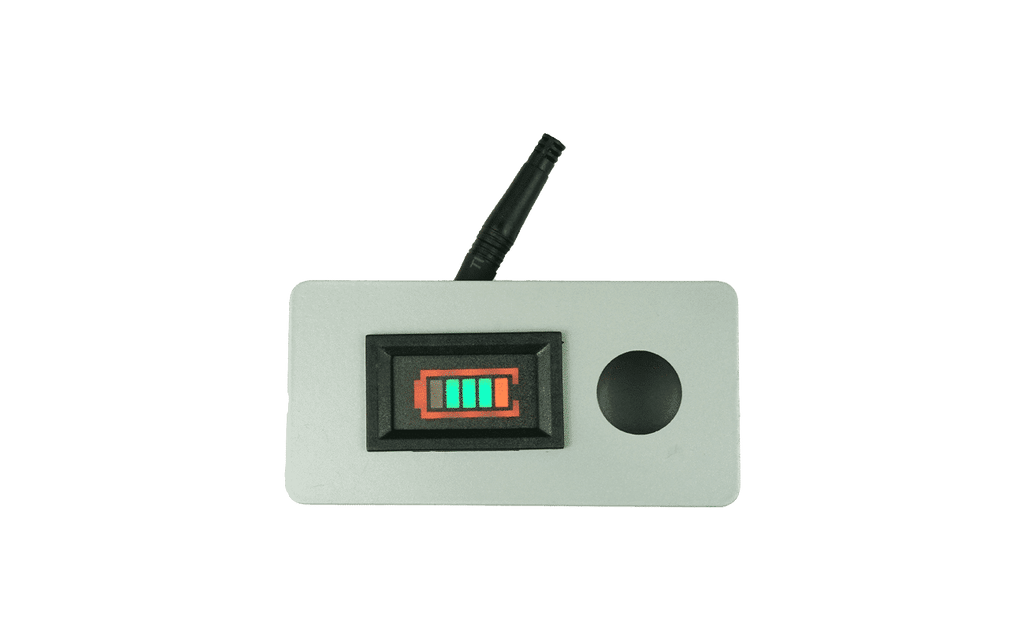

- Digital Capacity Meter

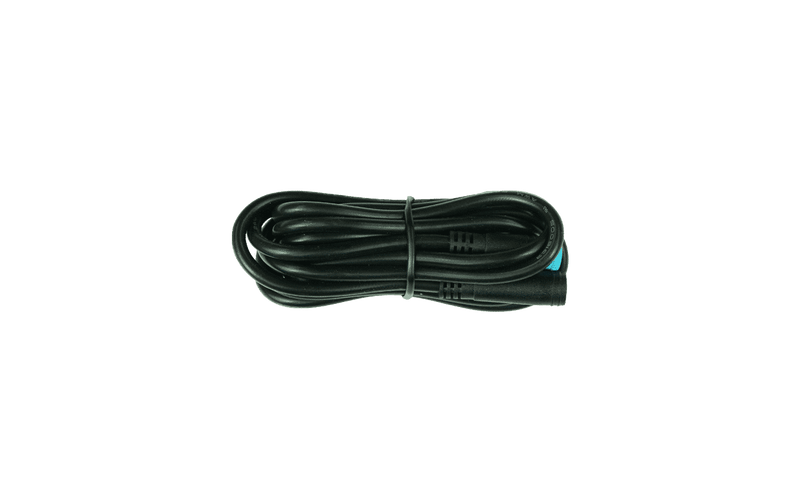

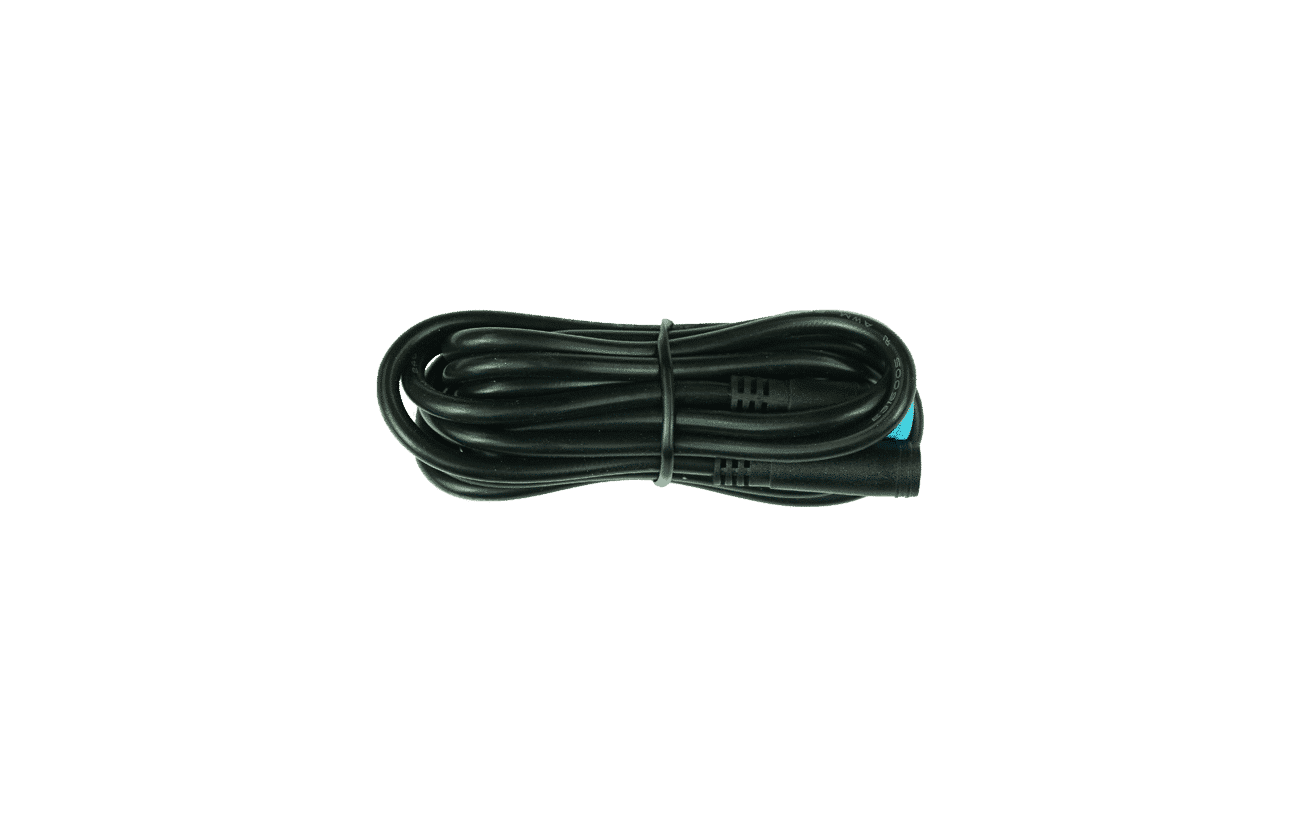

- Meter Extension Cable 6ft

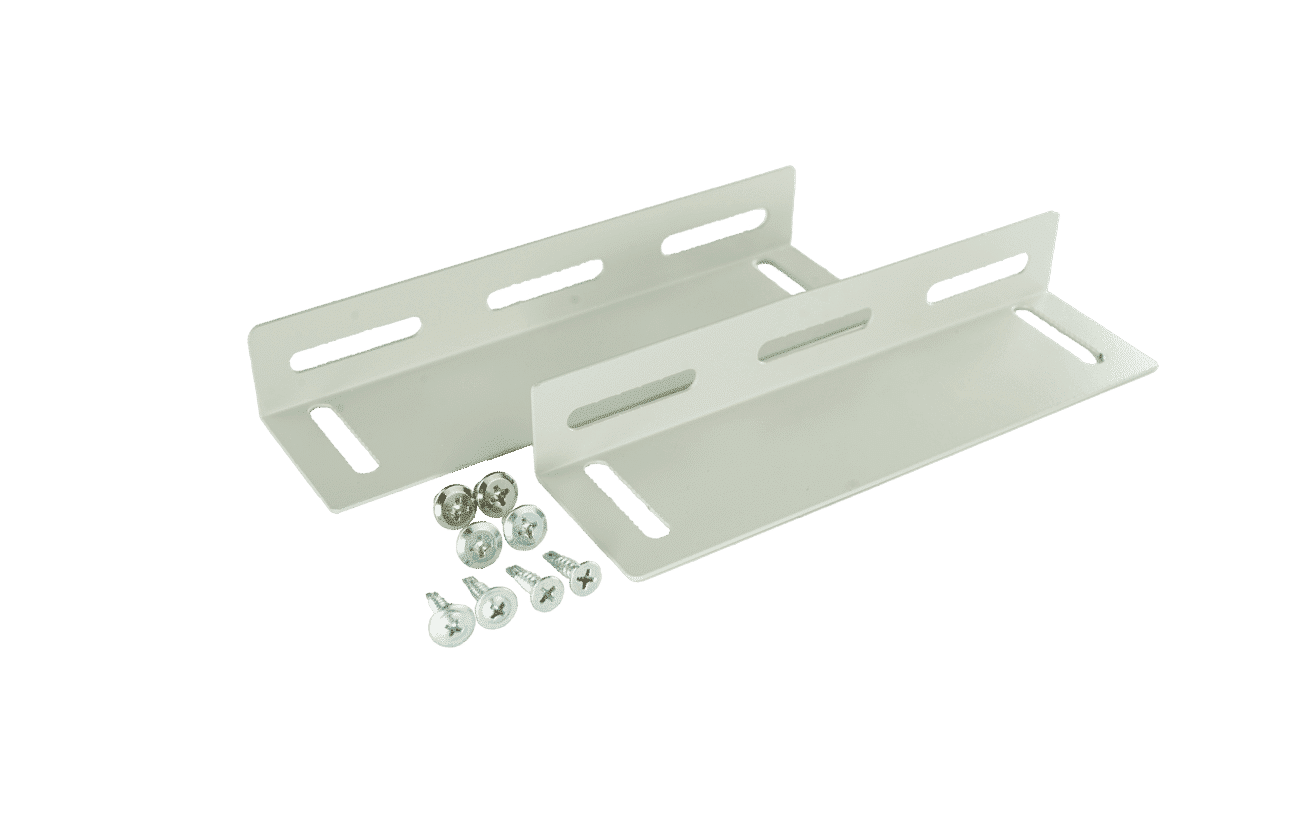

- EAGL Mounting Bracket + Mounting Screws
Specifications:
| Manufacturer | BigBattery |
| Model | 48V EAGL |
| Chemistry |
LiFePO4 |
| Configuration |
16S |
| Nominal Capacity | 120Ah |
| Continuous Discharge | 320A |
| Maximum Discharge | 720A (6 s) |
| Nominal Voltage | 48.0V |
| Max Voltage | 58.8V |
| Min Voltage | 43.0V |
| Protected | Yes |
| Rechargeable | Yes |
| Approx. Dimensions (L*W*H) |
10.25 x 7.1 x 9.25 IN per battery (x4) |
| Approx. Weight | 152lbs |
| Country of Origin | USA |
| Cycle Life |
4,000+ (10 Year Warranty) |
COMPARE 48V LITHIUM GOLF CART BATTERIES
Capacity = Runtime. There can be many different factors that determine how many miles you will get from your battery per charge.
For a standard 2 seat cart, you can expect the following mileage: 50Ah ~ 20 miles, 100Ah ~ 40 miles, 150Ah ~ 60 miles
*Cart weight and cruising speed as well as terrain can contribute to a lower mileage output per charge.
Max Continuous Discharge = The maximum power your battery can output continuously for the duration of the cycle.
100A is plenty of power for a standard model cart.
If you have a heavily modified or larger 6 seat cart (motor controller rated 240 Amps or higher), you may want to choose a battery with a higher continuous discharge. If you are unsure, please contact us prior to purchase!
*Attempting to run your battery at higher than rated discharge will cause the battery management system to go into timeout to prevent damage to the battery cells. This will cause it to shutdown completely for a short period of time.
Max Pulse Discharge = For those instances when you might need a little extra power like going up a steep incline.
